3-4

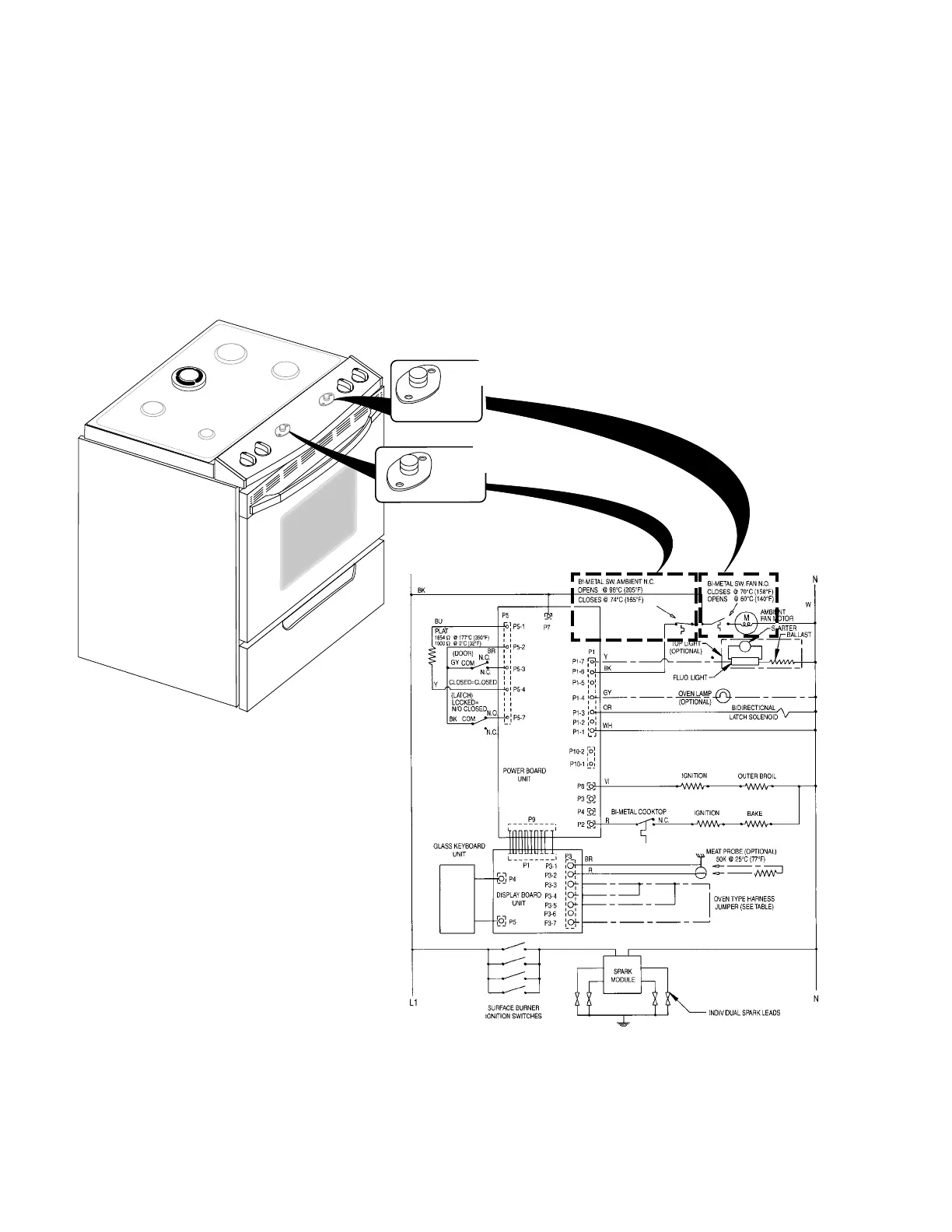

THE BIMETAL SWITCHES
• Cooling Fan Bimetal Switch (N.O.)
(Inset #2) —This switch is located un-
der the right side of the control console.
It turns the cooling fan on if the console
temperature reaches 70˚C/158˚F.
There are two bimetal switches on the gas
range. The switches operate as follows:
• Ambient Bimetal Switch (N.C.)
(Inset #1) —This switch is located un-
der the left side of the control console.
It opens the L1 circuit to the electronic
control board if the console temperature
reaches 96˚C/205˚F.
AMBIENT
BIMETAL SWITCH
COOLING
FAN BIMETAL
SWITCH
Inset #2
Inset #1
