4-26
5. To remove a hinge:
a) Remove the two bottom screws from
the hinge you are servicing. NOTE: If
you are removing both hinges, remove
the steam deflector. Note how the de-
flector is mounted between the two
hinges.
b) Remove the bracket and retainer screw
from the top of the hinge.
4. To remove the door handle:
a) Lift the air vent and handle off the door.

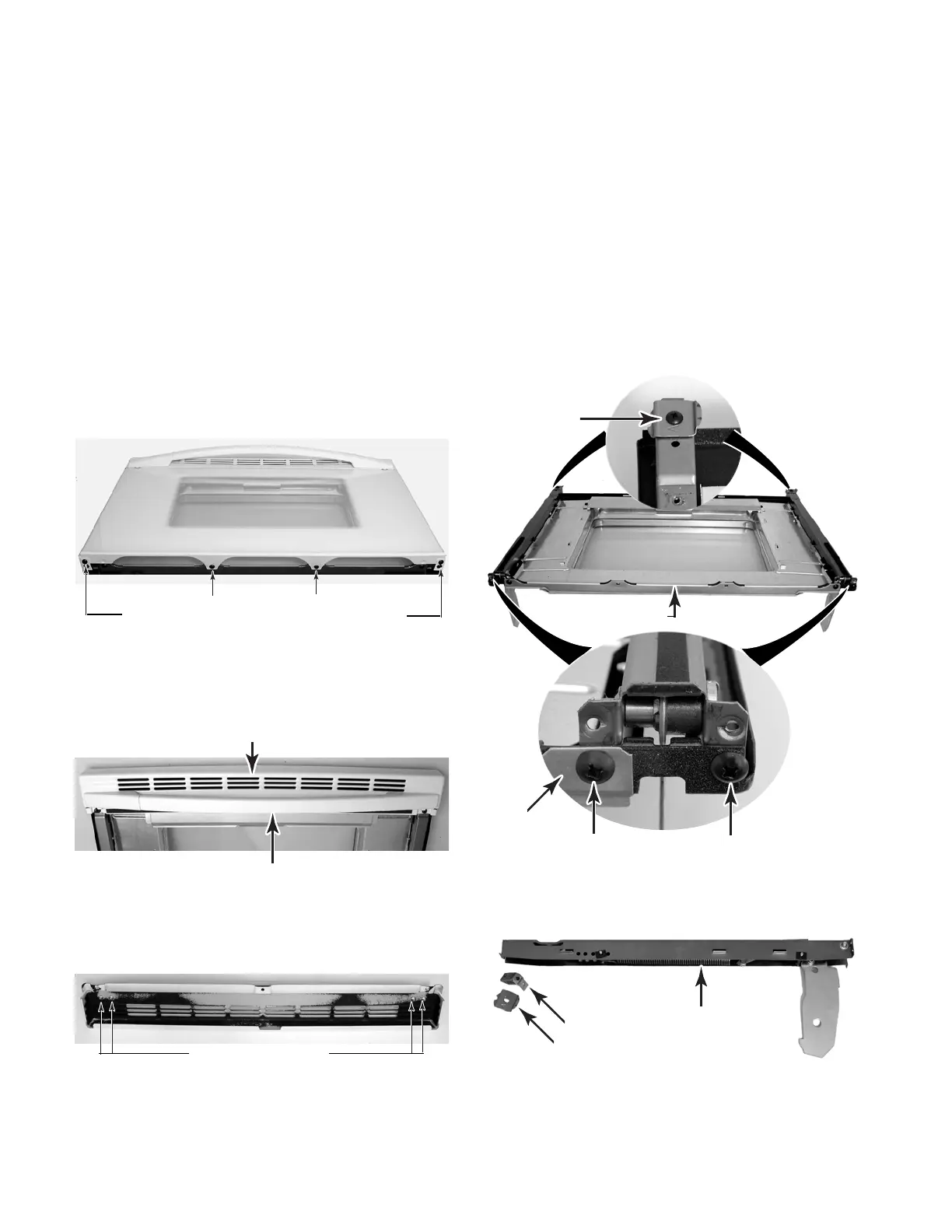

REMOVING THE DECORATIVE GLASS, THE OVEN DOOR
HANDLE, THE HINGES, AND THE OVEN DOOR GLASS
1. Remove the oven door from the range
(see page 4-28 for the procedure).
2. Place the oven door on a padded work
surface with the decorative glass and
handle facing up and the bottom edge
facing the front.
3. To remove the decorative glass:
a) Remove the four decorative glass re-
tainer screws, and remove the retainer
and two side trims.
b) Lift the decorative glass off the door.
Decorative Glass Retainer Screws (4)
b) Remove the four handle screws (two
on each side) from the air vent and
remove the handle.
Air Vent
Handle
Handle Screws (4)
c) Remove the bracket, retainer, and hinge
from the door.
Bottom Hinge Screws
Bracket &
Retainer
Screw
Retainer
Bracket
Hinge
Steam
Deflector
Steam Deflector
To Next Page
