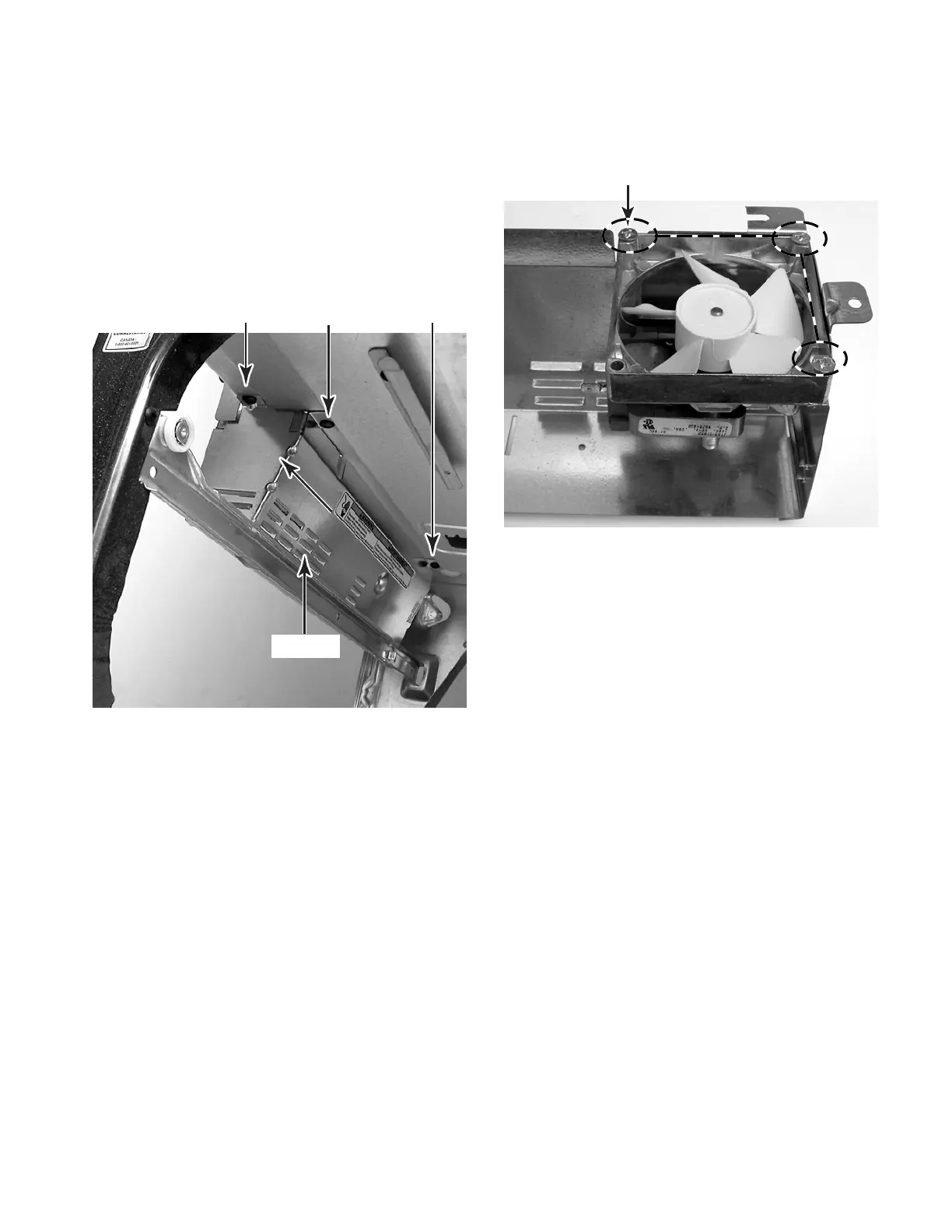

e) Remove the three cooling fan motor
mounting screws and remove the mo-
tor from the housing.
Remove This Screw
Housing
Loosen These Screws
Cooling Fan Motor Screws
b) Remove the storage drawer from the
front of the unit.
c) From the storage drawer area, remove
the front housing screw and loosen the
other two screws.
d) Slide two of the three motor housing
brackets out from under the two screws,
and the other bracket out of the slot in
the chassis, and remove the housing.
