KitchenAid KGRT607 - Page 43

4-13

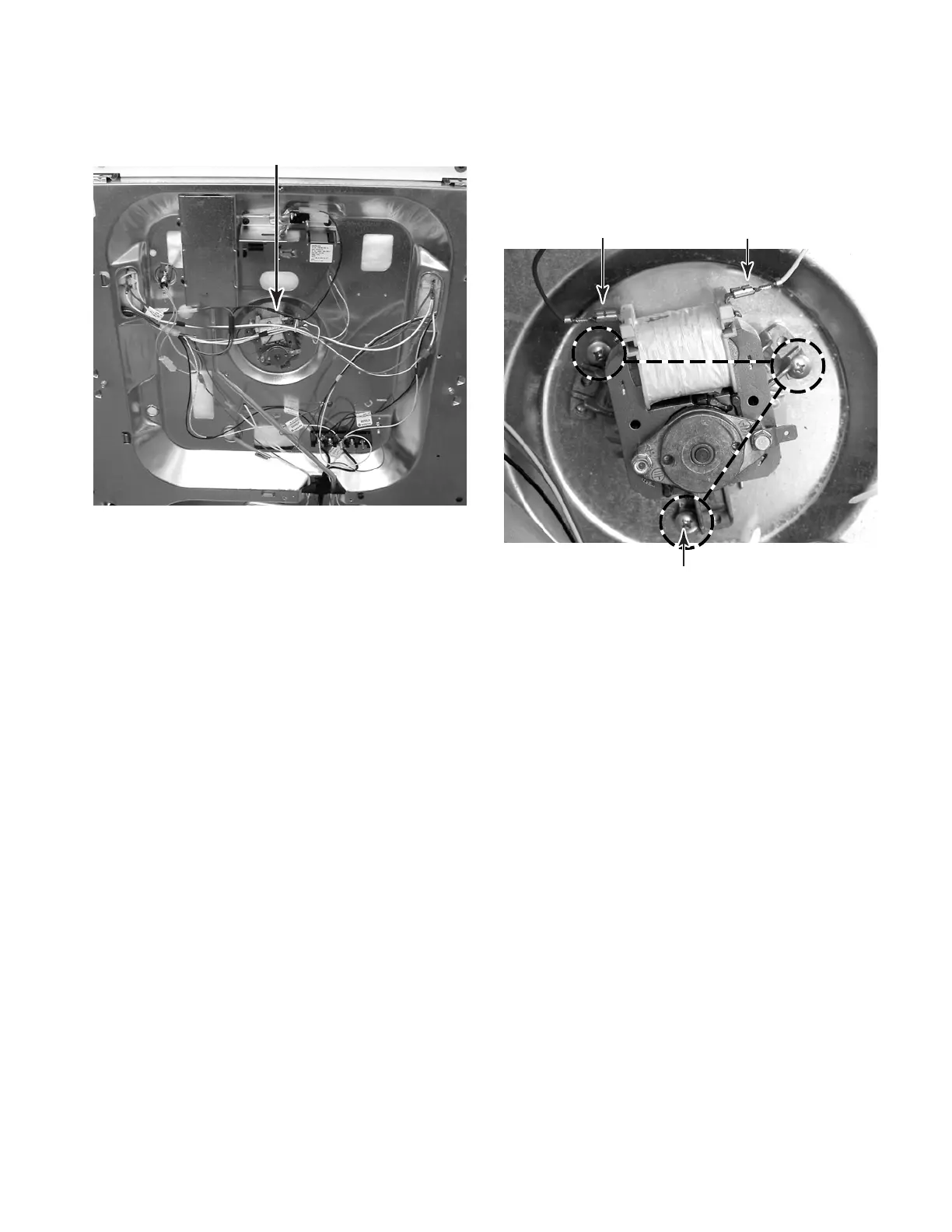

7. Disconnect the wires from the convection
fan motor terminals.
8. Remove the three screws from the con-
vection fan motor and remove it from the
rear of the unit..
3 Screws
6. Remove the rear panel (see page 4-5 for
the procedure).
Convection Fan Motor
Convection Fan Motor Wires
