KITO ER2M Disassembly And Reassembly Guide

16
• Do not disassemble the friction clutch or friction clutch with mechanical brake.
Failure to follow this instruction may result in death or severe injury due to a falling load.


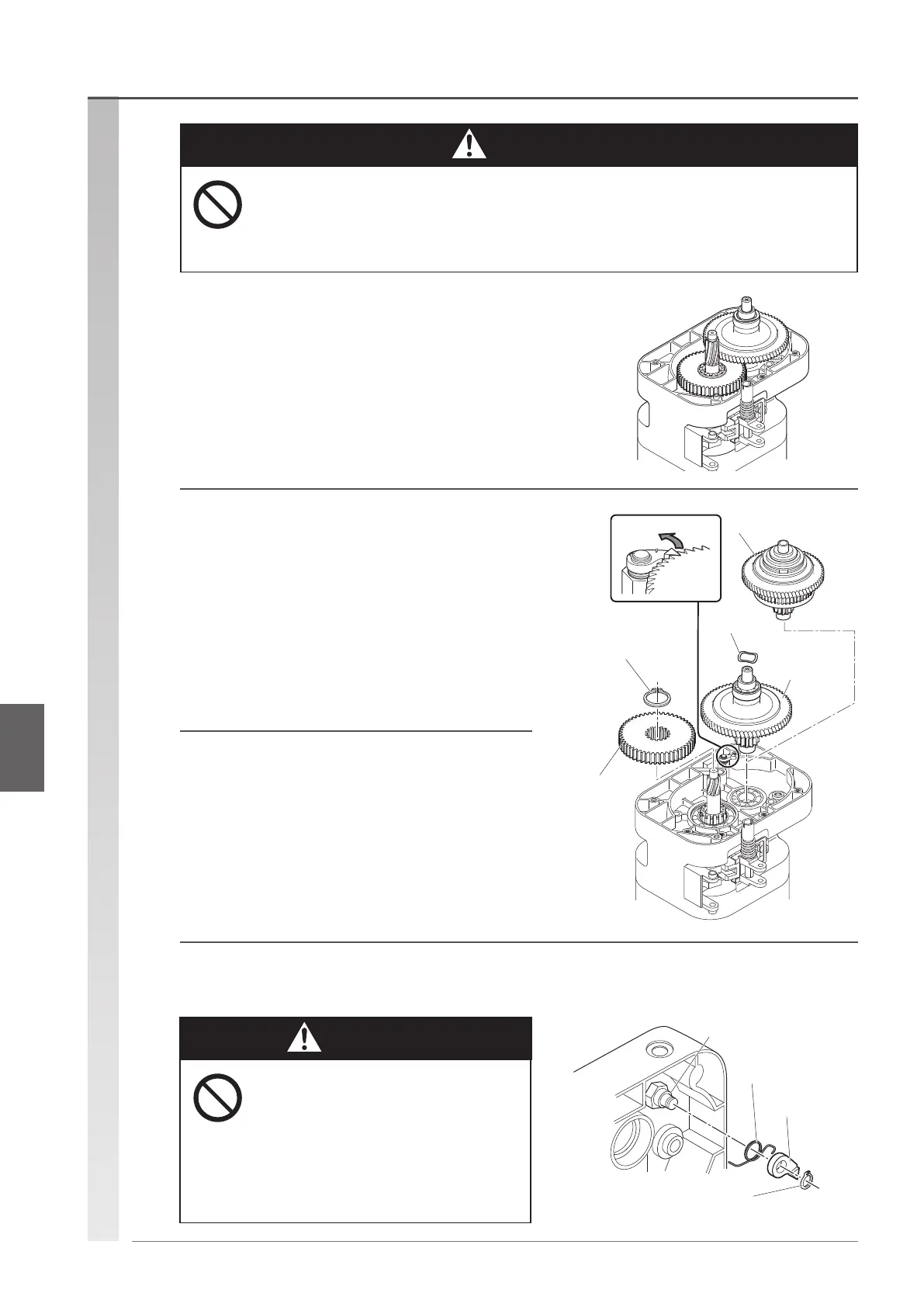

Double reduction
•
The gear conguration as shown to the right is the double
reduction specication. Perform disassembly in the
following steps.
(4) Remove the wave washer and friction clutch
from the body.
•
For the friction clutch with mechanical brake specication,
release the pawl from the ratchet disc to remove the
friction clutch with mechanical brake.
(There is no wave washer.)
Friction clutch
Wave washer
Snap ring
Load gear
Release
Friction clutch with
mechanical brake
(5) Remove the snap ring, and remove the load
gear.

Friction clutch with mechanical brake specication (option)
(6) Remove the snap ring, and remove the pawl spring and pawl from the pawl shaft.
Pawl shaft
Pawl spring
Snap ring
Pawl
• The pawl shaft is fixed to the body with
pawl shaft washer and screw lock. Do
not remove it.
Failure to follow this instruction may
cause the pawl shaft to come off and
result in death or severe injury due to a
dropped load.
Disassembly procedure (continued)
Prohibited
Prohibited
Disassembly procedureDisassembling the gear parts
Danger
Danger
