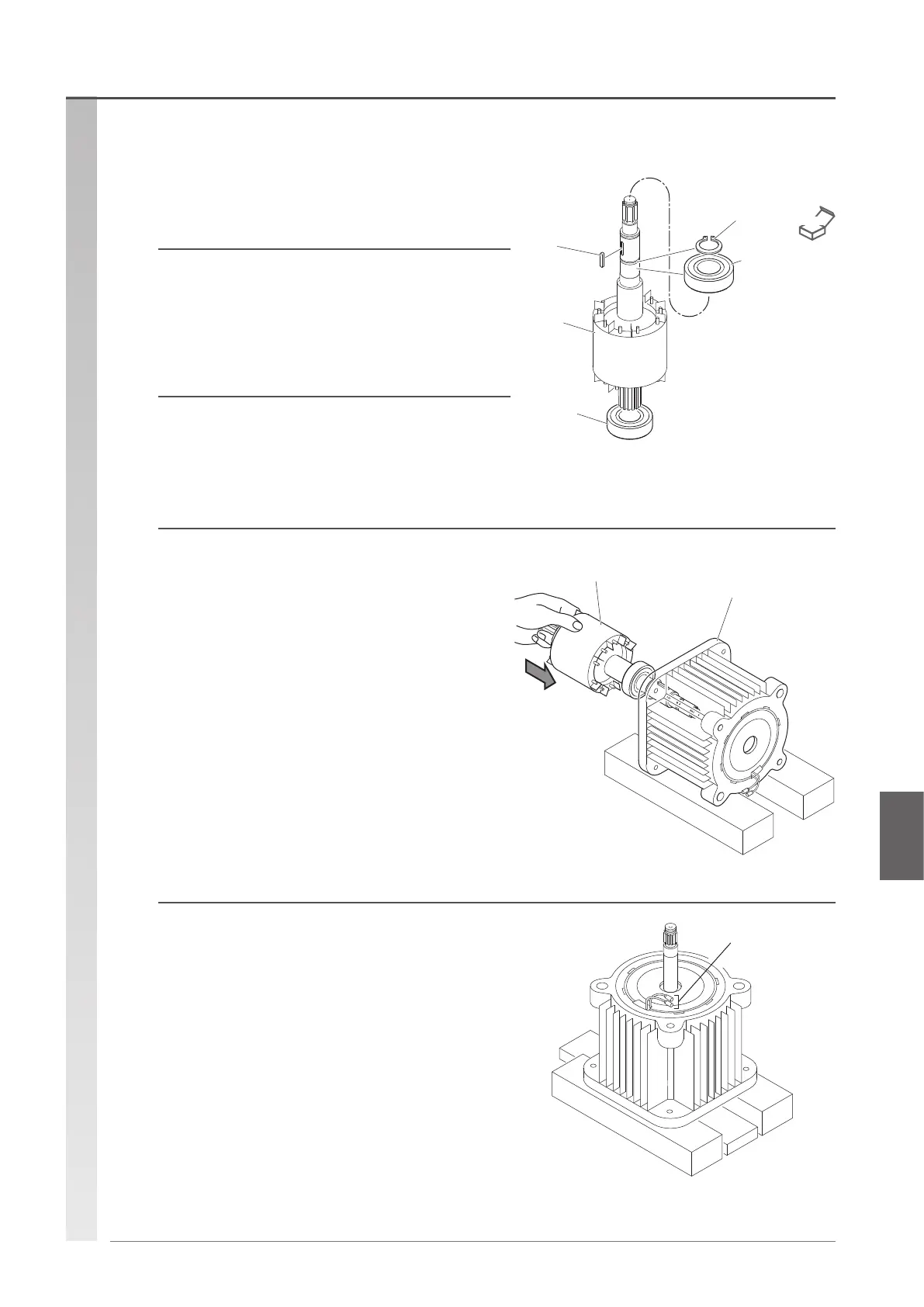

Assembling the motor and electromagnetic brake
2
(1) Press-tthebearingsat2locationsonthe
motor shaft.
(3) Install the key to the motor shaft.
•
Install it fully into the key slot.
(4) Insert the rotor (including the motor shaft) to
the stator.
•
Insert it from the tip of the key installation side of the motor
shaft, and insert the bearing to the housing inside the
stator.
•
When inserting the rotor, be careful not to scratch the
stator winding.
(2) Install a Snap ring between the key groove
and Bearing.
•
Install it so that the key slot and snap ring opening are in
the opposite sides.
•
Some models do not require any Snap rings.
Bearing
(For rotor)
Bearing
(For rotor)
Rotor
Key
(For hub
driving)
Snap ring
NEW
Rotor
(Insert it gently.)
Stator
(Be careful so that the rotor
does not interfere with internal
winding.)
(5) Mount the backing plate on the bottom of
the motor shaft for supporting the rotor, and
make the motor frame upright.
•
Draw the 2 lead wires for braking out from the stator upper
opening.
Brake lead wire
Assembling the motor and electromagnetic brake
Reassembly procedure
(To be continued)
