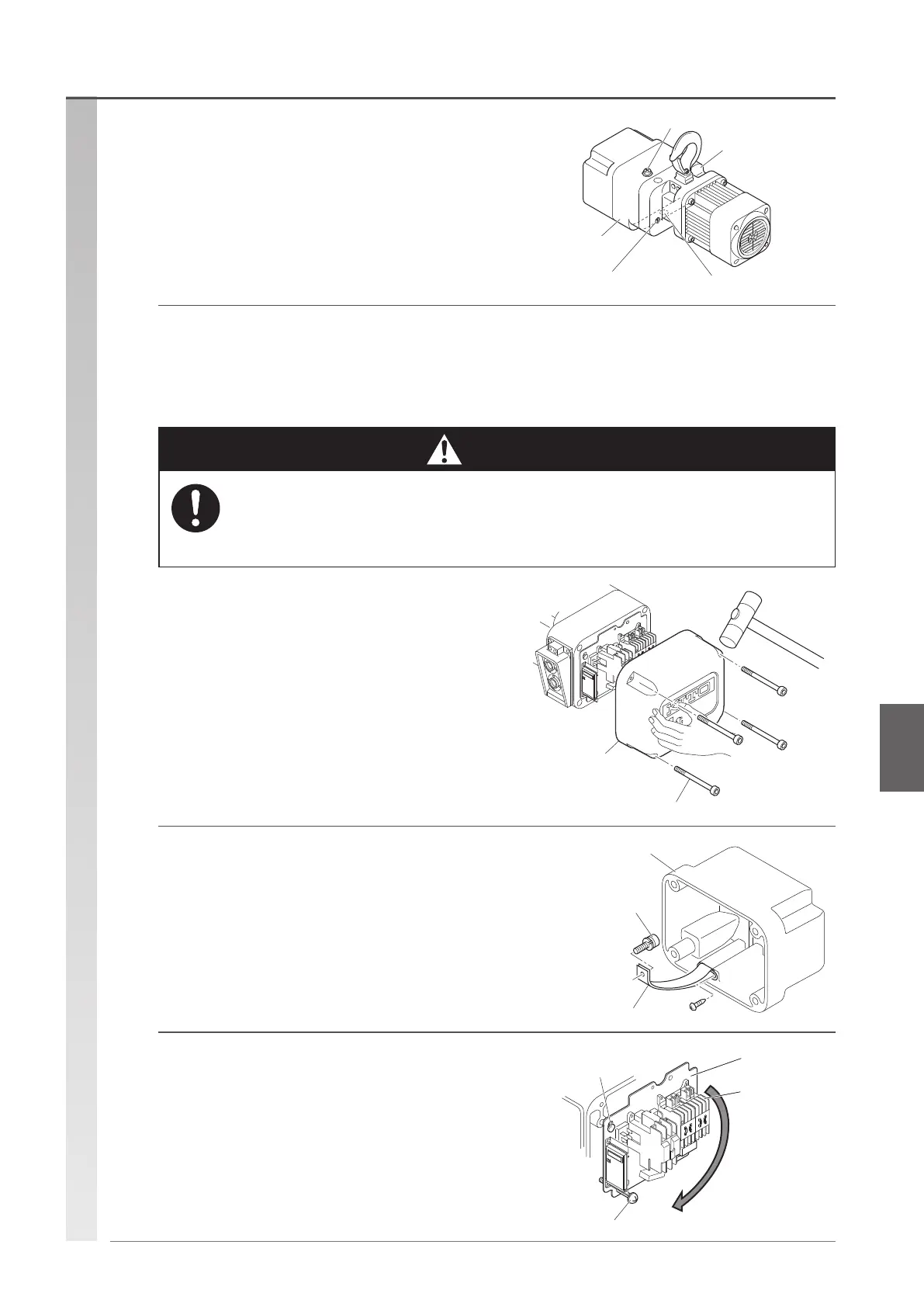

(3) When disassembling the gear part, remove
the oil plug (for waste oil hole) and plug
packing from the bottom of the gear case,
and then remove gear oil.
•
Check stain and viscosity of the removed oil.
•
If any metal powder is discovered, perform a careful
inspection suspecting abnormal wear of the gear or clutch.
Body
Oil plug
(for waste oil hole)
Oil plug
(for oil check window)
Gear case
Oil plug B (for oilhole)
Removing the controller cover
2
(1) Loosen the 4 socket bolts and open the
controller cover.
•
If it is difcult to open, hammer the cover side gently with a
plastic hammer, as shown to the right.
(2) Remove the socket bolt (gear case side)
securing the cover belt, and remove the
controller cover from the gear case.
•
The controller cover can be removed with the cover belt
attached.
(3) Remove the lead wire and connector
between the panel plate and main body,
and remove the panel plate.
•
Loosen the 3 setscrews, and turn the panel plate a little
according to the shape of the fulcrum pin to remove it.
•
Make a note of the locations of the lead wire connections
that will be referred to upon reassembly.
• When opening the controller cover, support it with your hand and open it slowly and carefully.
Failure to follow this instruction may cause the controller cover to hit the internal electrical
components, resulting in damage.
Remove the lead
wire in advance.
Plate screw
Fulcrum pin
Panel plate
Controller cover
Socket bolt
(gear case side)
Cover belt
Socket bolt
Controller cover
(To be continued)
Disassembly procedure Removing the controller cover

Single speed type / Dual speed pole change type
Mandatory
Caution
