KITO ER2M Disassembly And Reassembly Guide

22

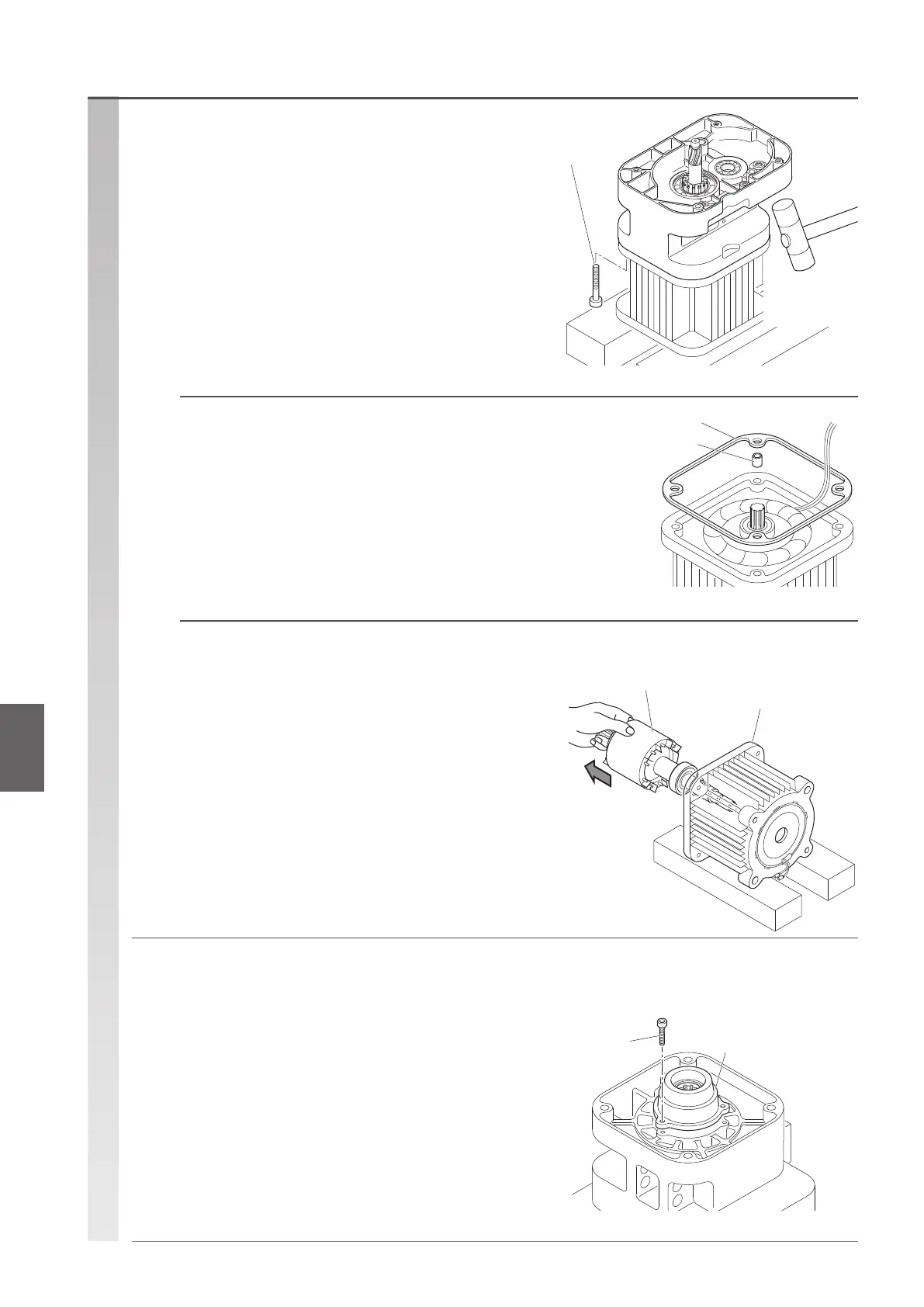

(12) Remove the rotor from the stator.
•
Be careful not to scratch the stator inner circumference
and rotor outer circumference.
Disassembling the body part
7
(1) Remove the 3 socket bolts from the body.
Socket
Bolt
Bearing holder
Rotor
(Remove it gently.)
Stator
(Be careful so that the rotor
does not interfere with
internal winding.)
Disassembly procedure (continued)
(11) Remove Packing M.
•
Be careful not to scratch the motor junction face.
•
Remove the set pin.
Packing M
Set pins (two locations)
Another one exists
in the opposite side,
on the diagonal line.
(10) Remove the 4 socket bolts. Hammer the
stator gently with a plastic hammer to
remove it from the body.
•
Turn it over so that the stator is facing down and the body
is facing up.
•
Use a wooden block for easier operation.
•
Handle it carefully not to damage the motor lead wire.
Loosen socket
bolts (x4).
Hammer gently
with a plastic
hammer.
Disassembly procedureDisassembling the body part
