KITO ER2M Disassembly And Reassembly Guide

21

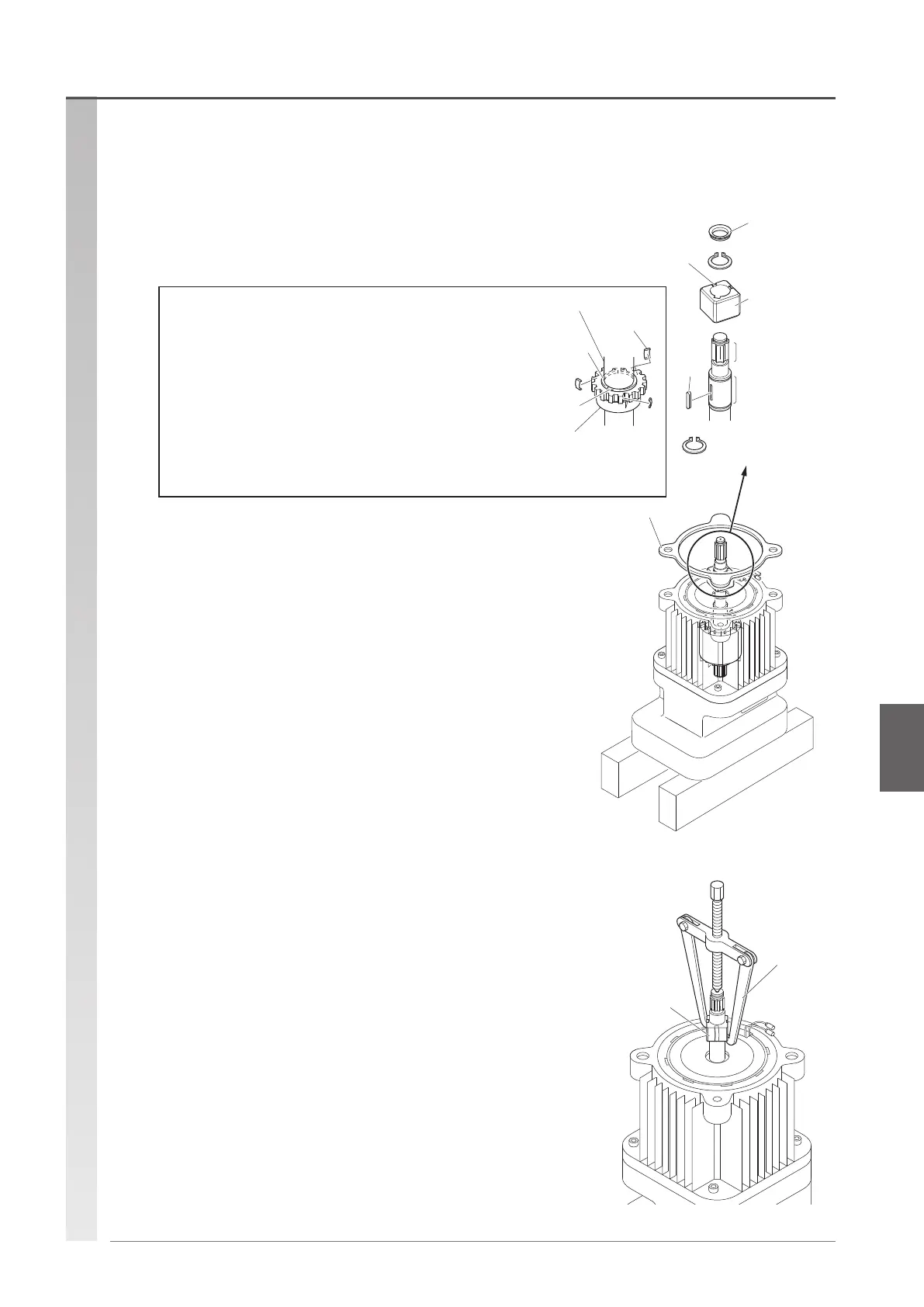

(9) Remove the V ring, snap ring, Packing B,
and hub.
•
Be careful not to scratch the motor junction face.
•
Some models don't have the snap ring (for hub bottom).
•
Remove the hub using a puller.
•
Spline hub is also available.
Hub
Puller
Hub removal
Hub
Snap ring for hub
bottom
Springs (x2)
Fan installation
area
Hub installation
area
Snap ring for
hub top
Key
V ring
Packing B
Hub spring
Motor shaft
Snap ring
Spline hub
Key slot
Disassembly procedure Disassembling the motor and electromagnetic brake

Spline hub
•
First, remove the 3 hub springs installed to the spline
hub and store them.
(To be continued)
