18

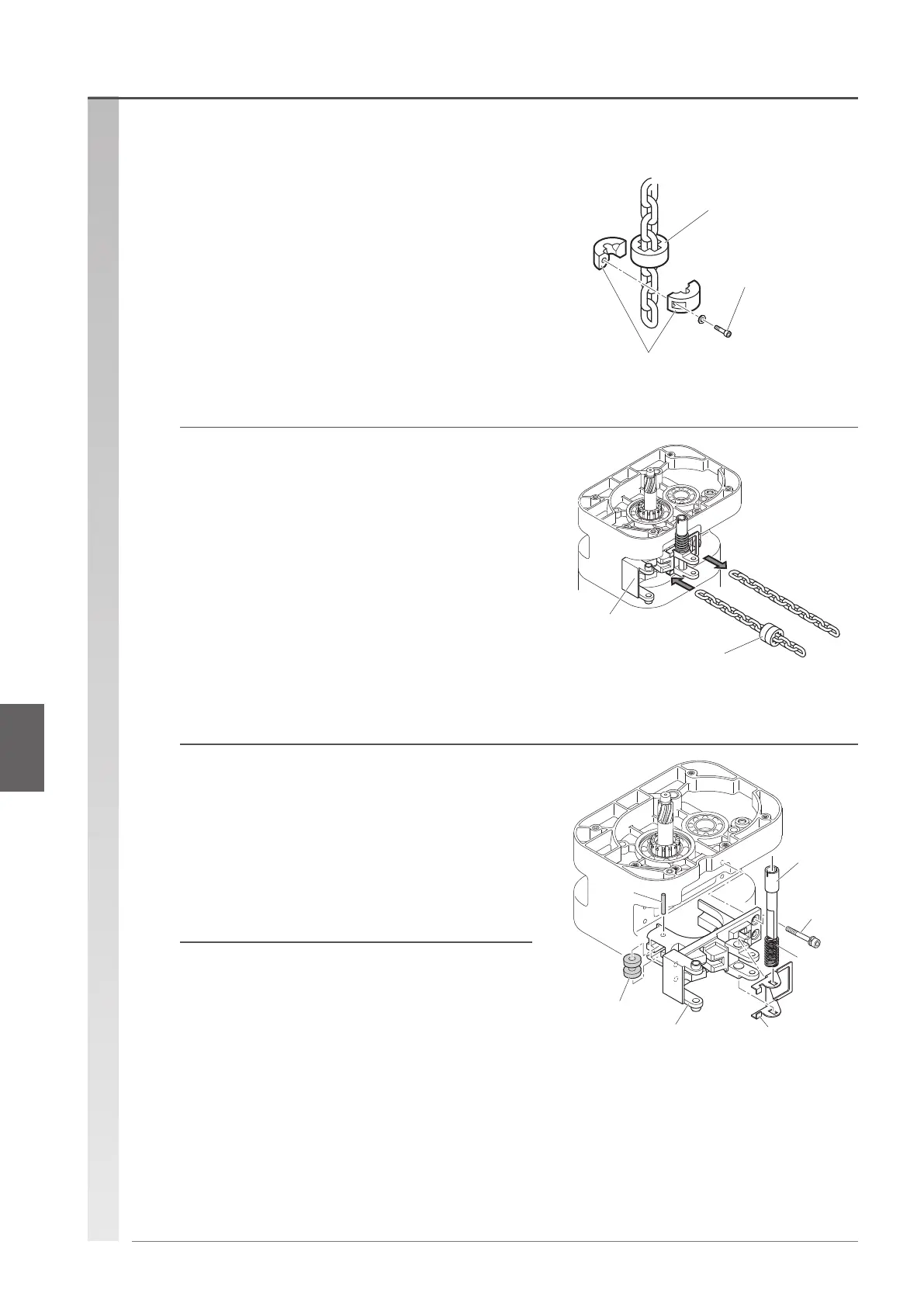

(3) Remove the limit lever.
Remove the limit lever pin, limit lever spring, and then limit
lever.
(4) Loosen the 4 socket bolts, and remove
Chain Guide A from the body.
Remove the guide roller and roller pin.
(Basic main bodies B and C are not provided with Guide
roller.)
Be careful not to lose the roller pin of the guide roller
during operation.
Limit lever pin
Limit lever
spring
Limit lever
Chain Guide A
Socket bolt
Guide roller
Roller
pin
Disassembling the load chain circumference
5
(1) Remove the stopper and cushion rubber
from the load chain (no load side).
For the double chain type, also remove the stopper of the
load side.
(2) Remove the load chain from the body to the
load side.
Remove the bottom hook as required.
Chain Guide A
Stopper
Cushion rubber
(Remove it in advance.)
Socket bolt
Stopper
Cushion rubber
Disassembly procedure (continued)
Disassembly procedureDisassembling the load chain circumference
