KITO ER2M Disassembly And Reassembly Guide

8
Danger

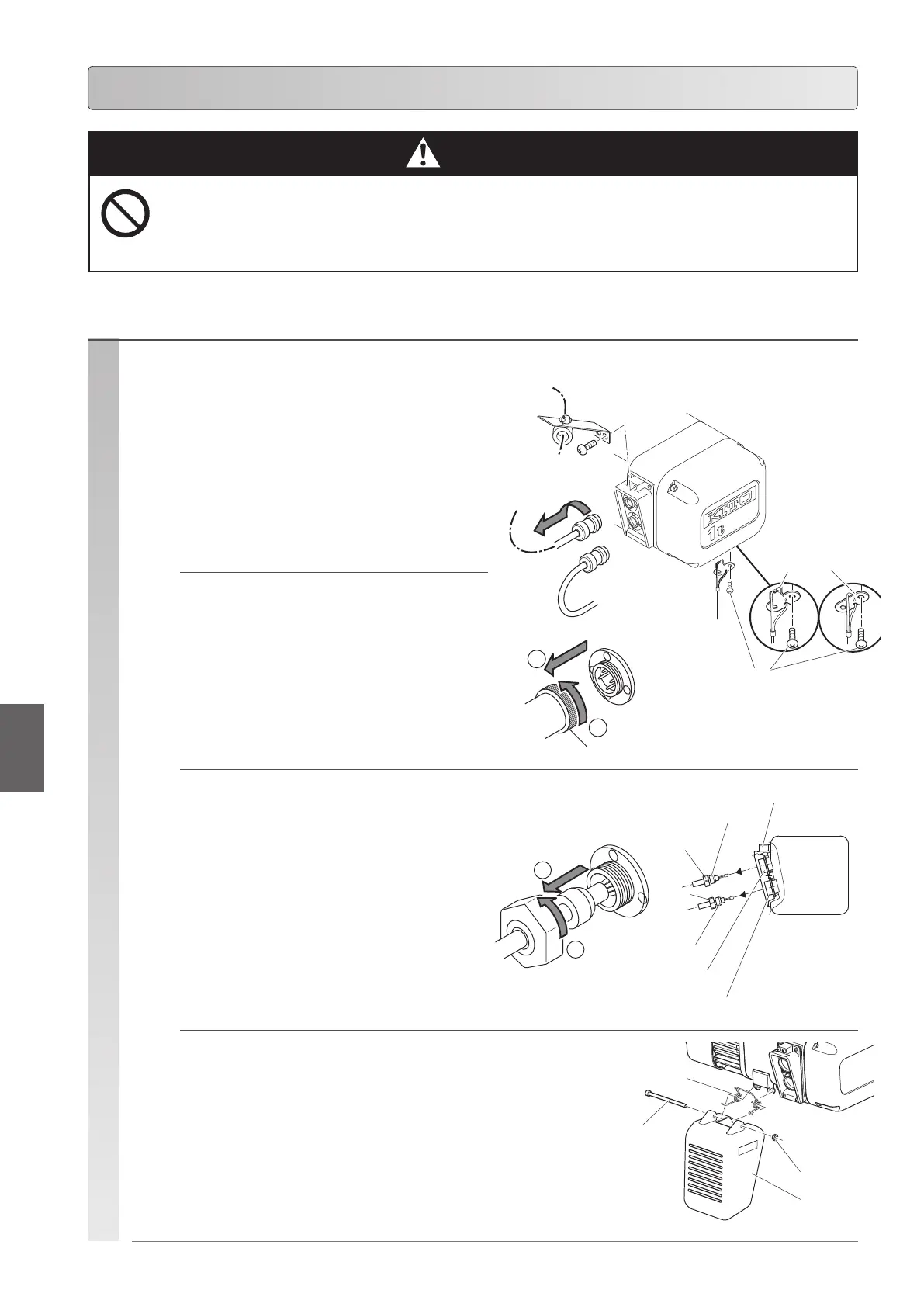

(1) Remove the protection wire from
the main body, and remove the
push button cord complete set with
plug 8P.
Removing the outer circumference parts
1
(2) Remove the chain container from the main
body.
(2) Remove the power supply cable
assembly with plug 4P and cable
support arm from the main body.
• Do not disassemble the electric chain hoist while it is being suspended.
Failure to follow this instruction may result in death or severe injury due to dropped parts.
Be sure to place the electric chain hoist on a floor and perform the disassembly on the workbench.
Socket
bolt
U nut
Container spring
Chain
container
The overall disassembly procedure is shown below. Perform disassembly of only necessary parts.
Protection
wire
Cable support
Remove the push button
cord before loosening it.
Turn the coupling
counter-clockwise
and pull out.
1
Coupling screw
2
Disassembly procedure
Disassembly procedureRemoving the outer circumference parts
Prohibited
<Plug connection>
Cable Packing
Connector Socket holder
Holder A
Holder A
Holder C (upper side)
Holder C (lower side)
1
2
<Direct connection>
(1) Turn Holder A and remove it from
Holder C.
•
Do not pull the cable at this time, as it is still
attached to the inside of the main body.
•
Remove the controller cover, disconnect the
connector to which the cable is connected, and
then pull the cable out.
