39

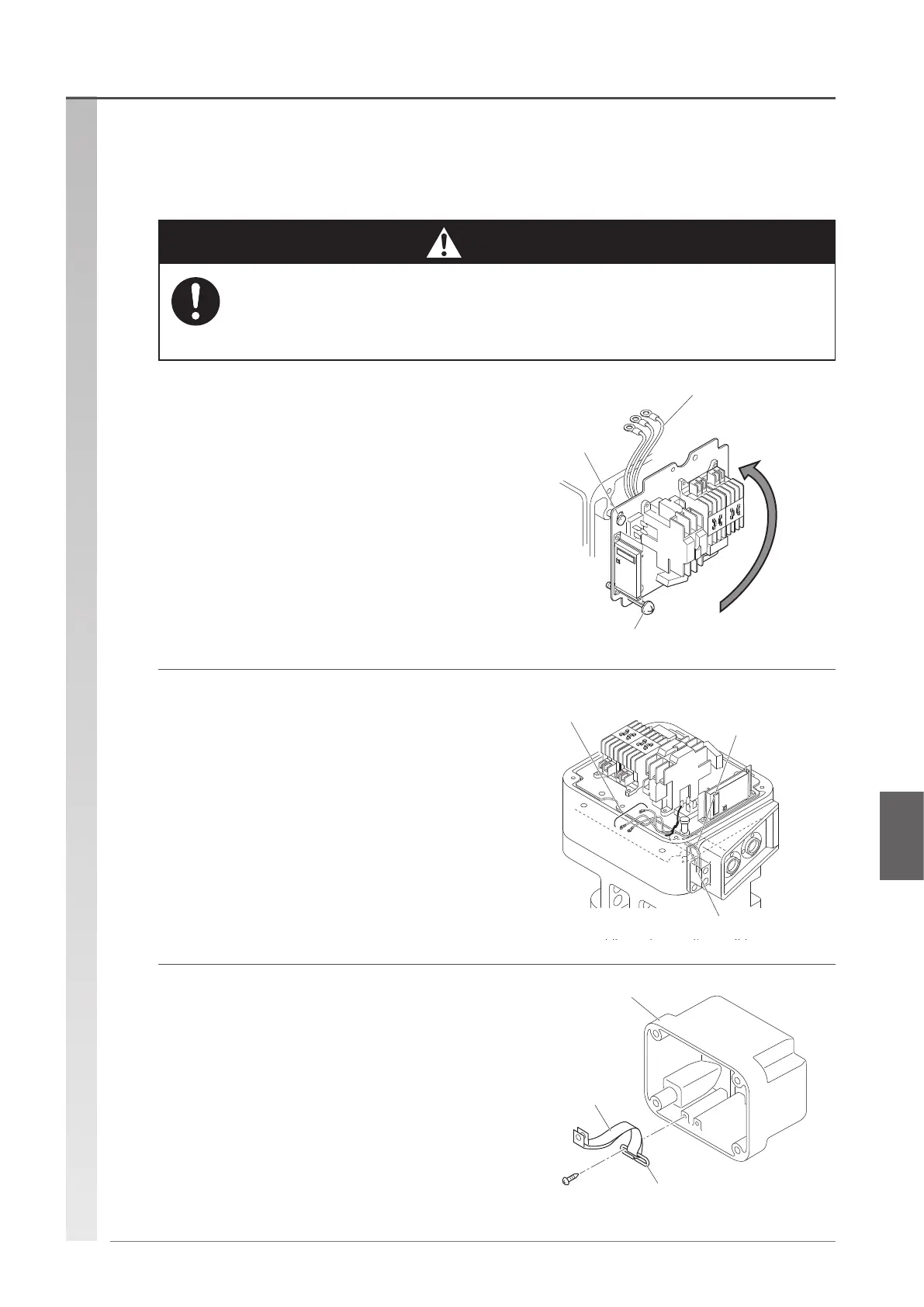

Assembling the controller cover
7
(1) Fix the plate securely with the 3 setscrews.
•
Align the elongate hole of the plate to the fulcrum pin head
of the gear case, and rotate it slightly for position it.
• Be careful so that your finger won't get caught by the panel plate.
Plate screw
Fulcrum pin
Draw out from
the notch of
the plate.
(2) Reconnect the motor lead wire.
•
Check the wire connection by looking at the connecting
diagram. The connecting diagram is attached on the
inside of the controller cover.
From motor
Connect to
each terminal.
Wiring hole inside
the gear case
J
Single speed type
Mandatory
(3) Install the cover belt to the controller cover (if
removed).
•
Be careful so that the cover suspender faces the direction
as shown in the gure.
Controller cover
Put the yoke in this orientation.
Cover belt
Caution
Reassembly procedure
(To be continued)
Assembling the controller cover
To Next Page
