KITO ER2M Disassembly And Reassembly Guide

14
Removing the top hook
Remove the top hook first to make it easier to disassemble other parts.
3
(1) Loosen the socket bolt to remove the Plate
A (for Top pin).
(2) Remove the shaft clip in the opposite side.
•
Pull up the shaft clip to remove.
•
If it is difcult to remove, use the longnose pliers to open
the presser part and slide it upward.
(3) Remove the top pin, and then top hook.


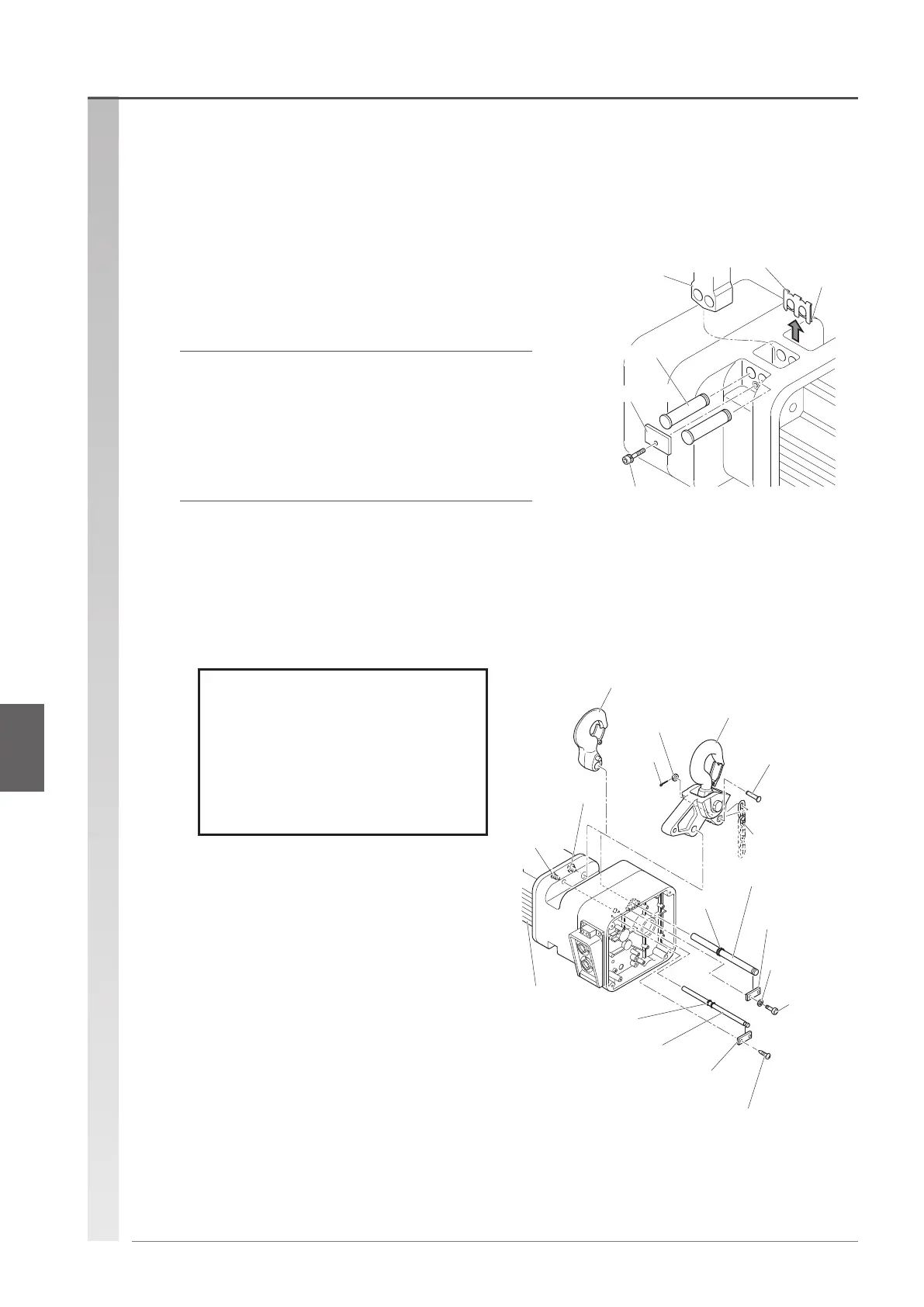

Removing the top hook (Basic main bodies B,
C, D, and E)
Top hook or
Suspender
Socket bolt
Plate A
(for Top pin)
Top pin
Shaft clip
Presser
part
Disassembly procedure (continued)

Removing the top hook (Basic main
body F)
•
For the double chain type, remove the
load chain rst.
1. Pull out the split pin securing the slotted nut of
the chain pin, and remove the slotted nut.
2. Loosen the chain pin to remove the load chain.
1. Loosen the 2 socket bolts to remove the Plate A
(for Top pin).
2. Loosen the 2 pan-head machine screws to remove
the Plate A (for xing shaft).
3. Pull out Top pin and Fixing shaft.
•
If it is difcult to pull out smoothly, remove
Stator on the opposite side, remove Shaft
plug, and use a proper jig to pull out Top pin,
hammering with a Plastic hammer.
•
For disassembly of the stator, refer to page
19.
4. Remove the 2 O rings each from the top pin and
Fixing shaft.
5. Remove the hook or Connection yoke.
Load chain
Chain pin
Split pin
Slotted nut
Fixing shaft
plug
Plate A
(for Top pin)
Spring lock
washer
Socket bolt
Plate A (for fixing shaft)
Pan-head machine screw
Top pin
Fixing shaft
O ring
Stator
O ring
Top hook
Top hook
(for the double chain type)
Top pin plug
Disassembly procedureRemoving the top hook
