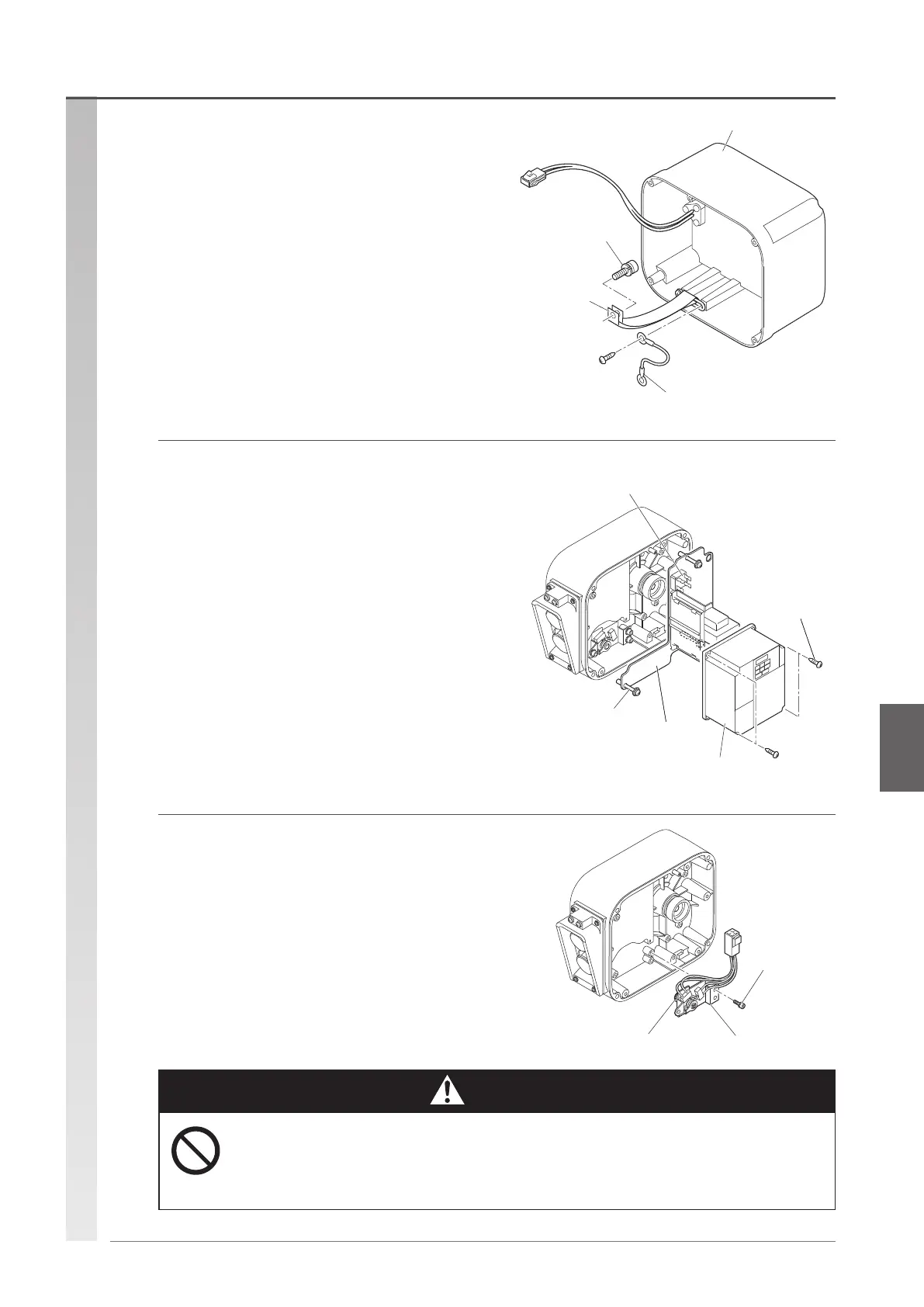

13
Controller cover
Socket bolt
(gear case side)
Ground line
Cover belt
Remove the lead
wire in advance
Plate screw
Plate
Pan-head
machine screw
Socket bolt
Limit switch
O ring
(3) Remove the socket bolt (gear case side)
securing the cover belt, and remove the
controller cover from the gear case.
•
The controller cover can be removed with the cover belt
attached.
(4) Remove the lead wire and connector
between the plate, main body, and inverter,
and remove the plate and inverter.
•
Loosen the 3 Plate screws to remove the plate.
•
Loosen the 4 pan-head machine screws of the inverter to
remove it.
•
Make a note of the locations of the lead wire connections
that will be referred to upon reassembly.
(5) Remove the limit switch as required.
•
Remove the connector of the limit switch rst.
•
Remove it carefully by holding the connector of the limit
switch side.
•
Loosen the 3 socket bolts to remove the limit switch
(replace the O ring attached to the shaft with a new part
upon reassembly).
•
Be careful when removing the limit switch because it may
be damaged if handled in a wrong way.
• Do not disassemble the limit switch.
Replace the limit switch as an assembly. Disassembly causes a defective operation, and a
major accident may occur.
Prohibited
(To be continued)
Disassembly procedure Removing the controller cover
Danger
To Next Page
