KITO ER2M Disassembly And Reassembly Guide

24

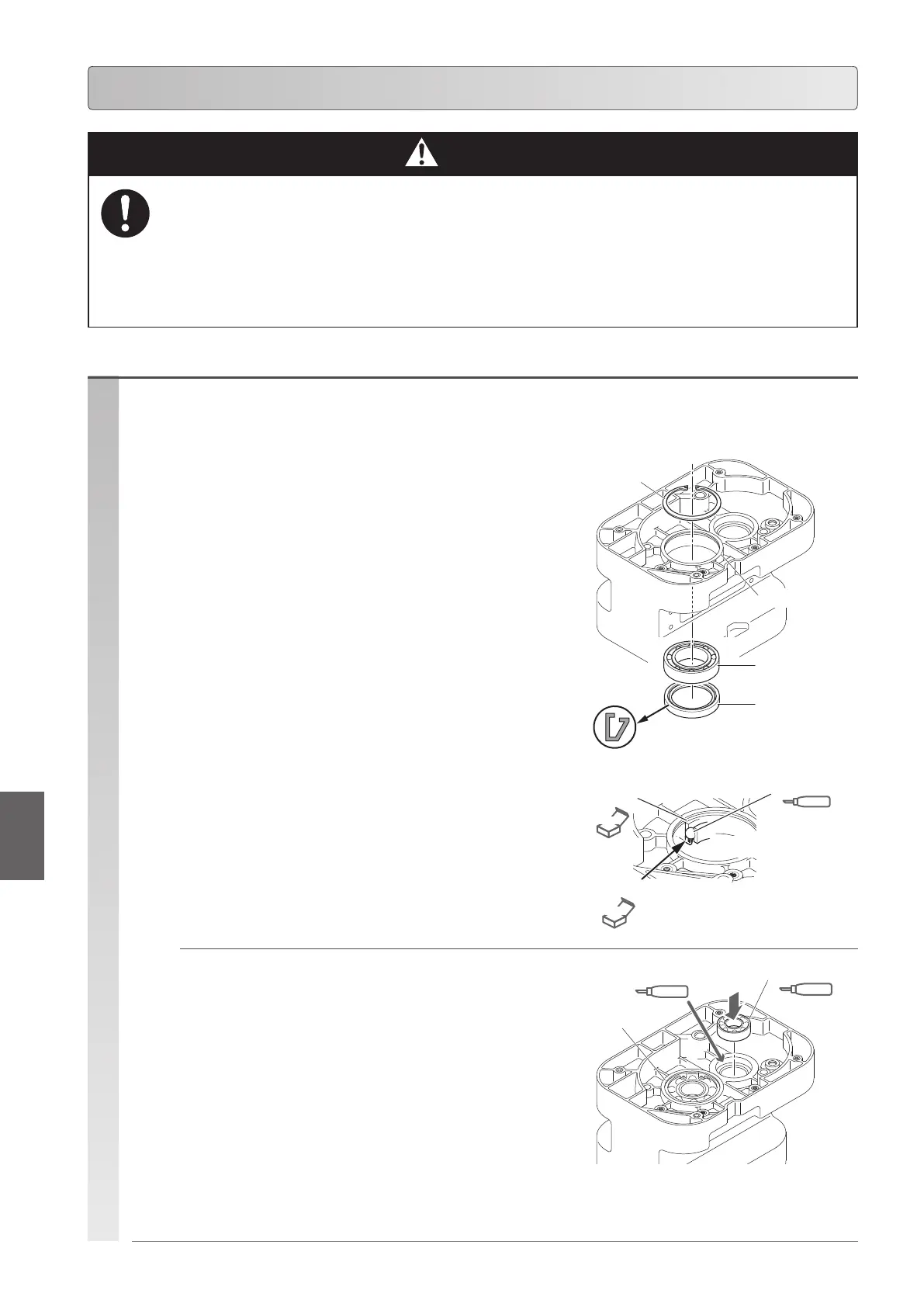

Assembling the body
1
(2) Turnoverthebody,andpress-tthe
bearing until it reaches the snap ring.
•
Apply oil on all bearings and insert them using a proper
jig.
(1) Mount the snap ring to Housing A of the
body,andpress-tthebearingandthenoil
seal. (Apply oil to Housing A in advance.)
•
Make sure that the snap ring is fully inserted to the slot.
•
Turn over the body, and press-t the bearing until it
reaches the snap ring.
•
Insert a new oil seal.
•
Apply machine oil on the oil seal, and install it so that the
at part faces the direction as shown in the gure.
•
After installation, apply additional oil on the lip
circumference.
• Do not perform reassembly using parts exceeding application limits.
• For parts to be replaced with new parts upon reassembly, refer to page 3.
• Tighten the bolts and nuts securely with the specified torques.
• Make sure to perform installation and retaining measure (i.e. opening legs) for the split pin.
• Apply oil, grease, and screw lock as instructed.
Failure to follow this instruction may result in death or severe injury.
Reassembly procedure
Mandatory
Danger
Reassembly procedureAssembling the body
Snap ring
Housing A
Bearing
Oil seal
Cross-sectional shape
Bearing
Housing A
Housing B
Oil
Oil
Oil
NEW
Bearing
Snap ring
Oil seal
Housing A
NEW
