23

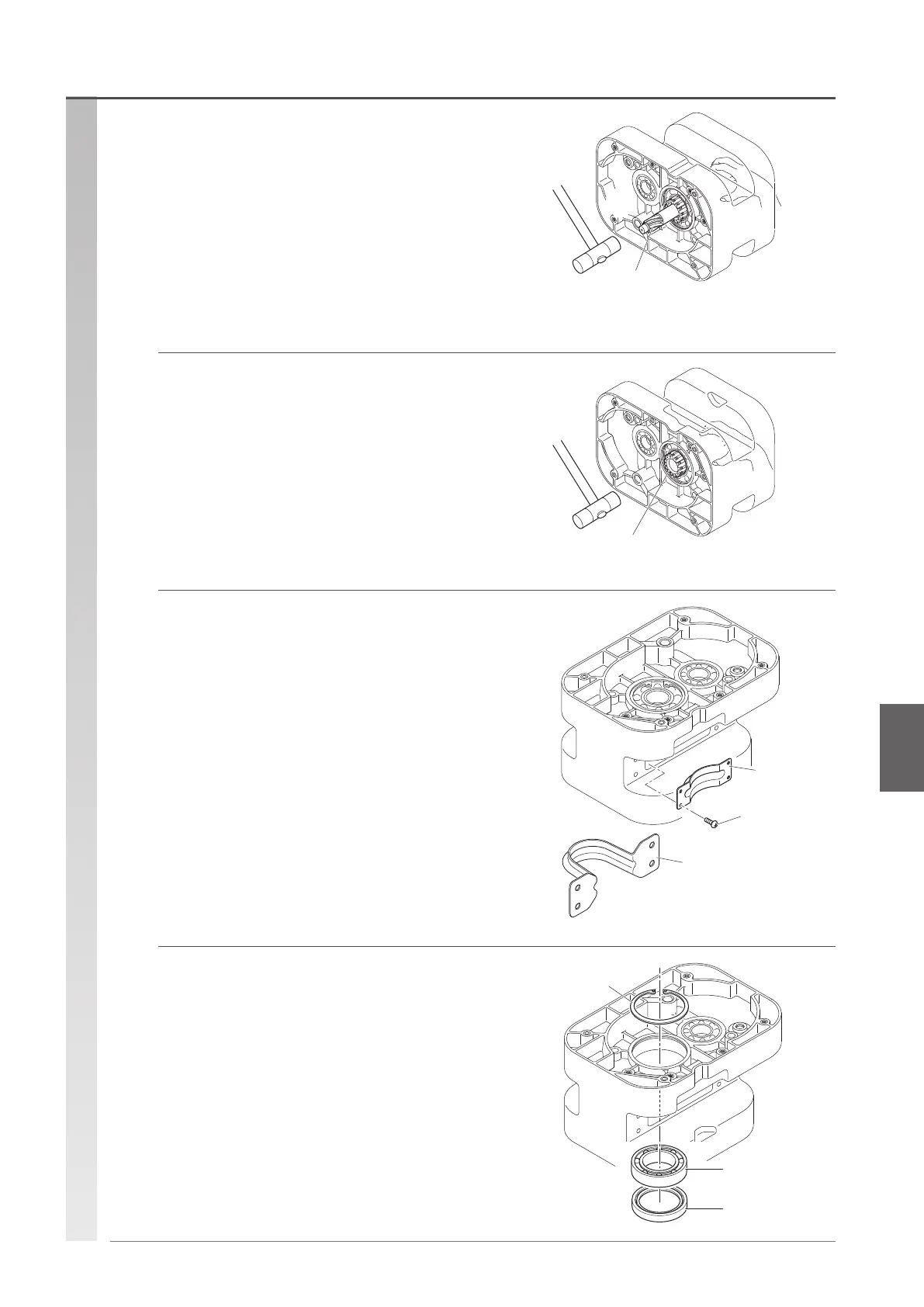

(3) Hammer the load sheave gently as shown
in the gure to remove it.
•
Hold the load sheave with hands to prevent it from falling.
•
For Basic main bodies B and C, Chain Guide B is not
xed. Be careful not to damage Chain Guide B.
Load sheave
Pinion
(Integrated with the bearing
(2) Place the body sideways. Hammer the
pinion gently to remove the bearing holder
(including the pinion).
(4) Remove the 4 screws, and remove Chain
Guide B.
•
There is no Pan-head machine screw for Basic main
bodies B and C.
(5) Remove the snap ring as required, and
remove the bearing and oil seal built into
the body.
•
If the oil seal is removed, replace it with a new one upon
reassembly.
500kg or less
Chain Guide B
Chain
Guide B
Pan-head
machine screw
Bearing
Oil seal
Snap ring
Disassembly procedure Disassembling the body part
To Next Page
