KITO ER2M Disassembly And Reassembly Guide

34

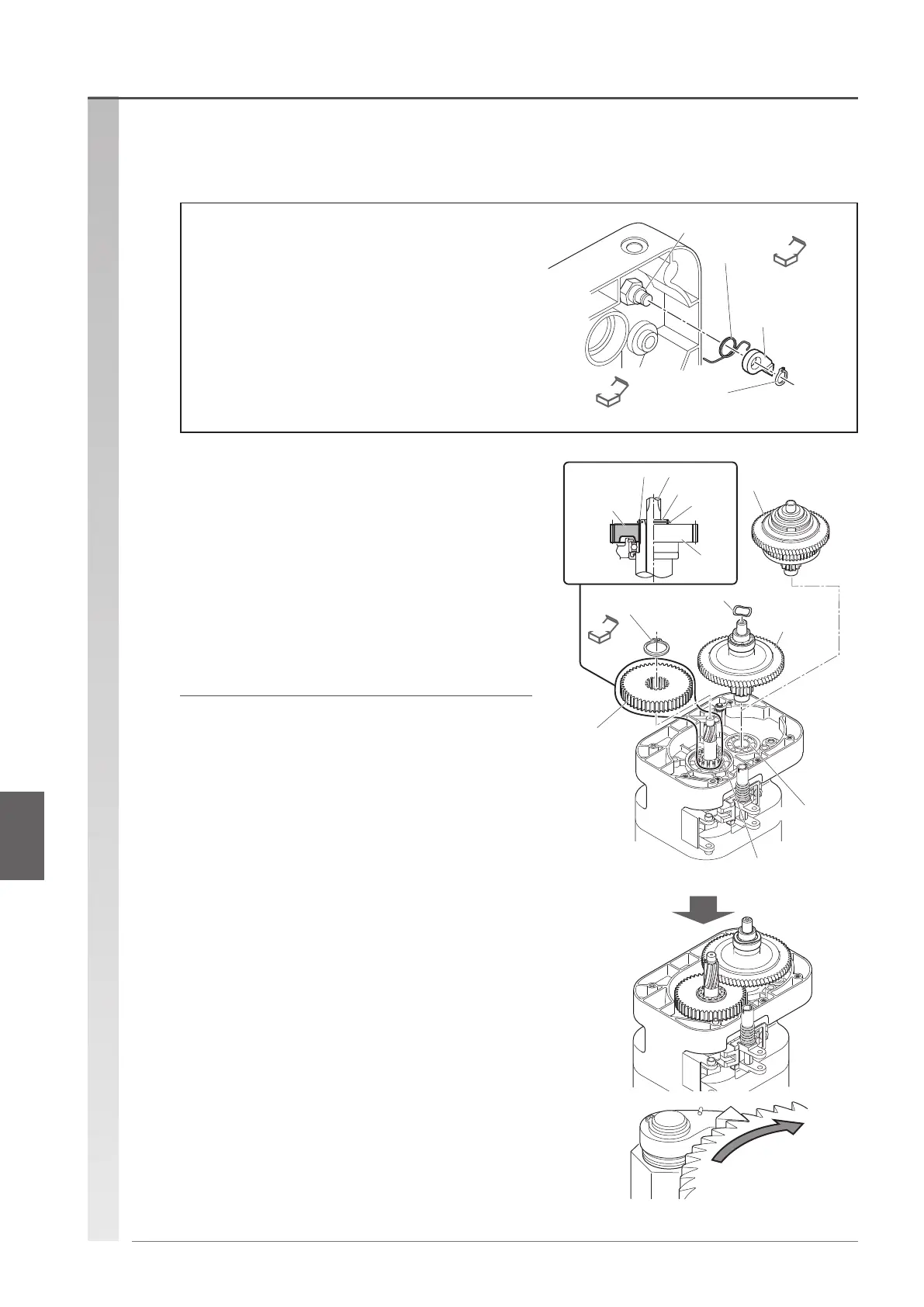

Reassembly procedure (continued)
Friction clutch
Friction clutch with
mechanical brake
Fig. A Orientation of the load gear
Wave washser
Snap ring
Pinion
Load gear
Bearing
NEW
Load
gear
Snap ring
Load sheave
Pinion
Spline
Boss part
(Bearing side
has indentation.)

Double reduction
•
Mechanical brake specication (option)
Pawl shaft
Pawl spring
Snap ring
Pawl
(Replace it with
a new part if worn.)
NEW
NEW
(1) Insert the pawl spring and pawl to the pawl
shaft, and lock them with a snap ring.
•
Check the orientation so that the pawl is in engagement
with the ratchet disc.
Assembling the gear parts
5
(1) Insert the load gear to the load sheave, and
lock it with a new snap ring.
•
Make sure that the snap ring is inserted fully.
•
For the orientation of the load gear to install it correctly,
refer to Figure A.
(2) Install the friction clutch, and mount the
wave washer.

Friction clutch with mechanical brake
specication(option)
•
Install the friction clutch with mechanical brake while
checking the engagement between the ratchet disc and
pawl.
(No wave washer available.)
Rotational direction
when hoisting
Reassembly procedureAssembling the gear parts
