SYNTH TABLES
Roland
JX-8P
Cable requirements
The Roland JX-8P uses a standard MIDI cable
Equivalent
controls
Roland
©

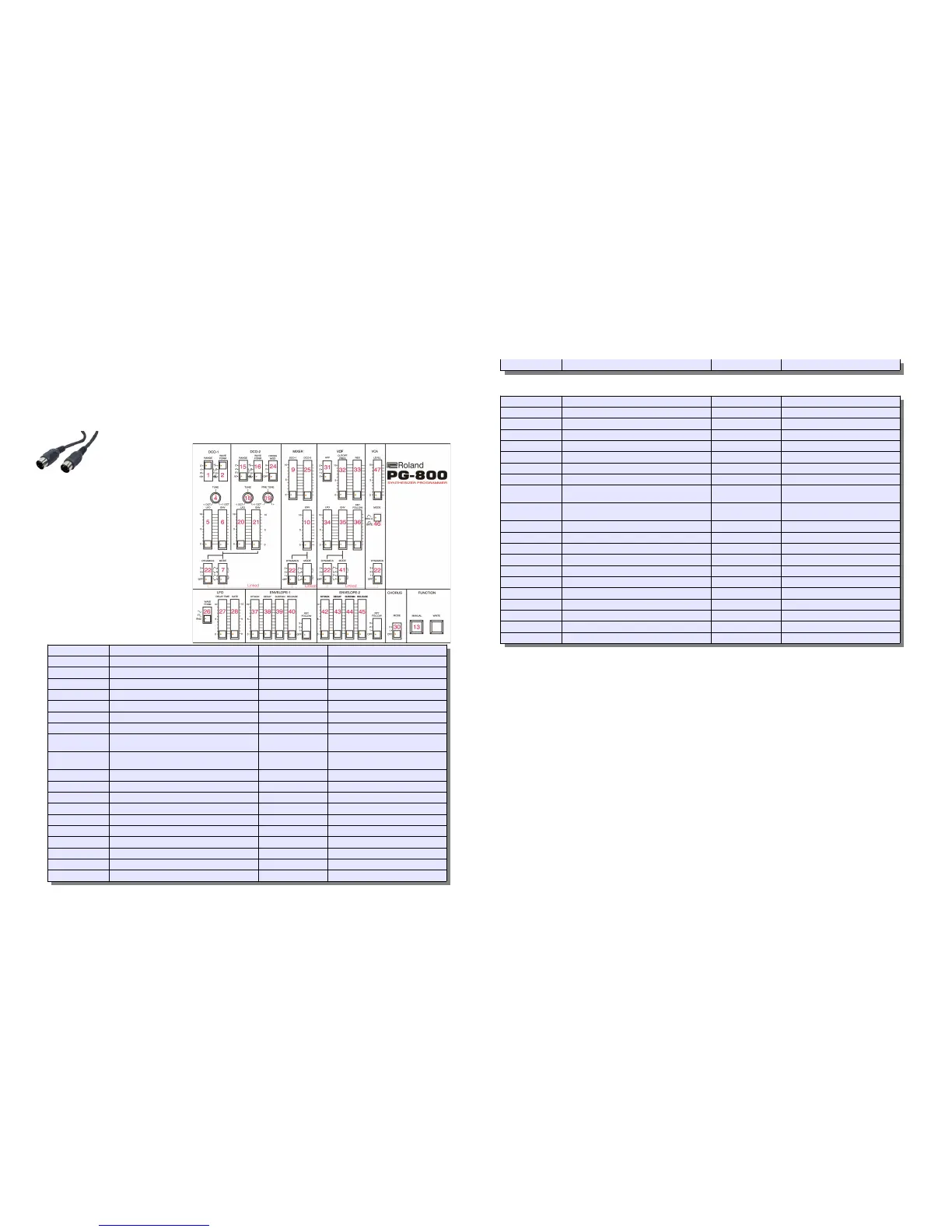

JX-8P Controls Pg1
Osc 1 Range (1) 16', 8', 4', 2' LFO Wave (26) Sine, Square, Random
Osc 1 Wave (2) Saw, Pulse, Square, Noise LFO Delay (27) LFO Delay
Osc 1 PW (3) Not Used LFO Speed (28) LFO Rate
Osc 1 Tune (4) DCO 1 Tune Chorus/FX Rate (29) Not Used
Osc 1 LFO Mod (5) DCO 1 LFO Mod Chorus/FX Mode (30) Chorus Off, 1, 2
Osc 1 ENV Mod (6) DCO 1 ENV Mod HPF (31) Off, 1, 2, 3
Osc 1 Mode (7) DCO 1 & 2 Envelope Mode LPF Cutoff (32) Active
Osc 1 PWM (8) Not Used LPF Resonance (33) Active
Osc 1 Level (9) DCO 1 Level Filter LFO Modulation
(34)
Active
Noise Level (10) Not Used Filter ENV Modulation
(35)
Active
Osc 2 Range (15) 16', 8', 4', 2' Filter Key Follow (36) Active
Osc 2 Wave (16) Saw, Pulse, Square, Noise Filter ADSR (37-40) Active
Osc 2 PW (17) Not Used Filter Mode (41) Filter Envelope Source
Osc 2 Tune (18) DCO 2 Tune VCA ADSR (42-45) Active
Osc 2 Fine Tune (19) DCO 2 Fine Tune VCA Mode (46) Envelope 2, Gate
Osc 2 LFO Mod (20) DCO 2 LFO Mod VCA Level (47) Active
Osc 2 ENV Mod (21) DCO 2 ENV Mod
Osc 2 Mode (22) Not Used
Osc 2 PWM (23) Not Used
Osc 2 XMod (24) Off, 1, 2, Cross Mod
Osc 2 Level (25) DCO 2 Level
Roland
©
JX-8P Controls Pg2
Osc 1 Range (1) Not Used LFO Wave (26) Key Follow Env 1 Off,1 ,2 ,3
Osc 1 Wave (2) Not Used LFO Delay (27) Not Used
Osc 1 PW (3) Not Used LFO Speed (28) Not Used
Osc 1 Tune (4) Not Used Chorus/FX Rate (29) Not Used
Osc 1 LFO Mod (5) Not Used Chorus/FX Mode (30) Key Follow Env 2 Off,1 ,2 ,3
Osc 1 ENV Mod (6) Not Used HPF (31) Not Used
Osc 1 Mode (7) DCO 1&2 Dynamics Mode Off,1 ,2 ,3 LPF Cutoff (32) Active
Osc 1 PWM (8) Not Used LPF Resonance (33) Active
Osc 1 Level (9) Not Used Filter LFO Modulation
(34)
Active
Noise Level (10) Not Used Filter ENV Modulation
(35)
Active
Osc 2 Range (15) Not Used Filter Key Follow (36) Active
Osc 2 Wave (16) Not Used Filter Decay Not Used
Osc 2 PW (17) Not Used Filter Sustain Not Used
Osc 2 Tune (18) Not Used Filter Release Not Used
Osc 2 Fine Tune (19) Not Used Filter Mode VCF Dynamics Mode Off,1 ,2 ,3
Osc 2 LFO Mod (20) Not Used VCA Attack Not Used
Osc 2 ENV Mod (21) Not Used VCA Decay Not Used
Osc 2 Mode (22) Mixer Envelope Mode VCA Sustain Not Used
Osc 2 PWM (23) Not Used VCA Release Not Used
Osc 2 XMod (24) Mixer Dynamics Mode Off,1 ,2 ,3 VCA Mode (46) VCA Dynamics Mode Off,1 ,2 ,3
Osc 2 Level (25) Mixer Env Mod Level VCA Level (47) Not Used
Roland JX-8P Notes
The JX-8P has two separate oscillators. The oscillator design in the JX-8P is a digital system and the filter and the
VCA use the custom Roland chip the IR3R05 for each of the six voices.
Oscillator 1 & 2 share a common envelope type for the ENV Modulation controls (6) (21). The Oscillator 1 Mode
Button (7) selects the envelope type and source for both Oscillators and the Filter Mode Button (41) selects the
envelope type and source for the Filter. Valid options are EG1 (37-40) Normal, EG1 Inverted, EG2 (42-45) Normal
and EG2 Inverted.
Oscillator 2 Mode switch (22) is used to set the Dynamics for both Oscillators, the Mixer, VCF & VCA. These are
all set to the same value. Valid options are 0 (off), 1, 2 and 3.
www.kiwitechnics.com Patch Editor v6.0
