Roland MKS-80
Cable requirements The Roland MKS-80 uses a standard MIDI cable,
Equivalent controls
Roland
©

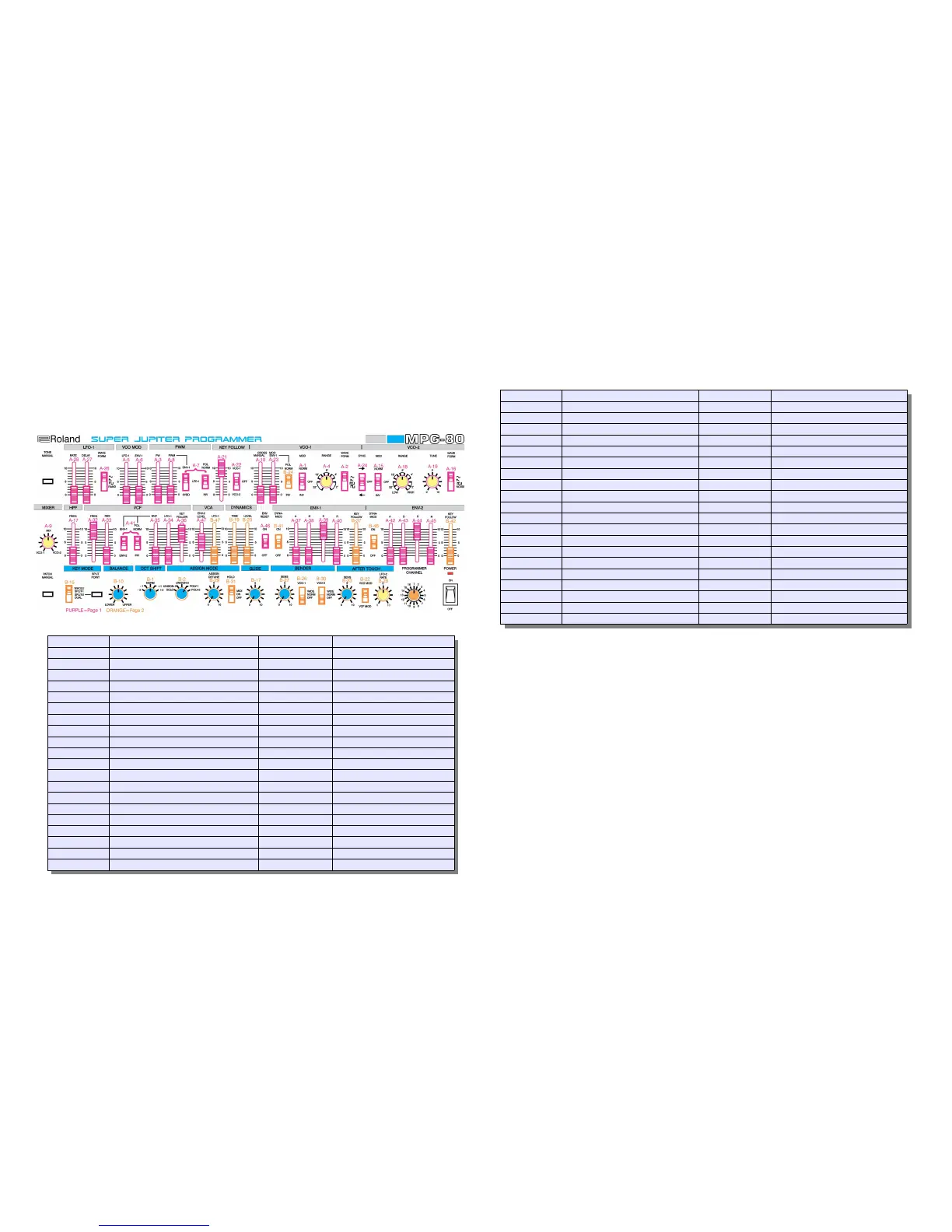

MKS-80 Controls Page A
Osc 1 Range (1) VCO-1 Mod Off, Norm, Inverted LFO Wave (26) Triangle, Sawtooth, Square, Random
Osc 1 Wave (2) Sawtooth, Pulse, Square, Triangle LFO Delay (27) LFO Delay
Osc 1 PW (3) VCO 1 & 2 PW adjust LFO Speed (28) LFO-1 Rate
Osc 1 Tune (4) VCO 1 Range Chorus/FX Rate (29) Not Used
Osc 1 LFO Mod (5) VCO 1 & 2 LFO-1 Modulation- (1 & 15) Polarity Select Chorus/FX Mode (30) Not Used
Osc 1 ENV Mod (6) VCO 1 & 2 ENV-1 Modulation - (1 & 15) Polarity Select HPF (31) Not Used
Osc 1 Mode (7) VCO 1 & 2 PWM Source & Polarity LPF Cutoff (32) VCF Cutoff
Osc 1 PWM (8) VCO 1 & 2 PWM Amount LPF Resonance (33) VCF Resonance
Osc 1 Level (9) VCO 1 & 2 Mix Filter LFO Modulation (34) VCF LFO-1 Modulation Amount
Noise Level (10) Manual XMod Control Filter ENV Modulation (35) VCF ENV Mod Amount - (31) Source Select
Osc 2 Range (15) VCO-2 Mod Off, Norm, Inverted Filter Key Follow (36) VCF Filter Key Follow
Osc 2 Wave (16) Sawtooth, Pulse, Triangle, Noise Filter ADSR EG1 (37-40) VCF Envelope Control
Osc 2 PW (17) HPF Continuous Control Filter Mode (41) VCF Envelope Source & Polarity
Osc 2 Tune (18) VCO 2 Range VCA ADSR EG2 (42-45) Active
Osc 2 Fine Tune (19) VCO 2 Tune VCA Mode (46) Envelope Reset On/Off
Osc 2 LFO Mod (20) Not Used VCA Level (47) VCA ENV-2 Modulation
Osc 2 ENV Mod (21) VCO Key Follow
Osc 2 Mode (22) VCO 1 & 2 Key Follow mode
Osc 2 PWM (23) XMod Env-1 Modulation Amount
Osc 2 XMod (24) Off, Sync 1->2, Sync 1<-2
Osc 2 Level (25) Not Used
Roland
©
MKS-80 Controls Page B
Osc 1 Range (1) Octave Select (-2, -1, Norm, +1, +2) LFO1 Wave (26) Bend Range VCO-1 - Off, Norm, Wide
Osc 1 Wave (2) Assign Mode Solo,Unison 1&2, Poly 1&2 LFO1 Delay (27) Bender Sensitivity
Osc 1 PW (3) Not Used LFO1 Speed (28) LFO-2 Rate
Osc 1 Tune (4) Tone Split Point (note 21 - 108) Chorus/FX Rate (29) Unison Detune
Osc 1 LFO Mod (5) Not Used Chorus/FX Mode (30) Bender Range VCO-2 - Off, Normal, Wide
Osc 1 ENV Mod (6) Not Used HPF (31) Assign Mode Hold - Off / On / Midi
Osc 1 Mode (7) Not Used LPF Cutoff (32) VCF Cutoff
Osc 1 PWM (8) Not Used LPF Resonance (33) VCF Resonance
Osc 1 Level (9) Not Used Filter LFO Modulation (34) VCF LFO-1 Modulation Amount
Noise Level (10) Upper/Lower Tone Balance Filter ENV Modulation (35) VCF ENV Mod Amount - (31) Source Select
Osc 2 Range (15) Key Mode - Whole, Split, Dual Filter Key Follow (36) VCF Filter Key Follow
Osc 2 Wave (16) Not Used Filter Attack EG1 (37) Env-1 Key Follow
Osc 2 PW (17) Glide Filter Mode (41) Env -1 Dynamics - Off, On
Osc 2 Tune (18) Not Used Filter Attack EG2 (42-45) Env-2 Key Follow
Osc 2 Fine Tune (19) Dynamics Time VCA Mode (46) Env -2 Dynamics - Off, On
Osc 2 LFO Mod (20) Dynamics Level VCA Level (47) VCA LFO-1 Modulation
Osc 2 ENV Mod (21) Not Used
Osc 2 Mode (22) Aftertouch Destination - VCO , VCF
Osc 2 PWM (23) Aftertouch Sensitivity
Osc 2 XMod (24) XMod Polarity - Normal / Inverted
Osc 2 Level (25) Not Used
Roland MKS-80 Notes
The two boards are called Upper and Lower and can have completely independent settings. The Patch Editor
can address these separately or simultaneously via the Upper/Lower Select Button.
All controls not marked GLOBAL will only effect the selected Tone Board (Upper or Lower) and the non selected
Tone Board will remain unchanged. Global commands will effect both voice boards on any page.
The VCO Range controls on the MKS-80 are variable controls. These have been placed on the Tune controls (4)
(18) on the Patch Editor.
The MKS-80 does not have a separate Noise Source as the Oscillator 2 Waveform Select Control (16) is used so
the Noise Level Control (10) has been used for the Manual Cross Modulation control.
On the Roland
©
MKS-80 the High Pass Filter is a continuous control so the HPF cutoff control has been placed
on the Osc 2 PW slider (17) (which is not required for the MKS-80 synthesizer).
www.kiwitechnics.com Patch Editor v6.0
