KMT SL-IV PLUS Series User Manual

SECTION 7
HIGH PRESSURE WATER
May 2003
p. 7-8
49831951

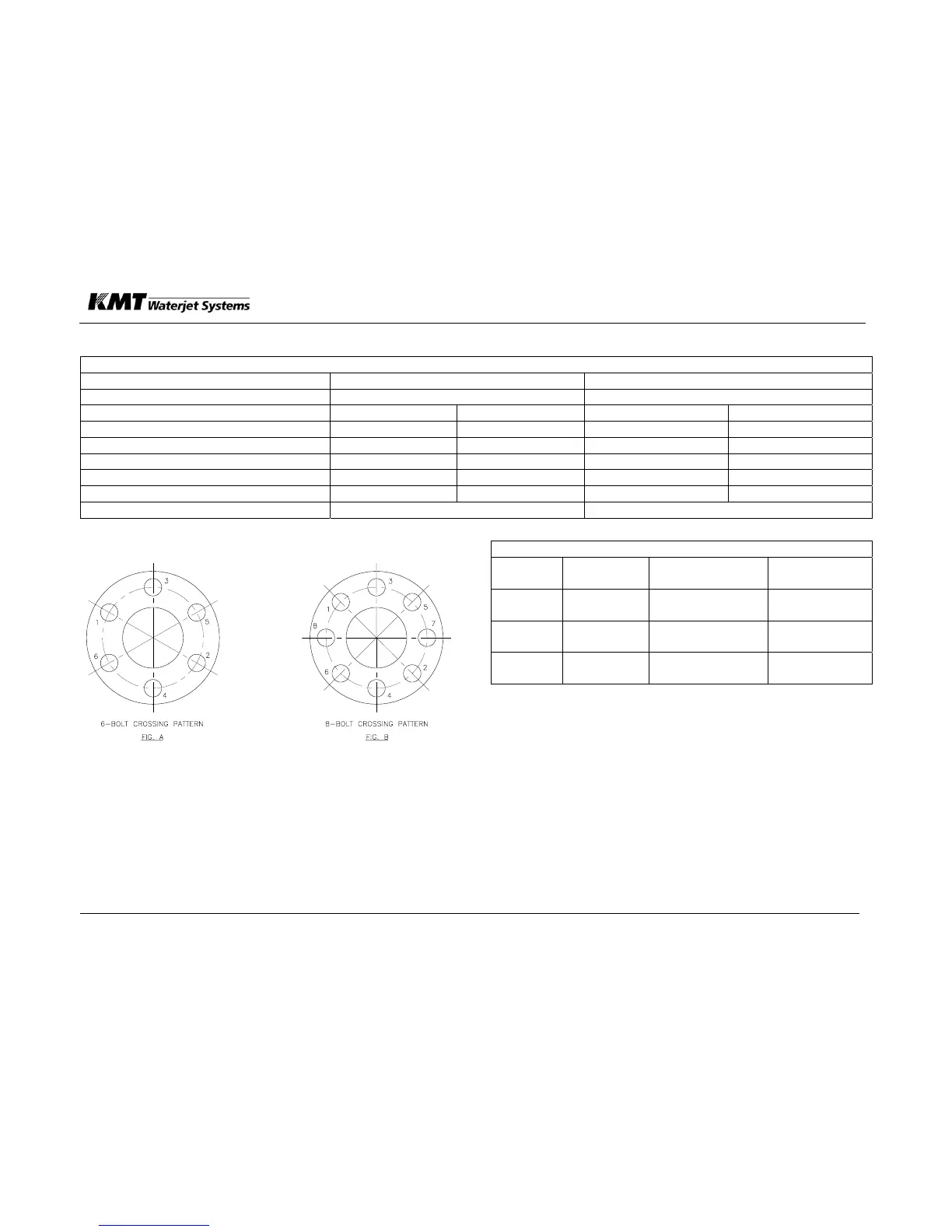

TABLE 7.1 FLANGE NUT TORQUE SPECIFICATIONS
Plunger Diameter 7/8” Diameter Plunger (SL-IV Plus) 1-1/8” Diameter Plunger (SL-IV 100S)
No. of Studs, Tightening Sequence 6 each (Fig A) 8 each (Fig B)
Units N-m Ft-Lb. N-m Ft-Lb.
1
st
Stage Hand Tight Hand Tight Hand Tight Hand Tight
2
nd
Stage 135 100 135 100
3
rd
Stage 200 150 200 150
4
th
Stage 257-285 190-210 257-285 190-210
Max Out-of Parallel 1.8mm 0.070” 1.8mm 0.070”
Socket Wrench Size 1-7/16” 1-7/16”
Table 7-2. Lube Specs KMT Intensifier Pumps
Item
No.
IR P/N Description Applications
1 10087385
FML Grease,
White
Lube Parts,
HP Cylinder
2 10084440
High Purity
Goop-SS Thds
SS Threads
3 49832199
Moly Disulfide
Grease
Non-SS Thds
