SECTION 7
HIGH PRESSURE WATER
May 2003
p. 7-28
49831951
7.3.8 Hydraulic Cylinder
The inside diameter surface of the hydraulic cylinder should be inspected for
wear grooves and surface finish whenever the hydraulic cylinder heads are
removed. Excessive grooving on this bore is indicative of piston seal wear.

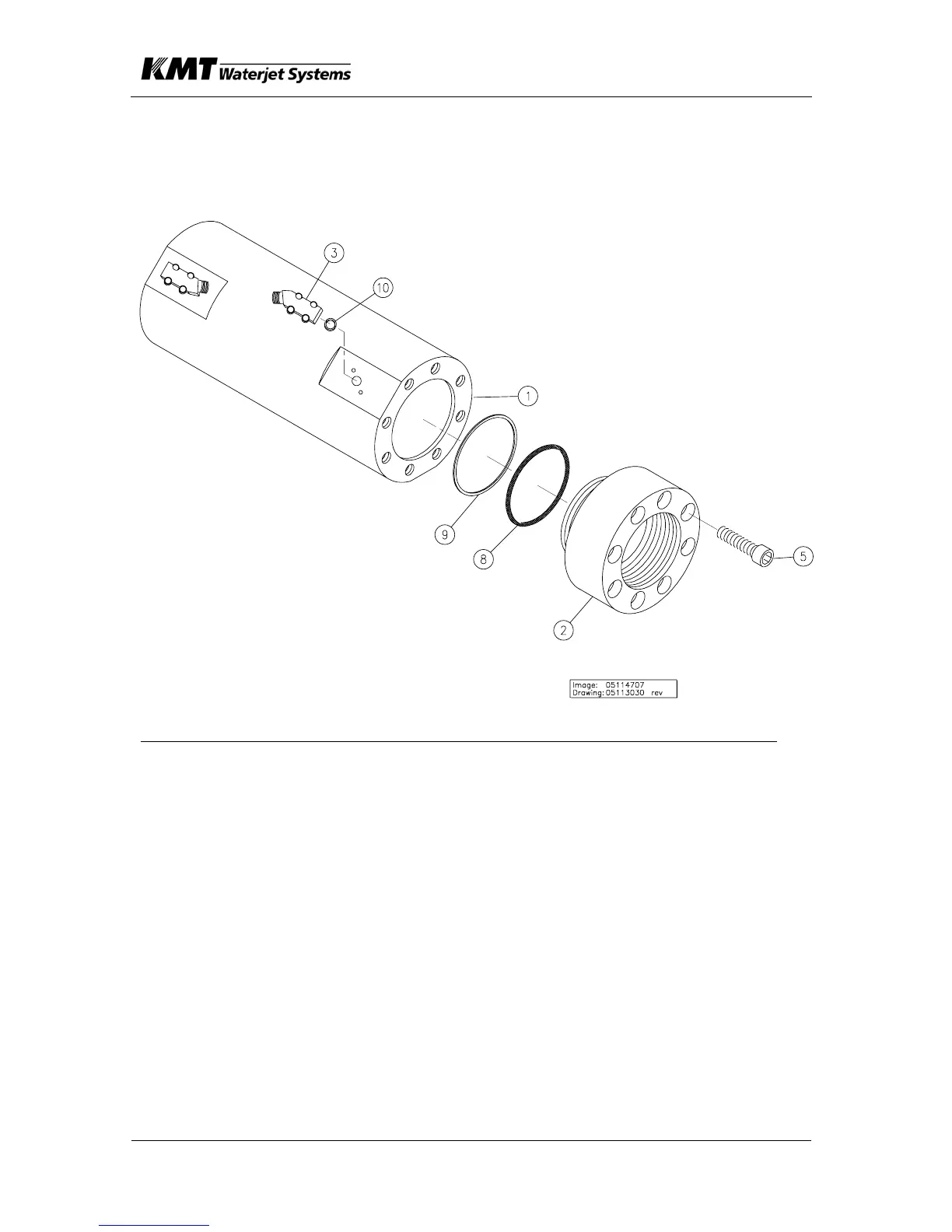

Item Description
(1) Hydraulic Cylinder (2) Cylinder Head (3) Proximity Switch
(5) Cap Screw (8) Back-up ring (9) O-ring
(10) Spacer
