SECTION 7

HIGH PRESSURE WATER

May 2003

p. 7-27

49831951

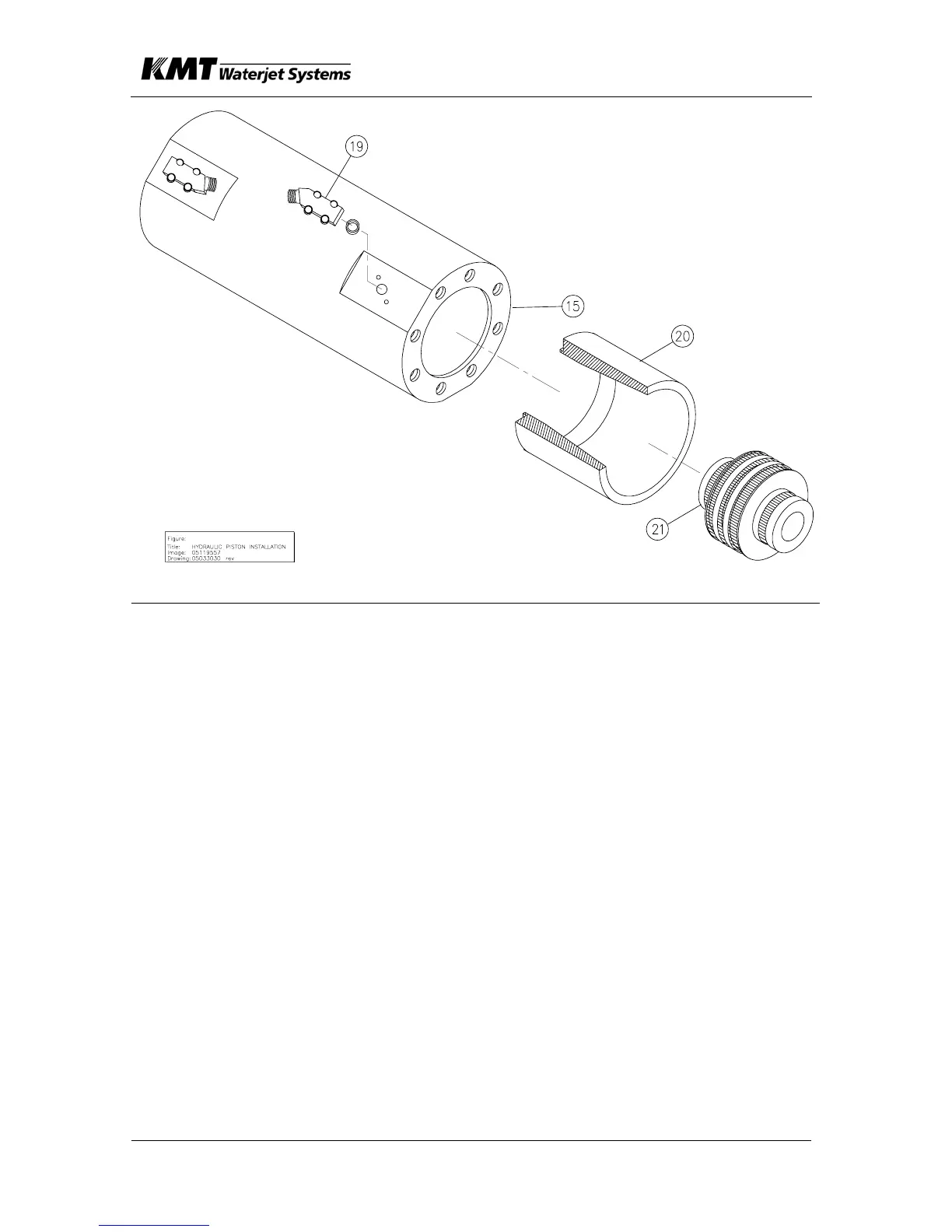

Item Description

15. Hydraulic Cylinder 20. Seal Ring Compression Tool (P460)

19. Proximity Switch 21. Hydraulic Piston Assy
