Knoll Antenna Workspaces - Page 25

Back-to-Back Desks
#14 x 2" FH
Wood Screw (G)
¼-20 x 1"
Machine
Screw (E)
Back-to-Back
Desk End Leg
¼-20 x
5
/
8
" Machine Screw (F)
Starter Rail
Cradle Clamp
Bracket (B)
Horizontal Rail
Cradle (A)

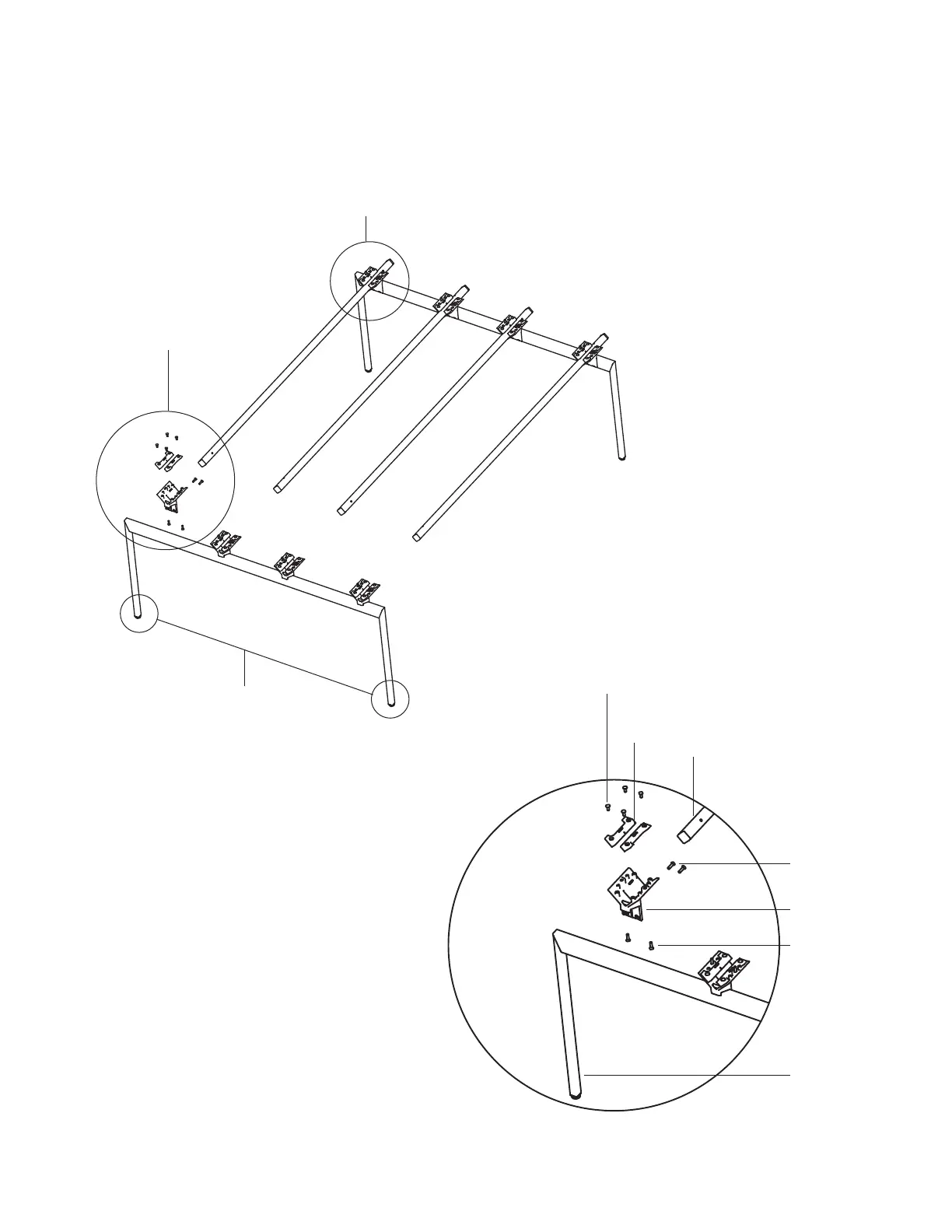

Exploded Back-to-Back Desk Assembly
Steps 3 & 4 Use Installation
Gauge to position cradles on rails
Step 9
Steps 1 & 2
