STEPS
Note: A full end cap is used to cover the
exposed end of the center beam.
A partial end cap is used to cover the lower end
of the center beam when an extension top or
cabinet is specified at the end of a big table.
When using an end panel for dual or single
sided big tables, an end cap is not required.
1. Insert full or partial end cap (A or B) into the
end of the center beam. The vertical tabs
on the end cap are to be inserted into the
horizontal slots on the sides of the beam.
2. Insert (1) #10 – 32 x ¼", cup point black set
screw (C) into each of the vertical tabs on the
end cap (A or B). Secure the set screws against
the center beam, using a 3/32" Allen wrench.
Center Beam End Caps
Pattern Numbers Represented:
Full Height End Cap, YCBE
Partial Height End Cap, YBCPE
Parts List:
Full Height End Cap (A) or
Partial Height End Cap (B)
#10 – 32 x ¼", Cup Point Black Set Screw (C)
Center Beam
Tools Needed:
3/32" Allen Wrench
(A) 3AB406801* (B) 3AB406802*
(C) 3AB4073
Center Beam for Big Tables
Planning Guidelines and Specifications
Antenna Workspaces
77
Desk and Table Support

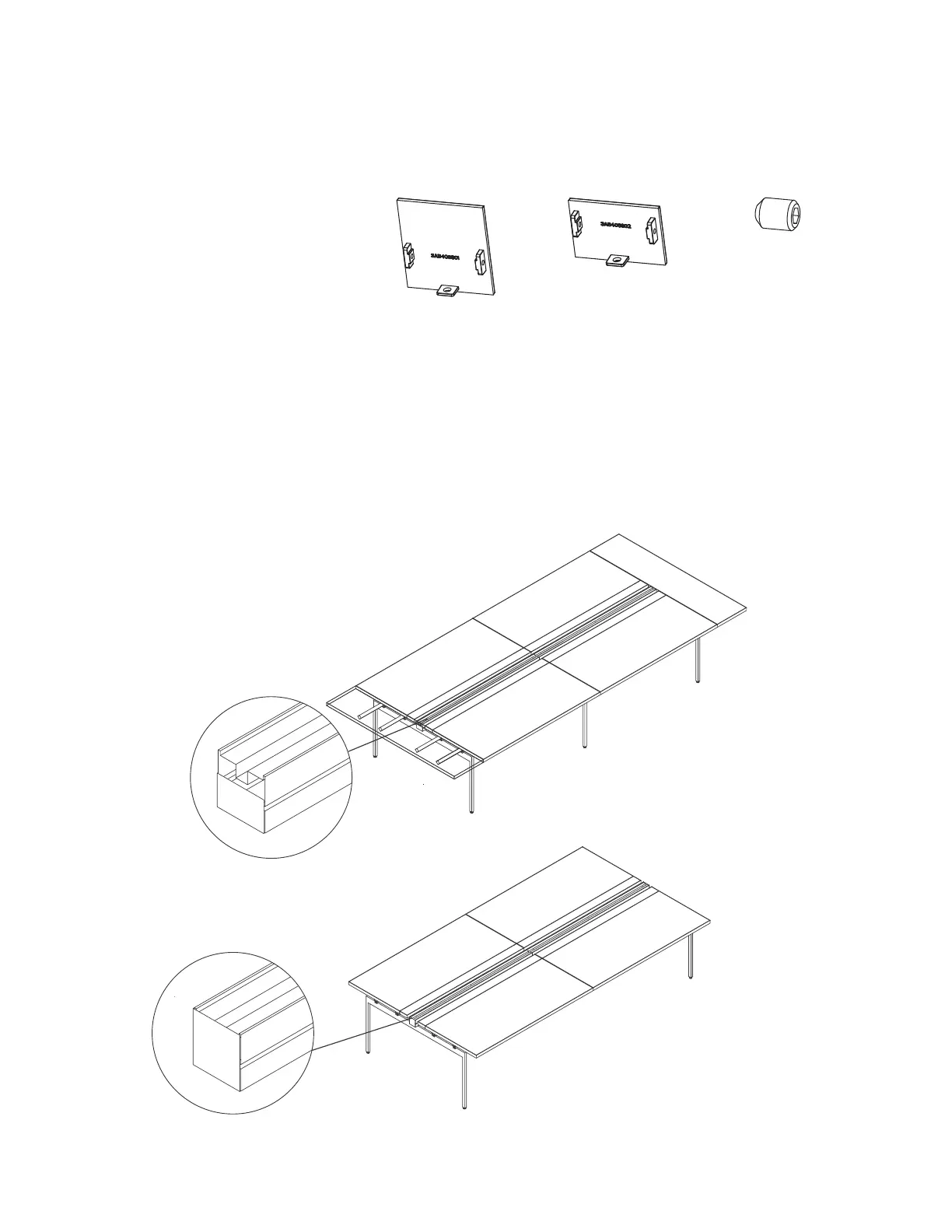

Partial End Cap Detail
Full End Cap Detail
Big Table with Extension Tops
Big Table without Extension Tops
