Knoll Antenna Workspaces - Page 52

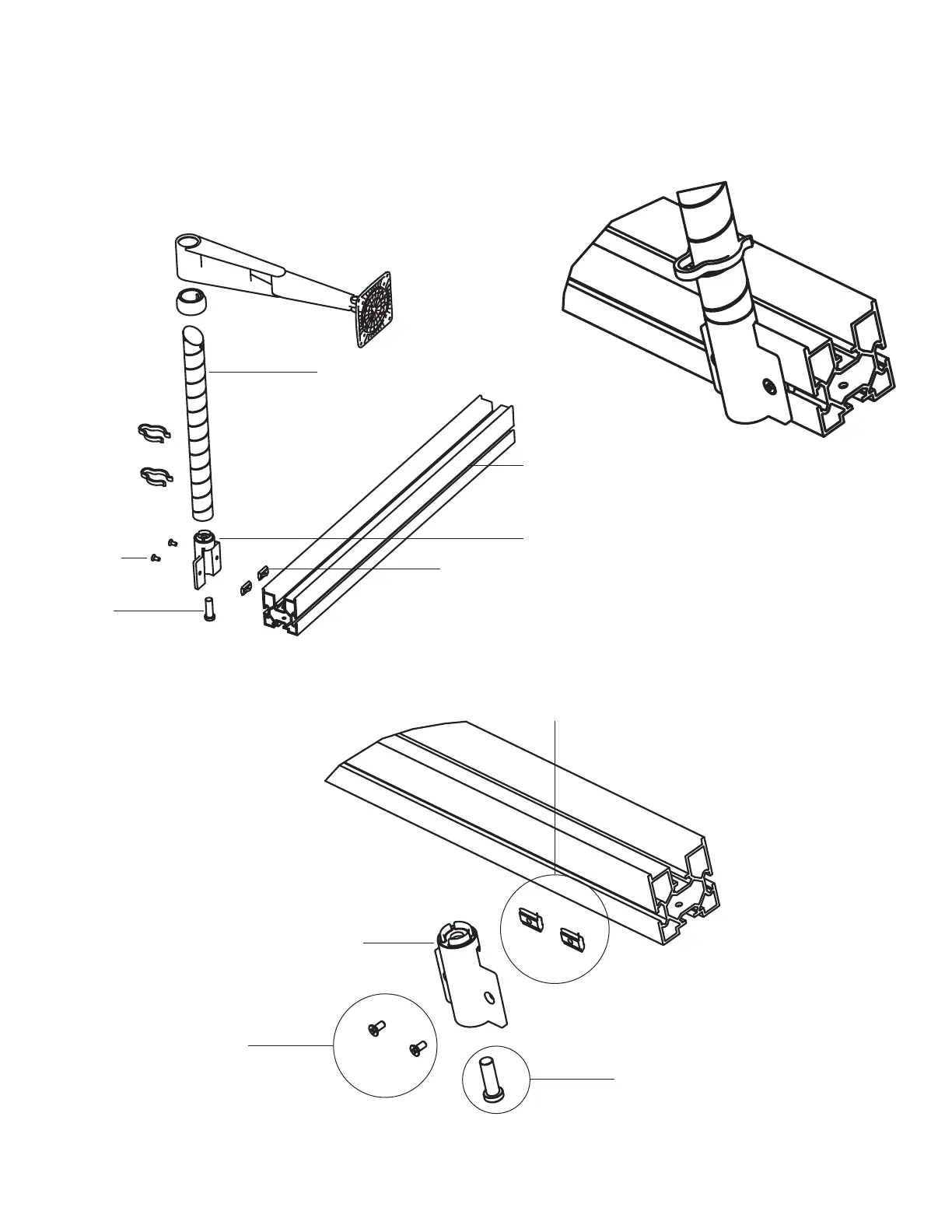

Sapper Monitor Arm and Cantilever Shelf:
Center Beam Attachment
Exploded Post Mounting Bracket Detail
Step 3
The slot in the bracket rests on
the top lip of the center beam
Step 2
Step 1
Step 4
Sapper Monitor Arm
Beam Mount Assembly
Exploded Sapper Beam-Mounted Monitor Arm
Sapper Mast
Center
Beam
Post Mounting
Bracket (A)
Spring Nut (F)
M6 x 14mm
Machine
Screw (G)
½-13 x ¼"
Machine
Screw (E)
