Installation Gauge (YBIG- Package Qty of 5)
Application #1:
Used to position tops over rails. Can also be used
to position rail locations over peds, and rails at
Fence brackets, both relative to the top position.
V cutout in guide sits snug to the side of the rail,
while the edge of the top tab aligns with the edge
of the desk top. Only works when the legs are
table desk legs that match the depth of the top
OR desk legs that are 3" smaller than the depth
of the top. The designated distance is 6
5
/
8
" from
the edge of the top to the centerline of the rail.

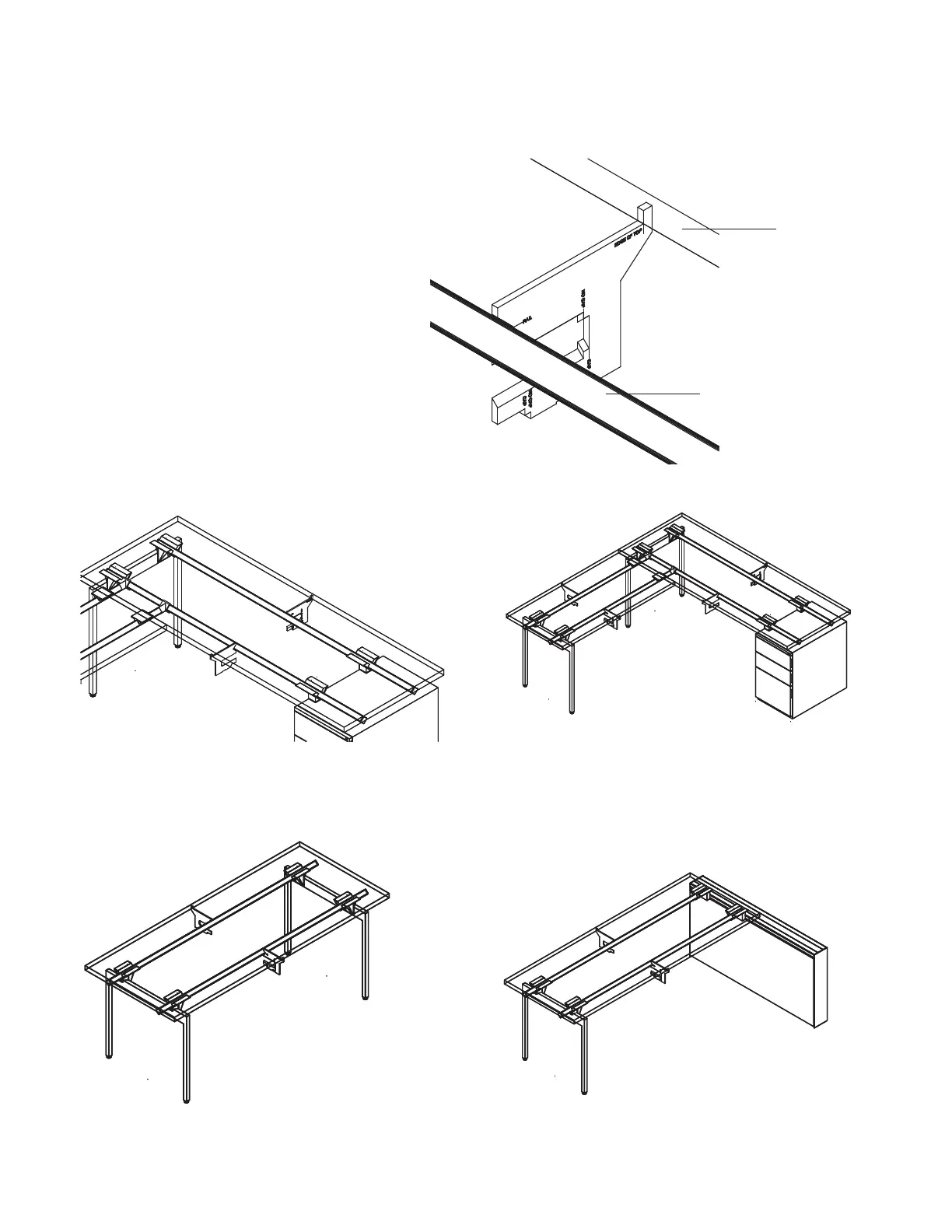

Typical Application
Position 1 Detail
Rail
Worksurface
Front Edge
Desk with Return
Freestanding Desk
Desk to Fence
