Installation Gauge (YBIG- Package Qty of 5)
Application #2:
Used to position the leg assembly from the end of
the rail, when the design is to have the leg inset
5 ½" from the end of the desk top. Recessed
part of the guide sits up against the end of a
rail (with or without end cap) and the end of the
guide sits against the outside edge of the cradle.
Can also be used for big tables if there are no
extension tops or extension cabinets. Cannot
be used for legs that are under a "linked" desk
(the shared leg), tables with extension tops or
cabinets, or desk ends where returns or bridges
are located. Will not work with table desk legs.
Desk with Return
Desk to Fence Freestanding Desk
Cradle
Gauge
Gauge
Gauge
Gauge
Gauge
Support Leg

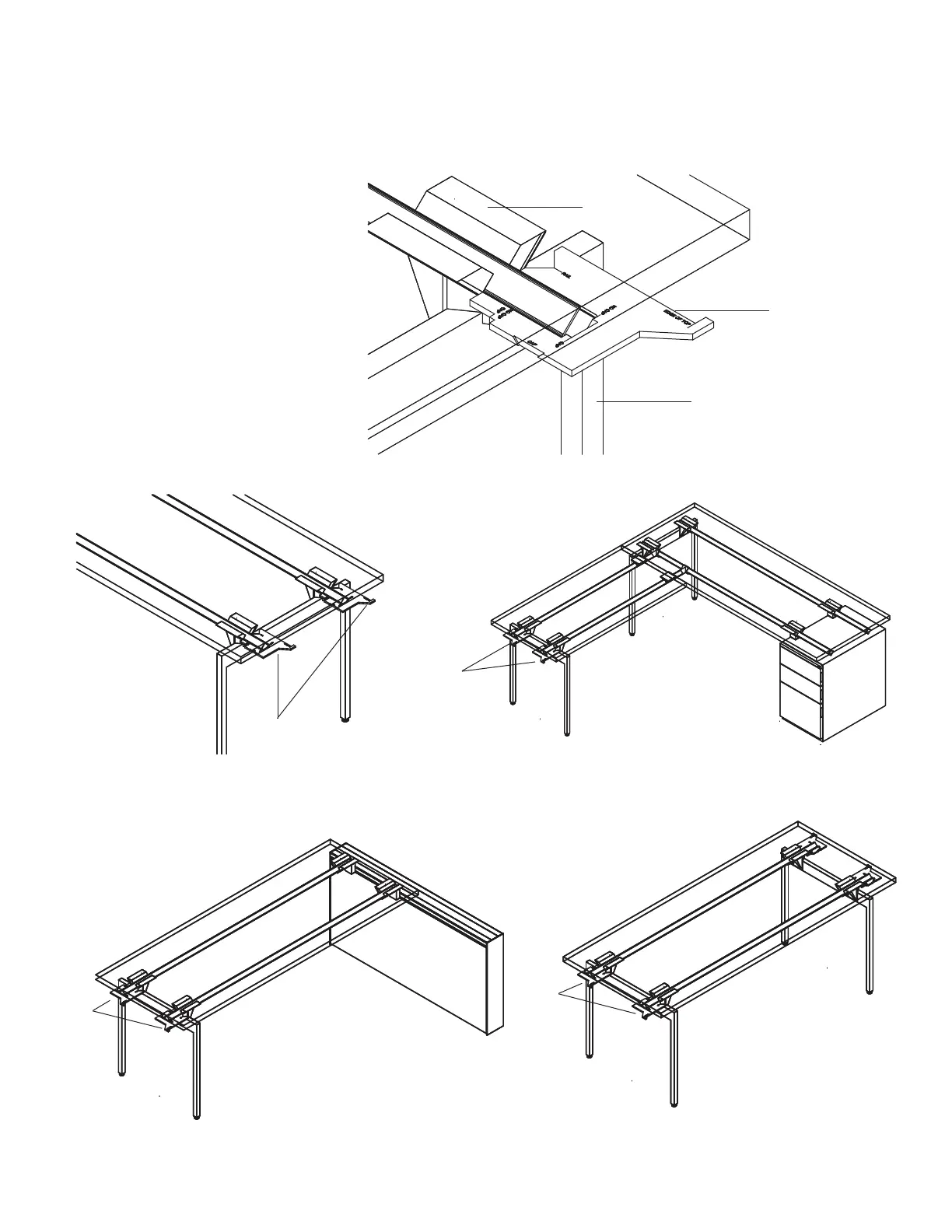

Position 2 Detail
Typical Application
