Installation Gauge (YBIG- Package Qty of 5)
Application #3:
Rail end cap is designed to sit proud of the cradle
by approximately
1
/
16
", so that the end of the rail
and leg are 1 ½" from the end of the top. Guide
is used to dimension from the outside of the rail
end cap to the outside edge of the cradle. Must
be used when the leg is placed at 1 ½" from
the edge of the top, such as when a bridge or
return is to be used to ensure the right location
for the return/bridge rails. Will also locate the
outside edge of the rail and spacer in the Fence
end support bracket (YBAFE25 & YBAFE28).

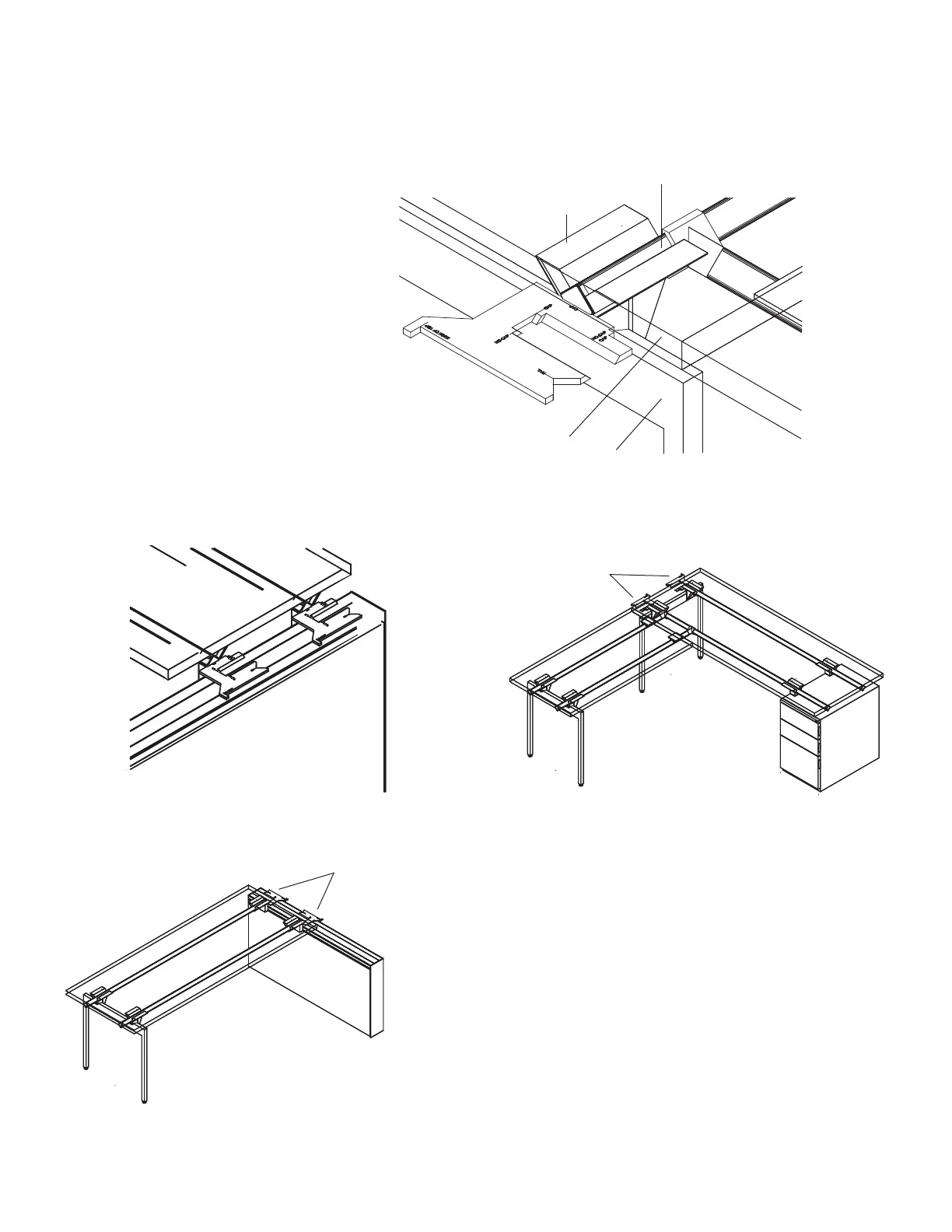

Position 3 Detail
Typical Application
Desk with Return
Desk to Fence
Cradle
Worksurface
Edge
Support Leg
Gauge
Gauge
Rail
To Next Page
