36
35

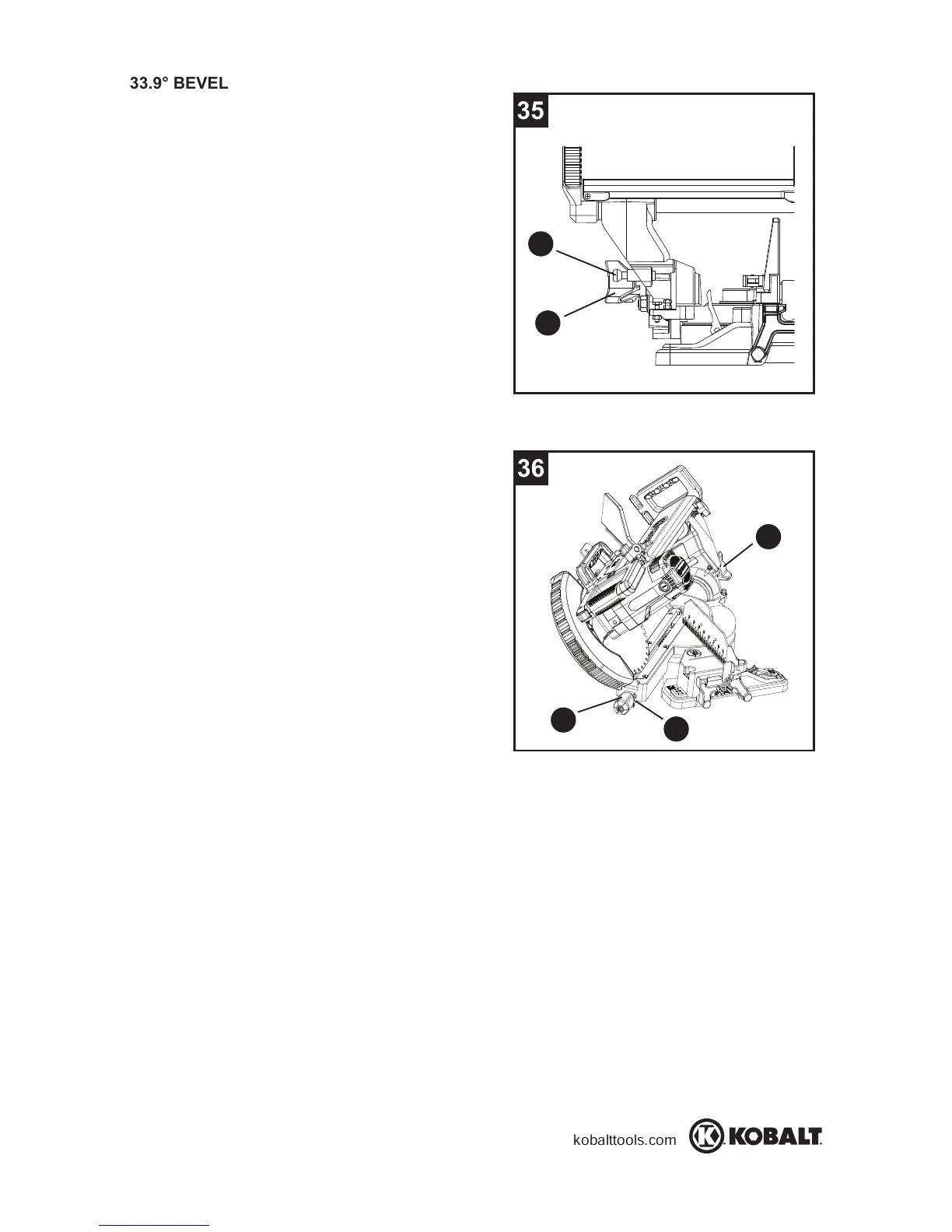

33.9° BEVEL DETENT PIN FOR CROWN
MOULDINGS (FIG. 35)
● Push the bevel detent stop pin (2) in toward
the front of the machine.
● Loosen the bevel lock handle (1).
● Rotate the cutting head until the bevel detent
pin stops the bevel angle at 33.9° on the
bevel scale.
● Tighten the bevel lock handle before you
make your cut.
COMPOUND CUT (FIG. 36)
A compound cut is the combination of a miter
and a bevel cut simultaneously.
● Extend the sliding fence as described in “
SLIDING FENCE.”
● Loosen the bevel lock handle (1) and
position the cutting head at the desired bevel
position. Lock the bevel lock handle.
● Loosen the miter handle (2). Press down the
positive stop locking lever (3) and position
the table at the desired angle. Release the
positive stop locking lever (3) and lock the
miter handle (2).
SLIDE CUTTING WIDE BOARDS UP TO 12 IN.
WIDE
CAUTION : Always use a work clamp to maintain
control and reduce the risk of workpiece damage
and personal injury.
To avoid injury:
● Let the blade reach full speed before cutting.
This will help reduce the risk of a thrown
workpiece.
● Do not make crosscuts by lowering the blade
and pulling the saw head through the wood
toward you. The blade may try to climb up
on top of the workpiece, causing the cutting
assembly and spinning blade to kick back
forcefully.
