BEFORE LEAVING THE SAW
● Never leave tool running unattended. Turn
power OFF. Wait for all moving parts to stop.
● Make workshop childproof. Lock the shop.
Disconnect master switches. Store tool
away from children and other unqualified
users.
To avoid injury from materials being thrown,
always unplug the saw to avoid accidental
starting and remove small pieces of material
from the table cavity.

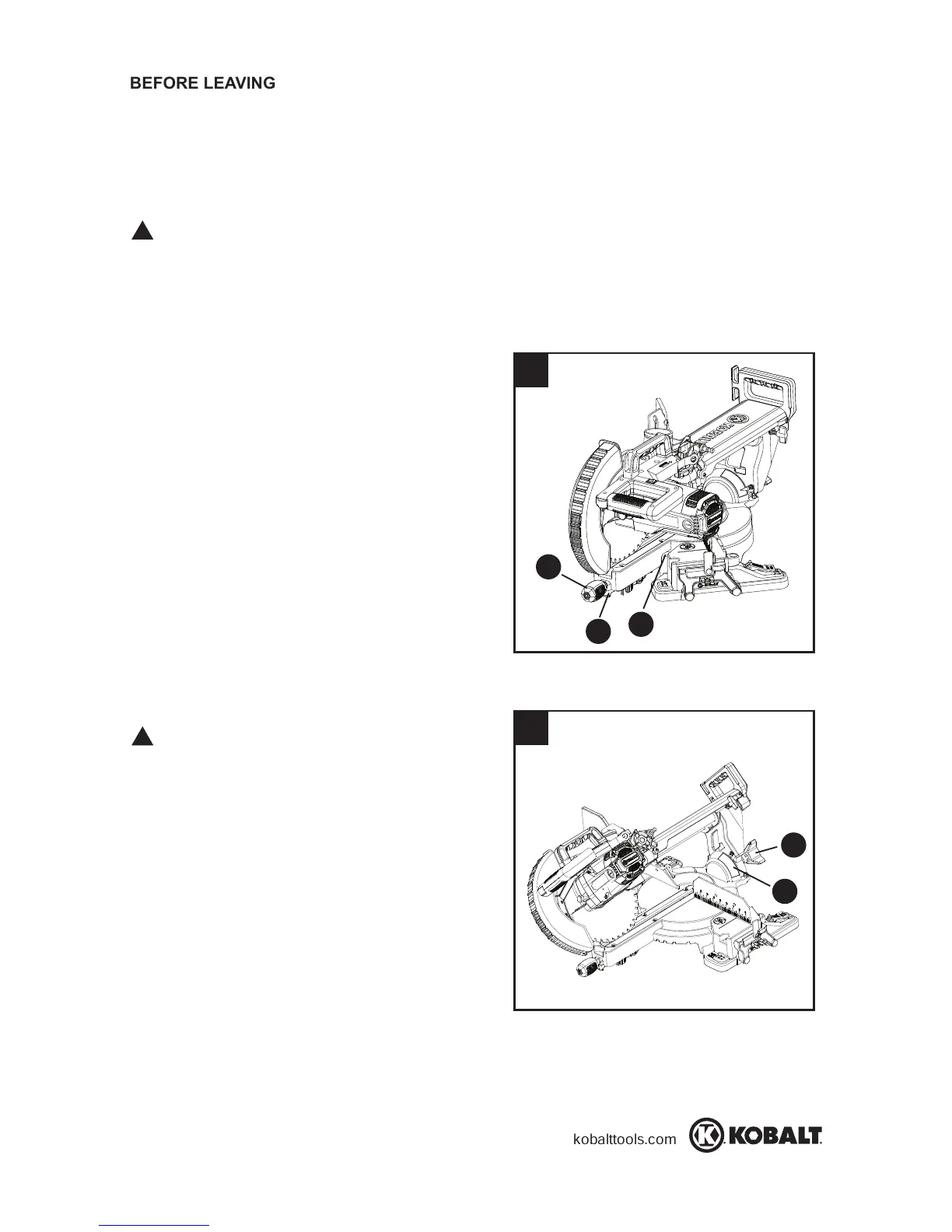

MITER CUT (FIG. 33)
● When a miter cut is required, unlock the
miter table by turning the miter handle (1
)
counterclockwise.
● While holding the miter handle, press down
on the positive stop locking lever (2).
● Rotate the miter table to the right or left with
the miter handle.
● When the table is in the desired position, as
shown on the miter scale (3), release the
positive stop locking lever and tighten the
miter handle. The table is now locked at the
desired angle. Positive stops are provided
at 0°, 15°, 22.5°, 31.6° and 45°.
IMPORTANT: Always tighten the miter handle
before performing a cut.
BEVEL CUT (FIG. 33, 34)
The sliding fence must be extended when
making any bevel cut. Failure to extend the
sliding fence will not allow enough space for
the blade to pass through which could result in
serious injury. At extreme miter or bevel angles,
the saw blade may also contact the fence.
● When a bevel cut is required, loosen the
bevel lock handle (
1
) by turning it clockwise
(Fig. 33).
● Tilt the cutting head to the desired angle, as
shown on the bevel scale (2) (Fig. 34).
● The blade can be positioned at any angle,
from a 90° straight cut (0° on the scale) to a
45° left bevel. Tighten the lock handle (1) to
lock the cutting head in position. Positive
stops are provided at 0°, 33.9° and 45°.
NOTE: The saw comes with a 33.9° bevel
detent pin for setting up crown moulding cuts
when the angle of the walls equals 90
o
.
33
34
WARNING
!
WARNING
!
1
2
3
1
2
