22
23
1

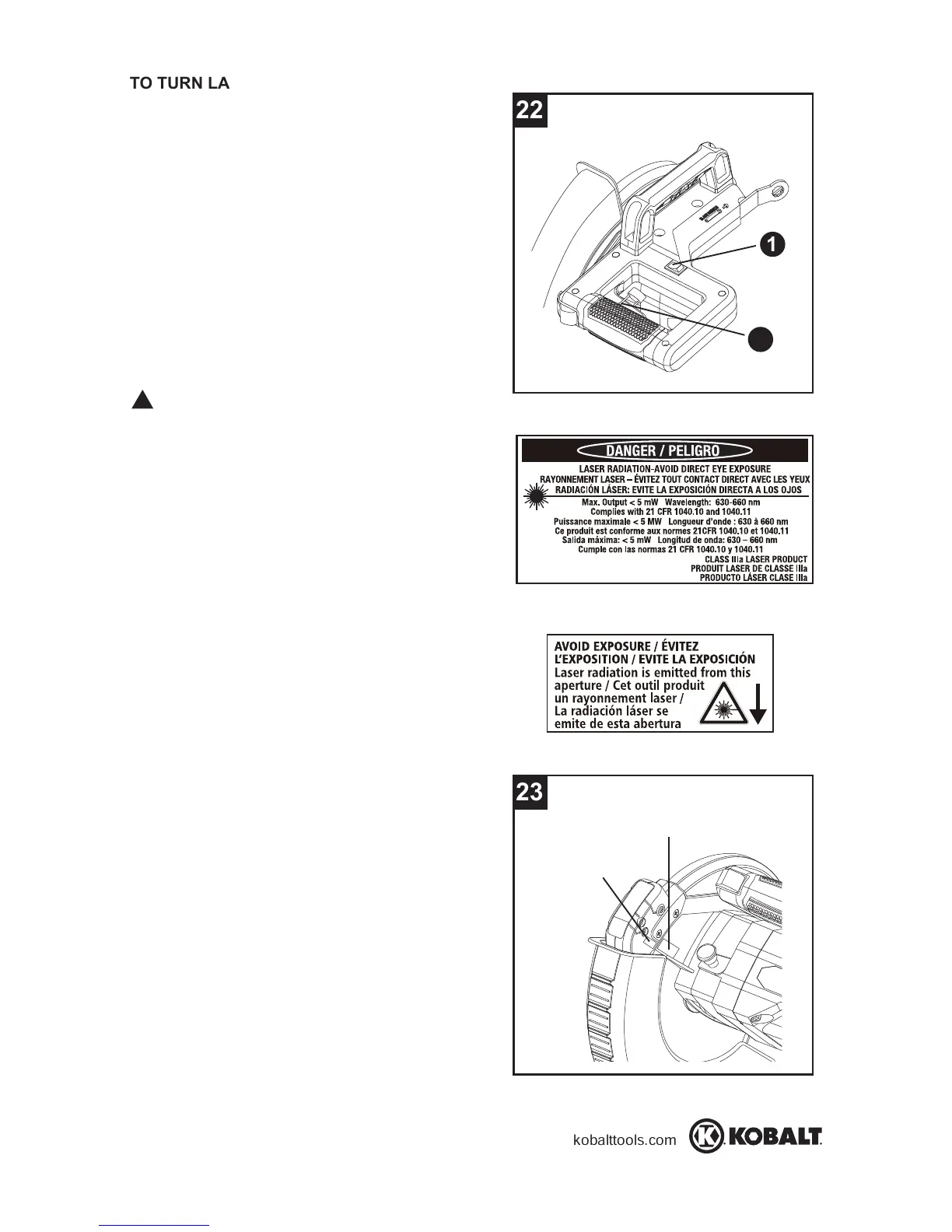

TO TURN LASER GUIDE ON (FIG. 22)
● To turn laser on, press on/off rocker
s
w
itch (1) to “ON” position.
● To turn laser off, press on/off rocker
switch (1) to “OFF” position.
ALIGNING THE LASER GUIDE (FIG. 22, 24)
The laser beam must always be correctly
aligned with the blade to ensure straight, even
cutting. Your tool is equipped with a laser cutting
guide that uses a Class IIIa laser beam. The
laser beam will enable you to preview the saw
blade path on the stock to be cut before starting
the miter saw. The saw must be connected to
the power source and the laser on/off switch
must be turned on for the laser line to show.
When doing any laser guide adjustments,
always insert a padlock or chain with padlock
(not included) through the hole (2) in the trigger
switch, locking the tool’s switch and preventing
turning the machine on. Do not remove the
padlock from the ON/OFF switch until all laser
adjustments are completed.
AVOID DIRECT EYE CONTACT
● A laser is radiated when the laser guide
is turned on. Avoid direct eye contact.
● Laser Warning Label: Max. Output < 5
mW Wavelength: 630-660 nm, Complies
with 21 CFR 1040.10 and 1040.11. Class
IIIa Laser Product.
● Laser Aperture Label: AVOID
EXPOSURE: Laser radiation is emitted
from this aperture. (Fig. 23)
● NOTE: All the adjustments for the
operation of this machine have been
completed at the factory. Due to
normal wear and use, some occasional
readjustments may be necessary.
● CAUTION: Use of controls or
adjustments or performance of
procedures other than those specified
herein may result in hazardous radiation
exposure.
● CAUTION: The use of optical instruments
with this product will increase eye
hazard.
● WARNING: Do not attempt to repair or
disassemble the laser. If unqualified
persons attempt to repair this laser
product, serious injury may result. Any
repair required on this laser product
should be performed by an authorized
service center personnel.
2
Laser aperture
label
Laser warning label
WARNING
!
