To avoid injury, do not connect this miter saw to
a power source until it is completely assembled
and adjusted and you have read and understood
the operator’s manual.

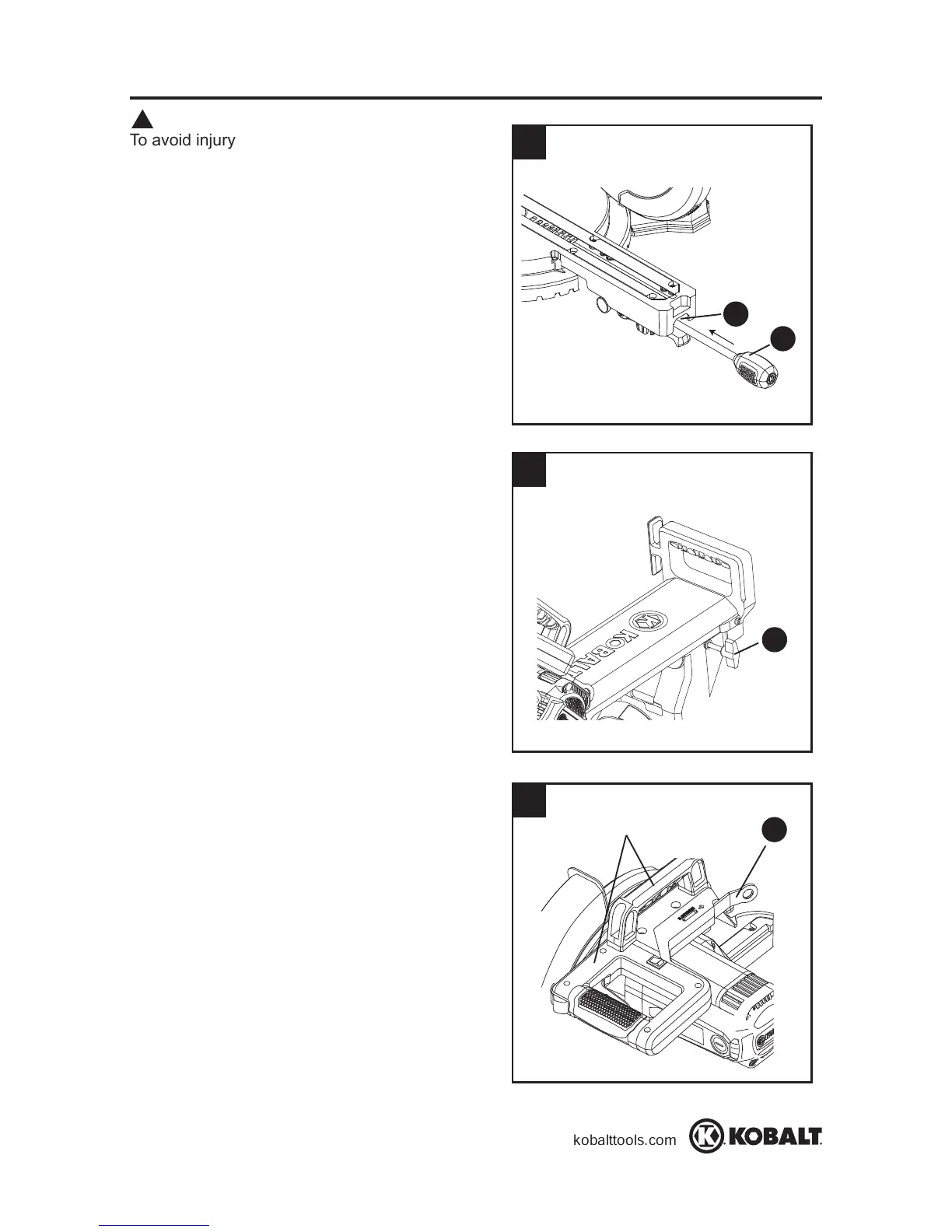

INSTALLING THE MITER HANDLE (FIG. 1)
● Thread the miter handle (E) into the hole
located at the front of the miter saw (A).
UNLOCKING THE SLIDE CARRIAGE (FIG. 2)
After removing the saw from the carton,
loosen the slide carriage lock knob (1). When
transporting or storing the miter saw, the slide
carriage should always be locked in position.
The slide carriage lock knob (1) is located on the
right side of the slide carriage.
SAW BLADE WRENCH (FIG. 3)
● For convenient storage and prevention of
loss, there is a slot in the rear of the switch
handle for storing the blade wrench (D)
when not in use.
ASSEMBLY INSTRUCTIONS
1
E
2
3
Switch handle
WARNING
!
A
1
D
To Next Page
