40
41
42

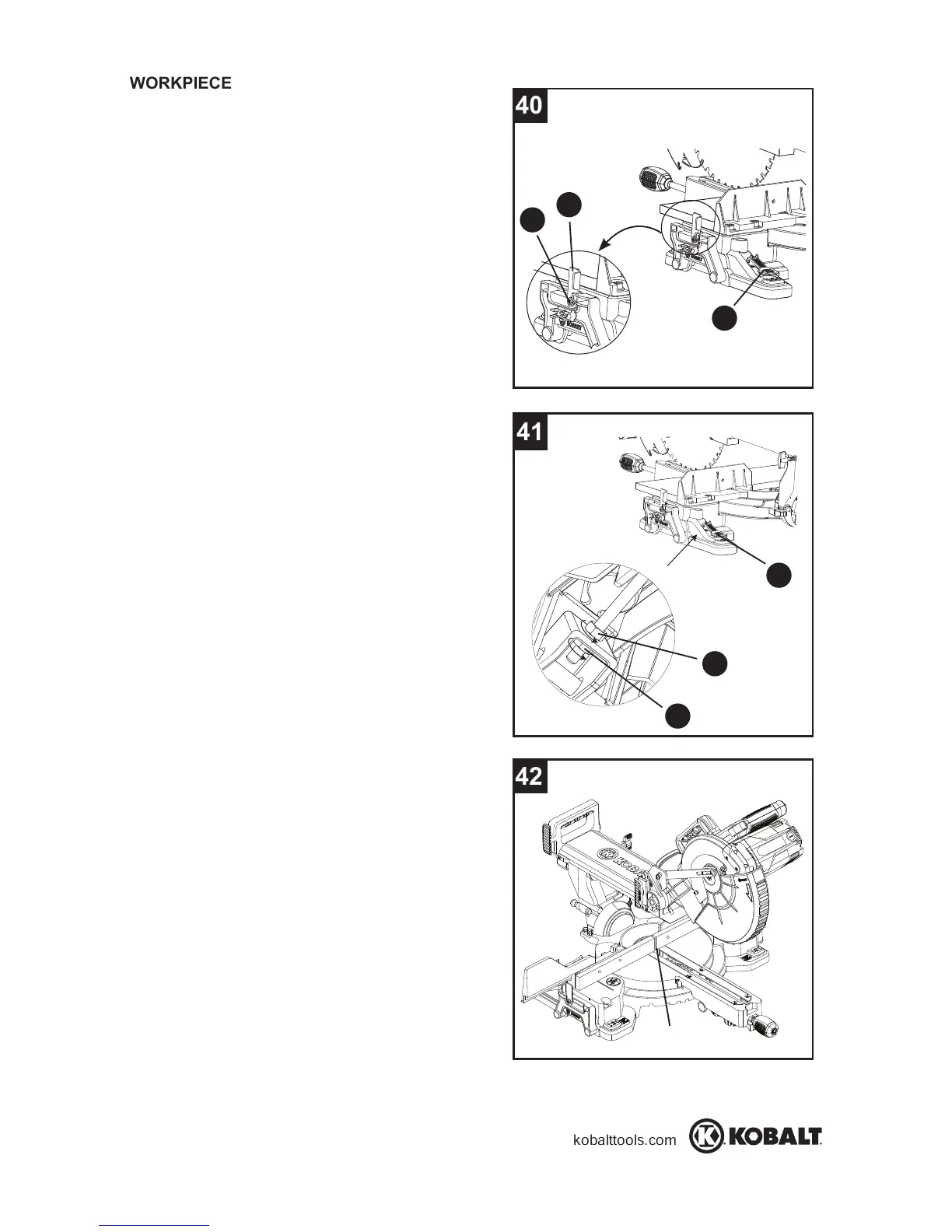

WORKPIECE SUPPORT AND REPETITIVE
CUTTING USING THE STOP PLATE
(FIG. 40, 41)
NOTE: Long pieces need extension wing
support.
● Lift up the lock lever (1) to unlock the
extension table. Slide the extension wing
to desired position and push down the lock
lever to tighten. If the lock lever (1) is not
tight enough, adjust the nuts (4, 5) 1/4 turn
counterclockwise (Fig. 41).
● The stop plate (3) is designed for repetitive
cutting. Only use one stop plate (3) at a time.
Rotate the stop plate (3) to vertical position
and tighten the locking screw (2). If the stop
plate is too tight to rotate, loosen the locking
screw (2) 1/4 turn.
AUXILIARY WOOD FENCE (FIG. 42)
When making multiple or repetitive cuts that
result in cut-off pieces of one inch or less, it is
possible for the saw blade to catch the cut-off
piece and throw it out of the saw or into the
blade guard and housing, possibly causing
damage or injury. To minimize this, an auxiliary
wood fence can be mounted to your saw.
Holes are provided in the saw fence to attach
an auxiliary wood fence. This fence is to be
constructed of straight wood approximately 3/4
in. thick by 2-1/2 in. high by 18 in. long.
Attach the wood fence securely and make a full
depth cut to make a blade slot.
1
3
2
1
4
5
Blade Slot
