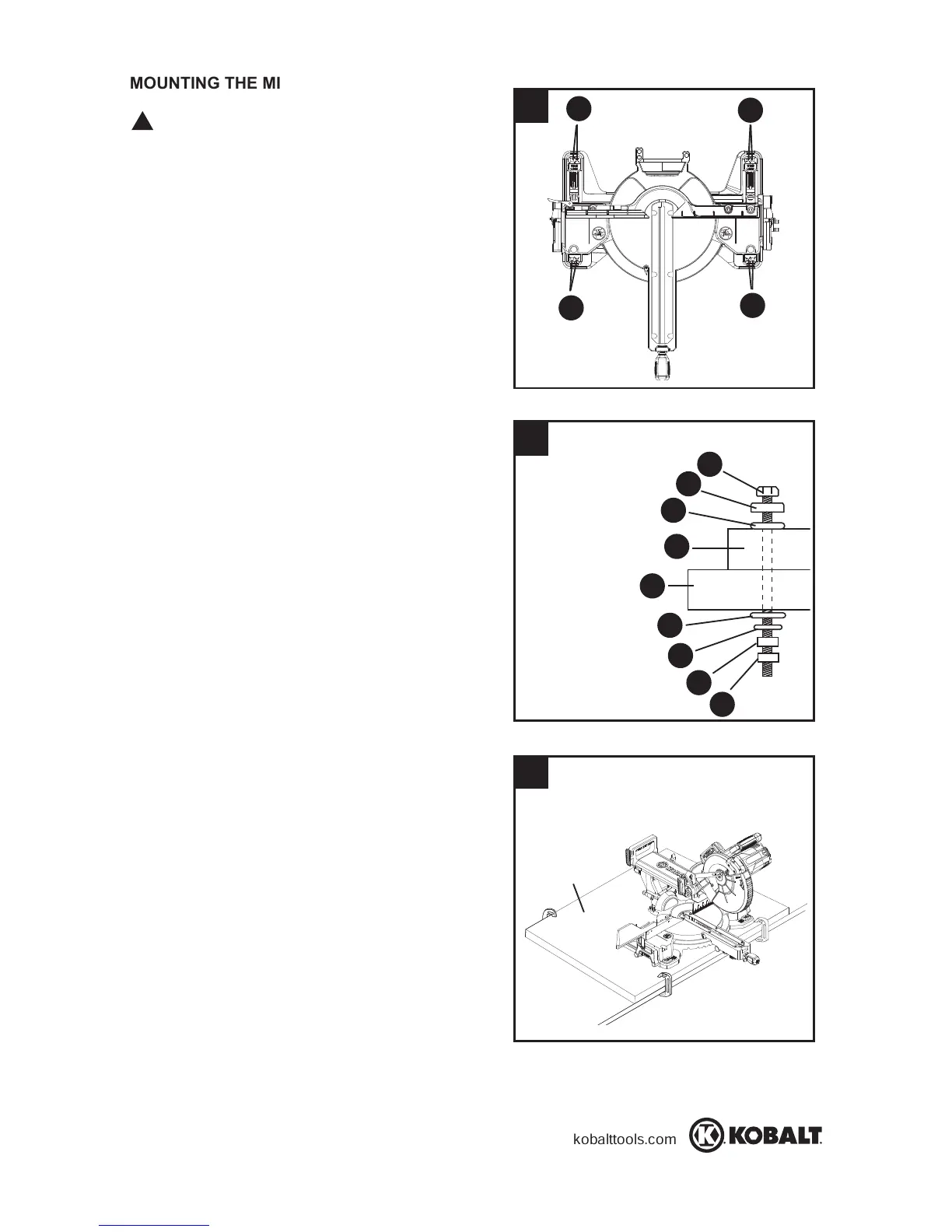

MOUNTING THE MITER SAW (FIG. 7, 8, 9)
To avoid injury from unexpected saw movement:
● Disconnect the power cord from the outlet
and lock the cutting head in the lower position
using the stop latch.
● Lock the slide carriage in place by tightening
the slide carriage lock knob.
● To avoid back injury, lift the saw by using the
designated carrying handles located on the
top of the machine. Bend with your knees,
not your back.
● Never carry the miter saw by the power cord
or by the switch handle. Carrying the tool by
the power cord could cause damage to the
insulation or the wire connections resulting
in electric shock or fire.
● To avoid injury from flying debris, do not
allow visitors to stand near the saw during
any cutting operations.
Mounting instructions:
● For stationary use, place the saw in the
desired location, directly on a workbench
where there is room for handling and proper
support of the workpiece. The base of the
saw has eight mounting holes (10) (Fig.7),
four 1/4 in. holes and four 3/8 in. holes.
Select the proper mounting holes based on
the size of bolts used. Bolt the base of the
miter saw (1) to the work surface (5), using
the recommended fastening method as
shown in Fig. 8.
NOTE: Mounting hardware is not included with
this tool. Bolts, nuts, washers and screws must
be purchased separately.
● For portable use, place the saw on a
3/4 in. thick piece of plywood. Bolt the base
of the miter saw securely to the plywood
using the mounting holes (10) (Fig. 7) on
the base. Use C-clamps to clamp this
mounting board to a stable work surface at
the worksite (Fig. 9).
NOTE: If a miter saw stand is used, please
follow all instructions shown in that product’s
instructions for proper mounting.
7
8
9
Portable Use
3/4 in.
plywood
WARNING
!
10
10
10
10
Stationary Use
1. Miter saw base
2. Hex head bolt
3. Rubber washer
4. Flat washer
5. Work surface
6. Flat washer
7. Lockwasher
8. Hex/Lock nut
9. Jam nut
2
4
1
3
5
6
7
8
9
