TP-6322 9/04 43Section 7 Service Parts

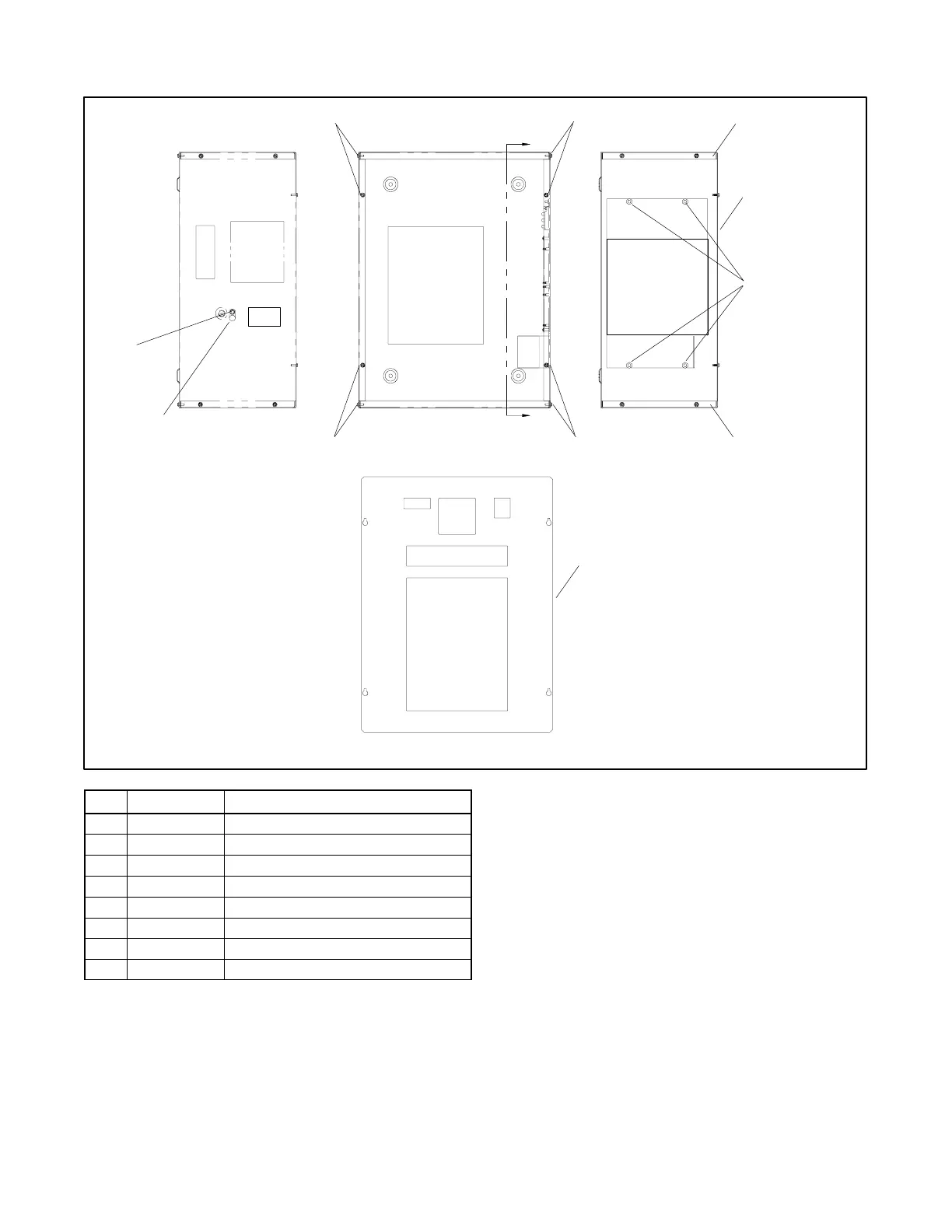

7.5 Enclosure, NEMA Type 1
DP-295000
A
A
SECTION A--A
2
3
11
1
1
7
8
5
2
4
6
Item Part Number Description
1 X-67-52 Screw, hex washer, thread-forming (16)
2 353617 Panel, ATS, top and bottom (2)
3 353616 Box, ATS
4 # Nut, hex, 10-32 (4)
5 353615 Cover, ATS
6 362126 Lug, terminal, copper
7 X-22-11 Washer, lock, .262 ID x .469 in. OD
8 X-81-8 Nut, hex, 1/4-20
# Common hardware. Procure locally.
