Kohler KBS - Page 72

TP-6835 9/1772 Section 7 Bypass, Isolation, and Manual Transfer
136e
1. Handles
2. Locking pin with clevis pin
3. Support leg (fold down and lock; adjust length to touch floor)
4. Rail support carriage
1
2
4
23
3

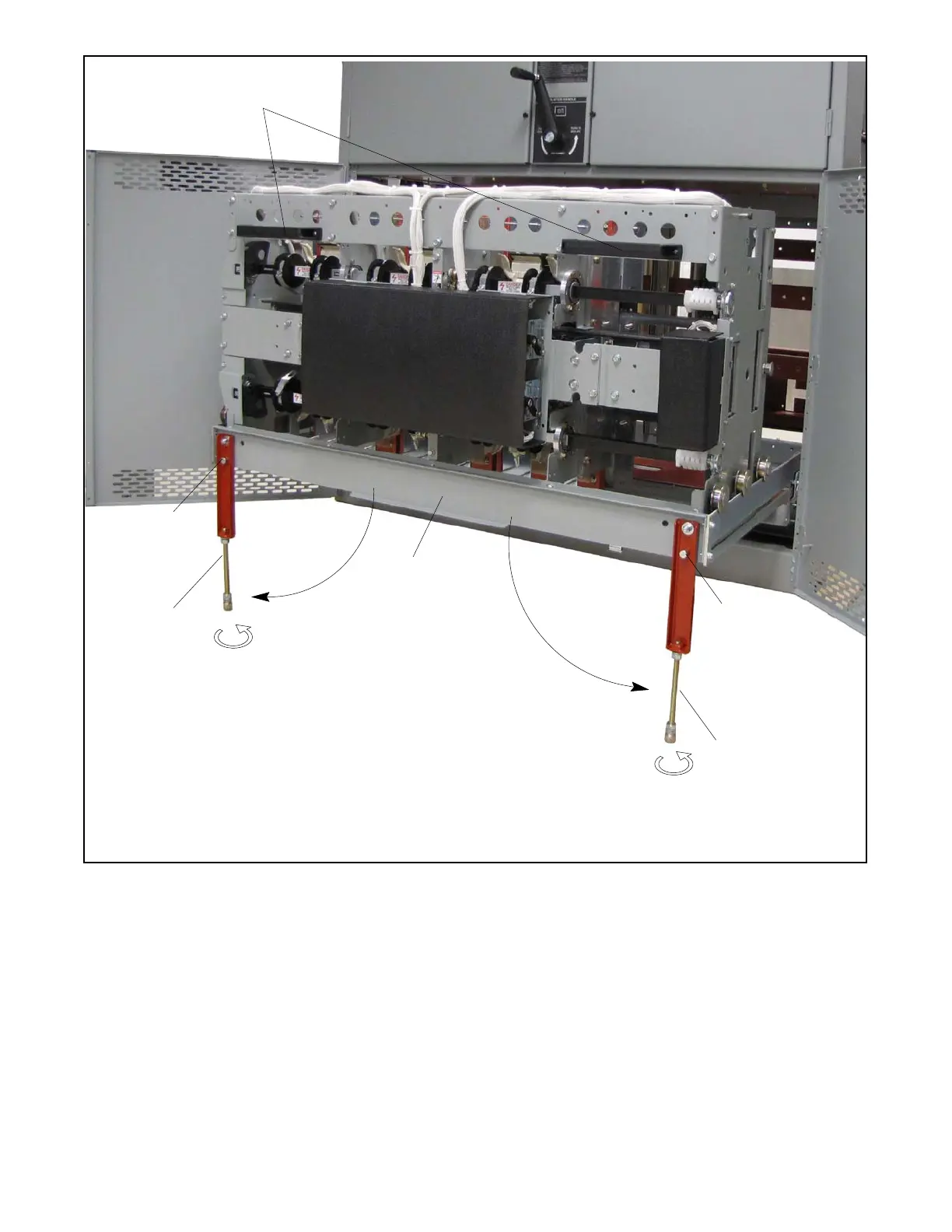

Figure 7-60 4000 Amp Transfer Switch Isolated and Pulled Out for Inspection
