Kohler KBS - 150-600 Amp Models; Bypassing the ATS, 150-600 Amp Models

TP-6835 9/1752 Section 7 Bypass, Isolation, and Manual Transfer
7.2 150--600 Amp Models
Read the information and instructions in Sections 7.1.1
and 7.1.2 before proceeding.
7.2.1 Bypassing the ATS,
150--600 Amp Mo dels
This procedure explains how to bypass the closed
transfer switch contacts. Bypassing is required before
the transfer switch can be tested or isolated.
D The bypass switch handle must be in the OPEN
position (green window indicator). See Figure 7-5.
D The Isolation Handle must be in the CONN
(connected) position. Check the position window
indicator. See Figure 7-6.
D The TS Connected light must be on. See Figure 7-7
and Figure 7-8.
Note: You can only bypass to the same source that is
connected to the transfer switch. A solenoid
interlock prevents connection to the wrong
source.
Window indicator
shows green
when the ATS is
not
bypassed.
Window indicator
shows yellow when
ATS is bypassed to
Emergency.
Window indicator
shows yellow when
ATS is bypassed to
Normal.
Bypass handle

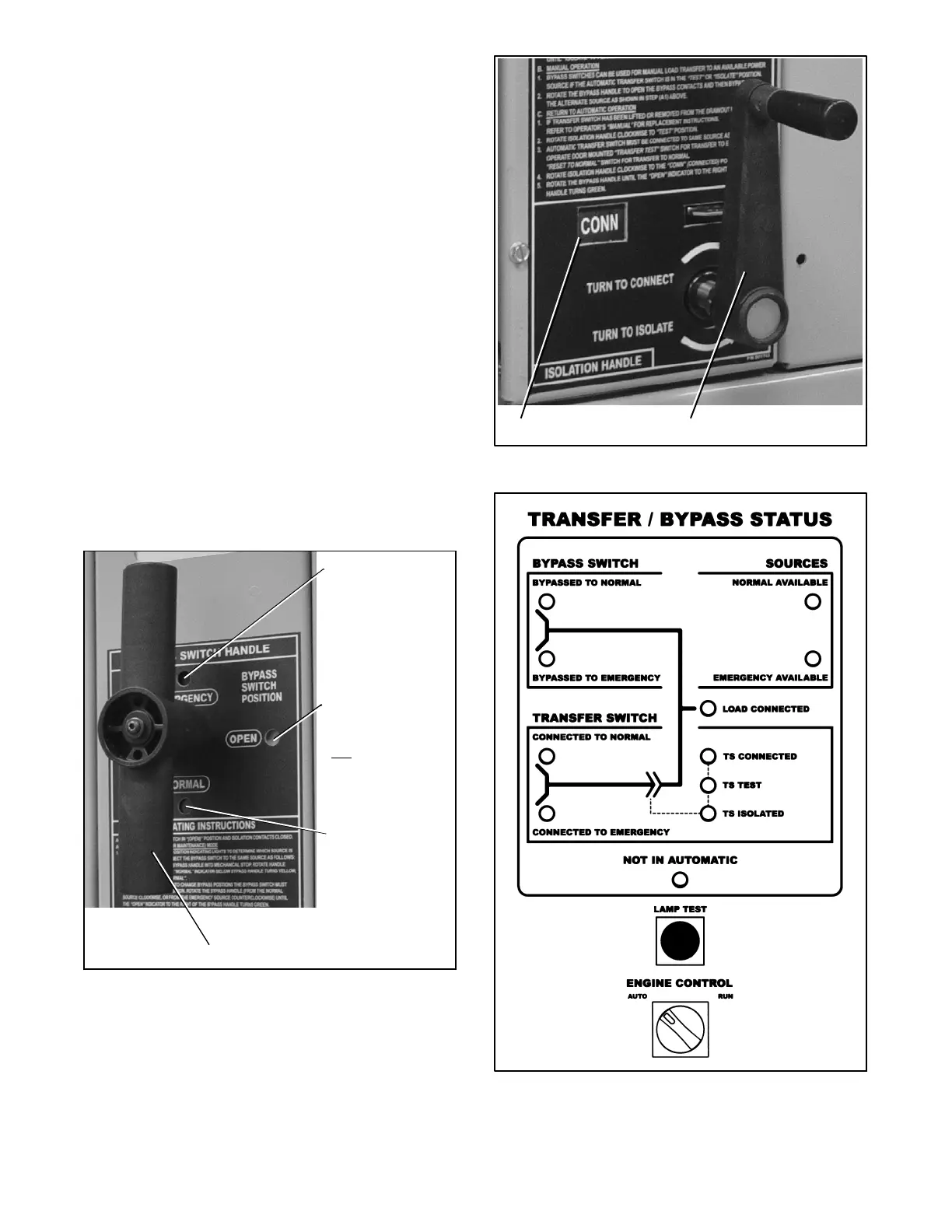

Figure 7-5 Bypass Handle and Three-Position
Window Indicators
Position window Isolation handle
Figure 7-6 Isolation Handle in CONN Position
Figure 7-7 Status Lights and Engine Control
