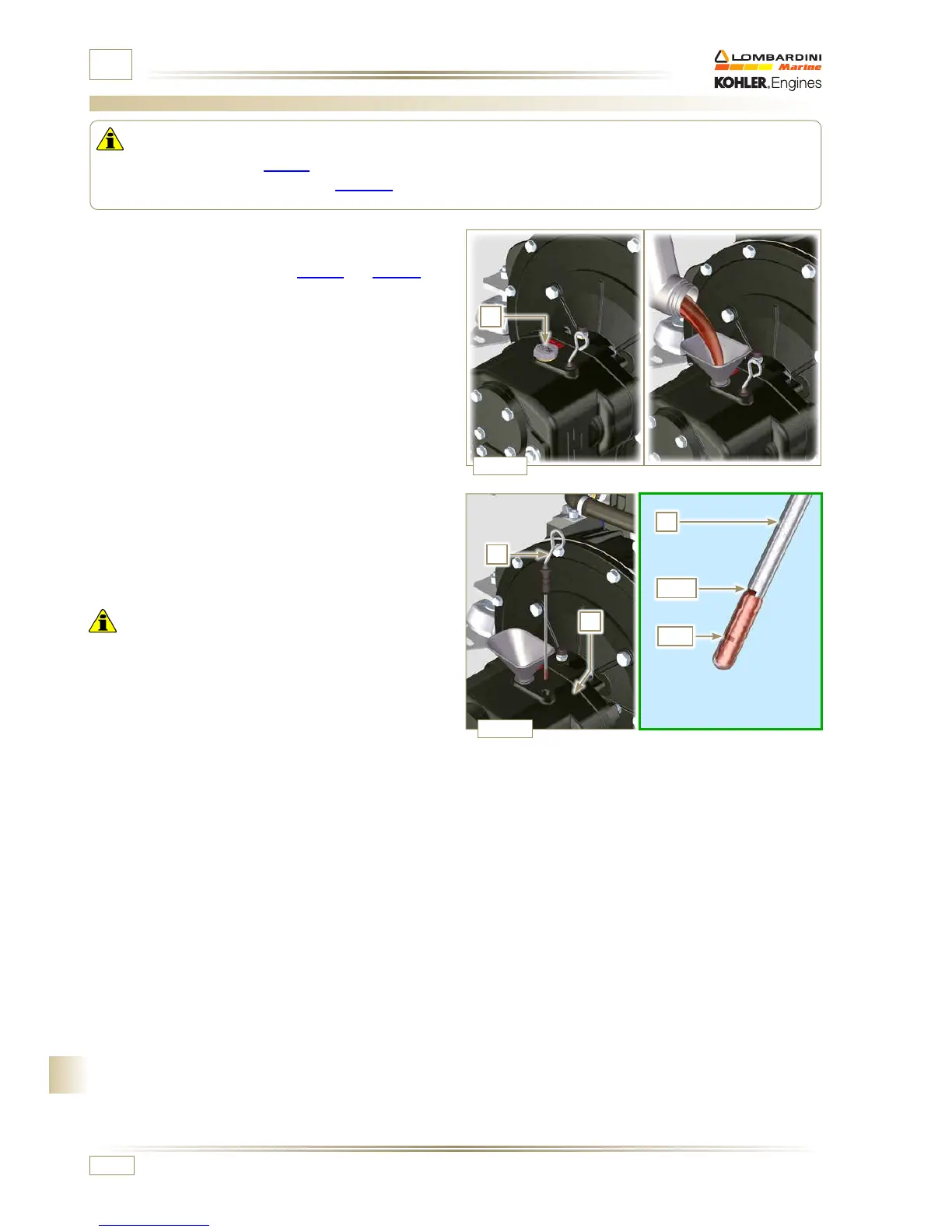

4.6 Reversing gear oil top-up
1 - Loosen the oil filler cap A.
2 - Add the type oil recommended (Tab. 2.1 and Tab. 2.4).
3 -
Remove the oil dipstick B and check that the level is up to
but does not exceed the MAX .
4 - If level is not at the MAX level, add additional oil and reinsert
the dipstick correctly in the reversing gear seat C.
5 - Re-tighten the cap A.
Important
• Do not exceed the MAX level on the dipstick.
• Do not use the engine with the oil level below the MIN.
Important
• For safety precautions see Par. 2.4.
• Before proceeding with operation, read Par. 3.2.2.
• Place engine on horizontal surface to ensure accurate
measurement of filling.
