6
30
_00
Fig. 6.11
B
B
Fig. 6.10
Fig. 6.7
A
A
C A F B
G
D
D
E
B
C
CA
B
Fig. 6.9Fig. 6.8
ED0053031100
INFORMATION ABOUT REPLACEMENTS
EN
6.5 Coolant replacement
1 -
Undo cap A to drain all liquid from the system contained in
the engine crankcase ducts into an appropriate container
(Par. 3.5).
Important
Perform the operations described in Par. 5.7 before
proceeding.
Replace gasket C.
2 - Screw cap A onto crankcase B, inserting gasket C
(tightening torque 50 Nm).
3 - Perform the operations described in Par. 4.7.

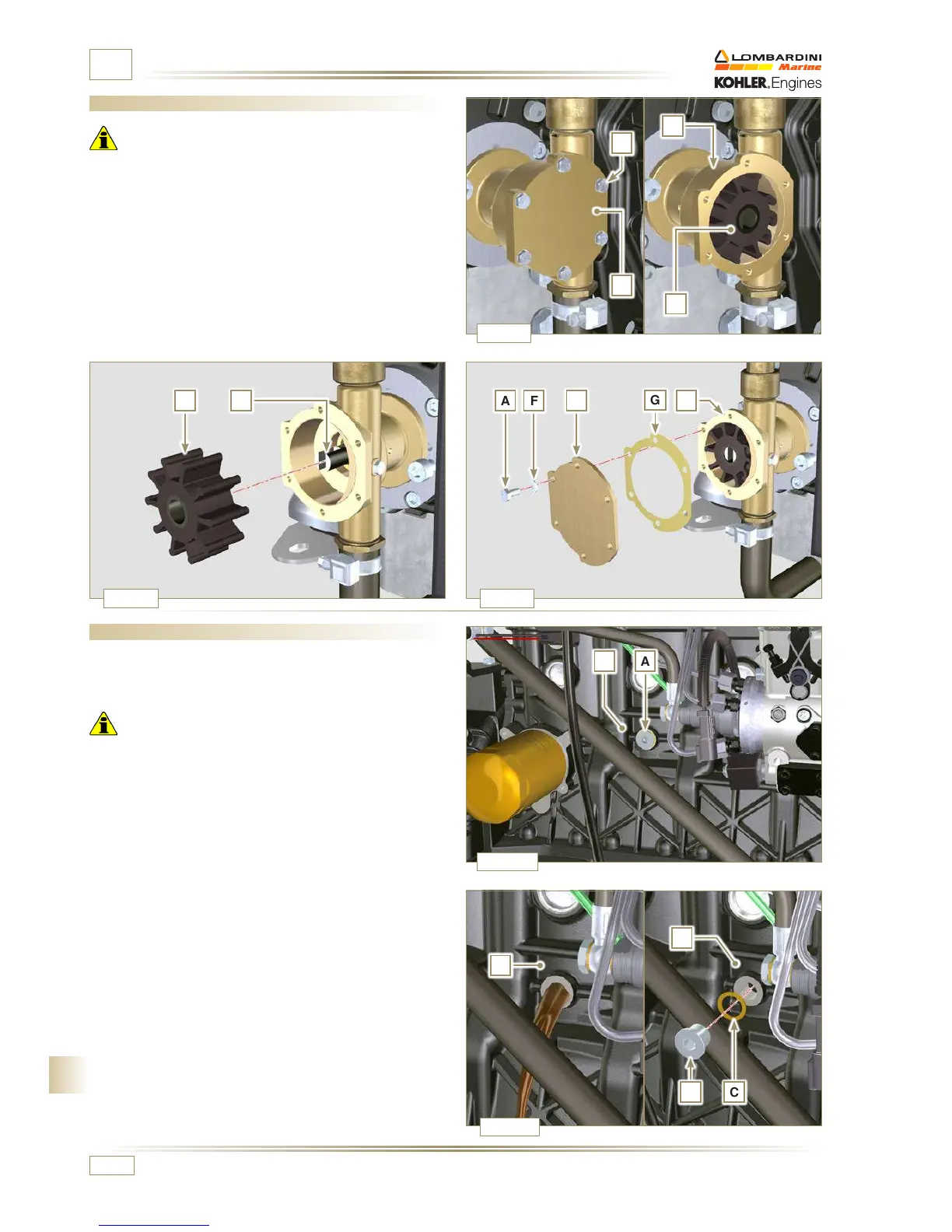

6.4 Water pump impeller replacement
Important
Replace gasket G.
1 - Loosen capscrews A and remove cover B.
2 - Remove impeller C from pump body D.
3 - Grease the new impeller C.
4 - Insert the new impeller C onto shaft E.
5 - Fasten cover B with capscrews A and washers F and insert
gasket G between cover B and pump body D.
