K20s

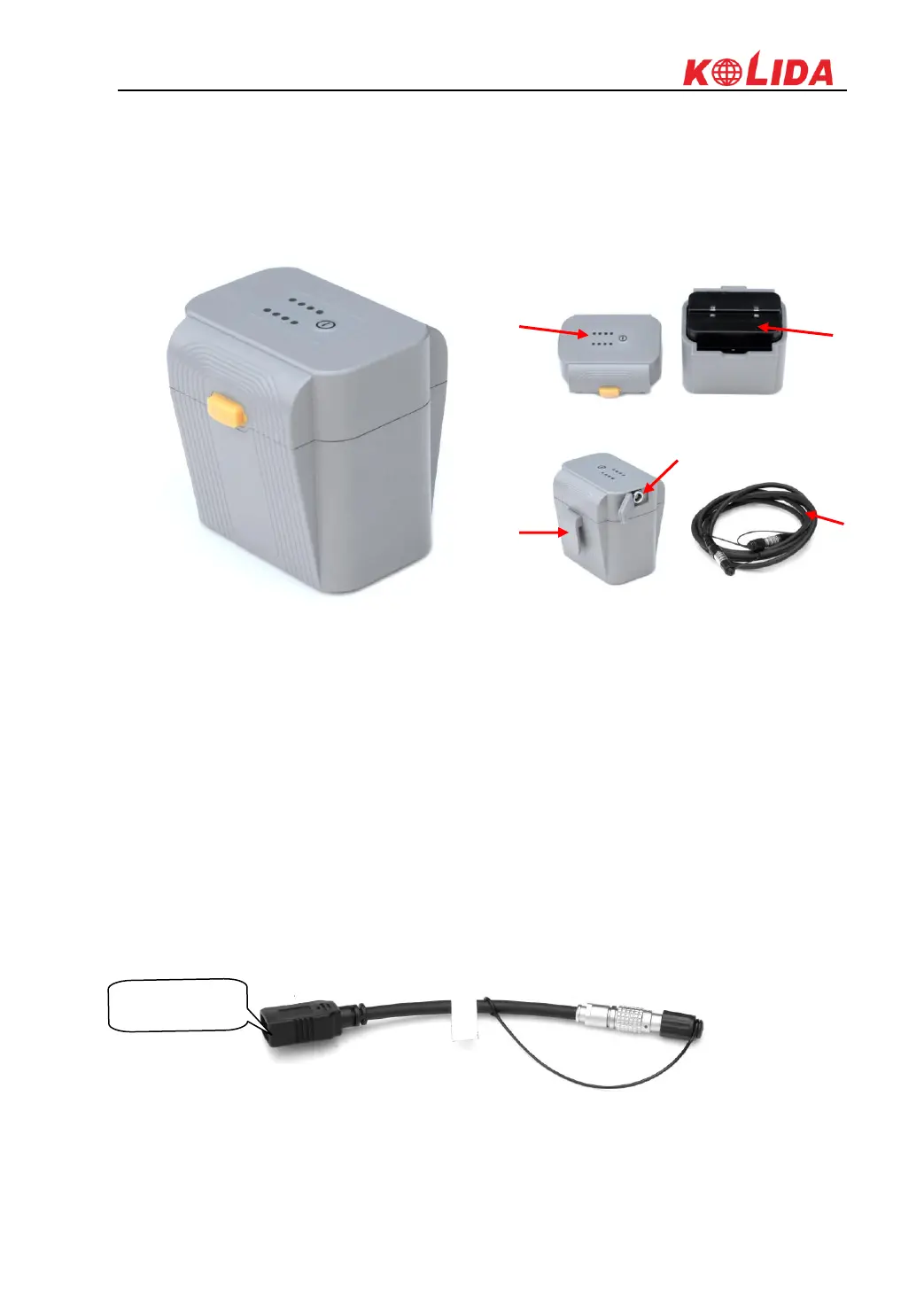

§5.2 Portable Battery Case (power bank)
Battery case SA6003 is an optional accessory, able to contain 4 batteries, provide extra power
supply to base or rover.
①——Indicators, the indicators indicates how much power remain by pressing the power
button.
②——The combination batteries installed into the portable power source
③—— Hang buckle, hang the battery package onto tripod
④—— 7-pin port, connect the cable with receiver for power supply.
⑤—— Power supply cable, this cable is used to connect the power source to receiver.
§5.3 Other Cables and Accessories
7-pin to OTG cable
This cable is used to connect an external storage directly to KOLIDA K20S for static data
storage and copy.
Communication cable
This cable is used to connect the receiver to computer for receiver debugging, differential data
checking and firmware update.
