K20s
6. How to use GPS
a) Go to \My Device\GNSSViewer and run GNSSViewer.exe

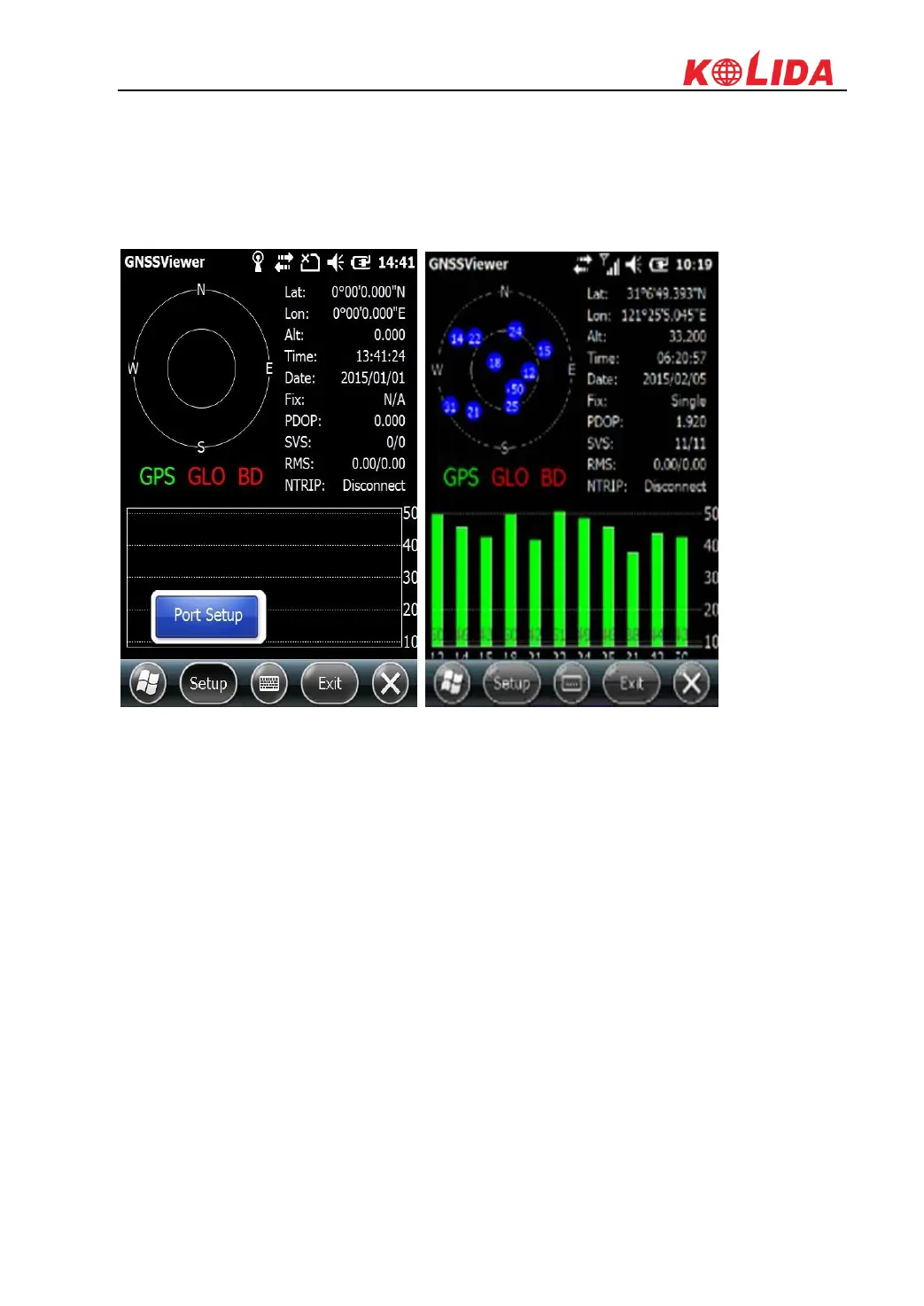

b) T17 supports COM3 and COM5 GNSS ports and its BaudRate is 9600. Choose a GPS Port
and BaudRate by clicking Setup->Port Setup as indicated below.
Click „OK ‟.
If you want to check the working status of GPS via checking or collecting software, please set
the COM port to COM6 and the baud rate to 57600.
7. Camera
a) Select „Start->Picture & Video‟, select „Camera‟ or the „camera‟ key icon to take photos.
b) Press the camera key (F3) to take photos.
c) Click screen and select „OK‟ to exit.
§4.2 Software installation and connecting
EGStar is the specific software for K20s measuring system, mainly for the collection and
calculation of the measuring points.
Before installing of EGStar, you need to install Microsoft Active Sync. After installing it on your
