ChapterⅡ Hardware Structure
In this chapter, we can have knowledge on K20s hardware structure and basic
function.
§2.1 Components of The Receiver
K20s size is 163mm in diameter and 96mm in height. The whole shell is made of magnesium
alloy material, which makes K20s more rugged and durable. Two physical buttons and one
1-inch OLED screen in the front panel makes K20s easy to operate.

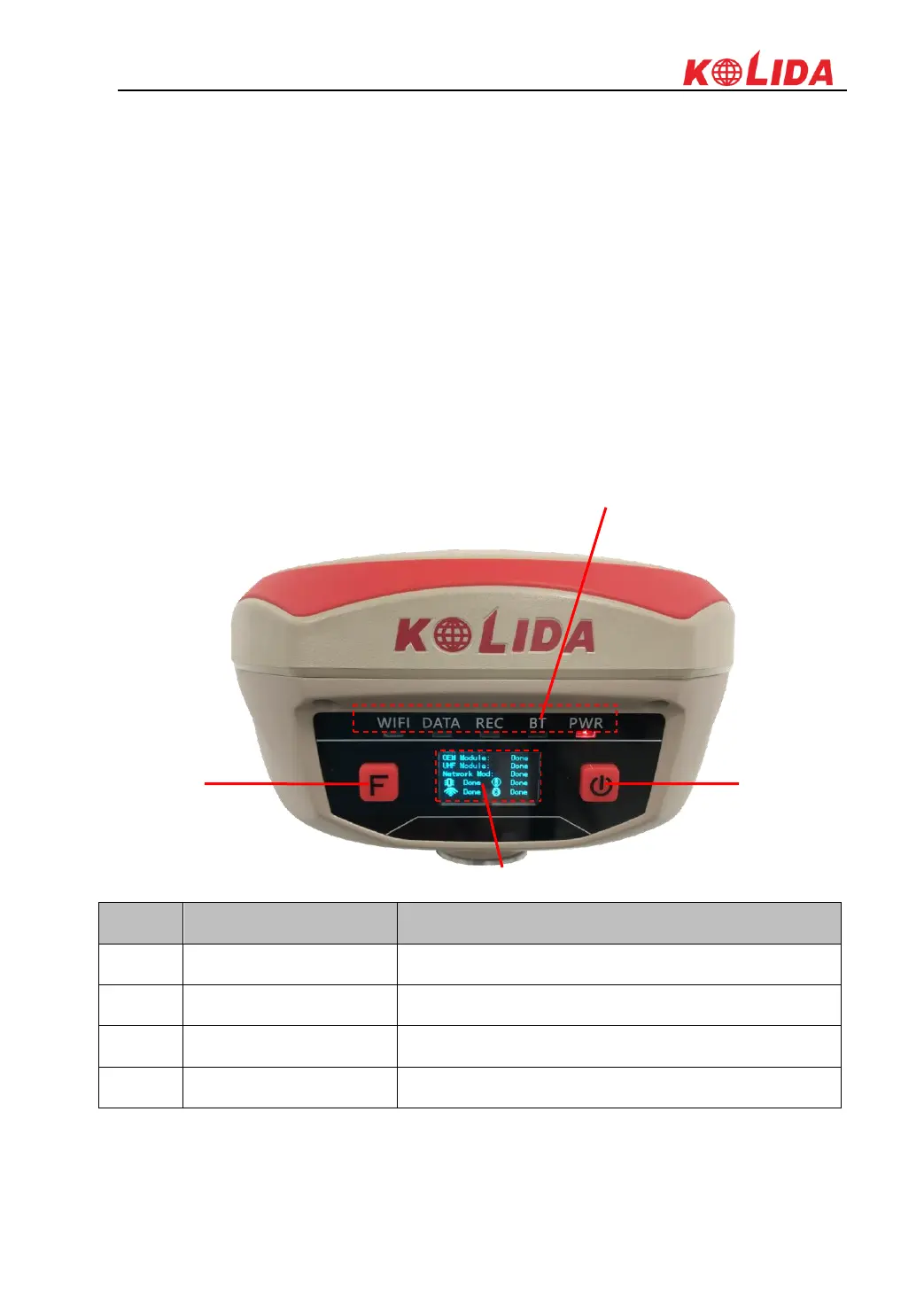

§2.1.1 Front Panel
Ref
Component
Description
①
Indicators
Indicates the working status for receiver
②
F Key
Page up/down, selection button
③
Power Key
Power on/off receiver, confirm button
④
OLED Display
Display the working mode and status of receiver
①
②
④
③
