Konica Minolta IP-423 - G Data Flow

Chapter 1 Overview
1-6
●

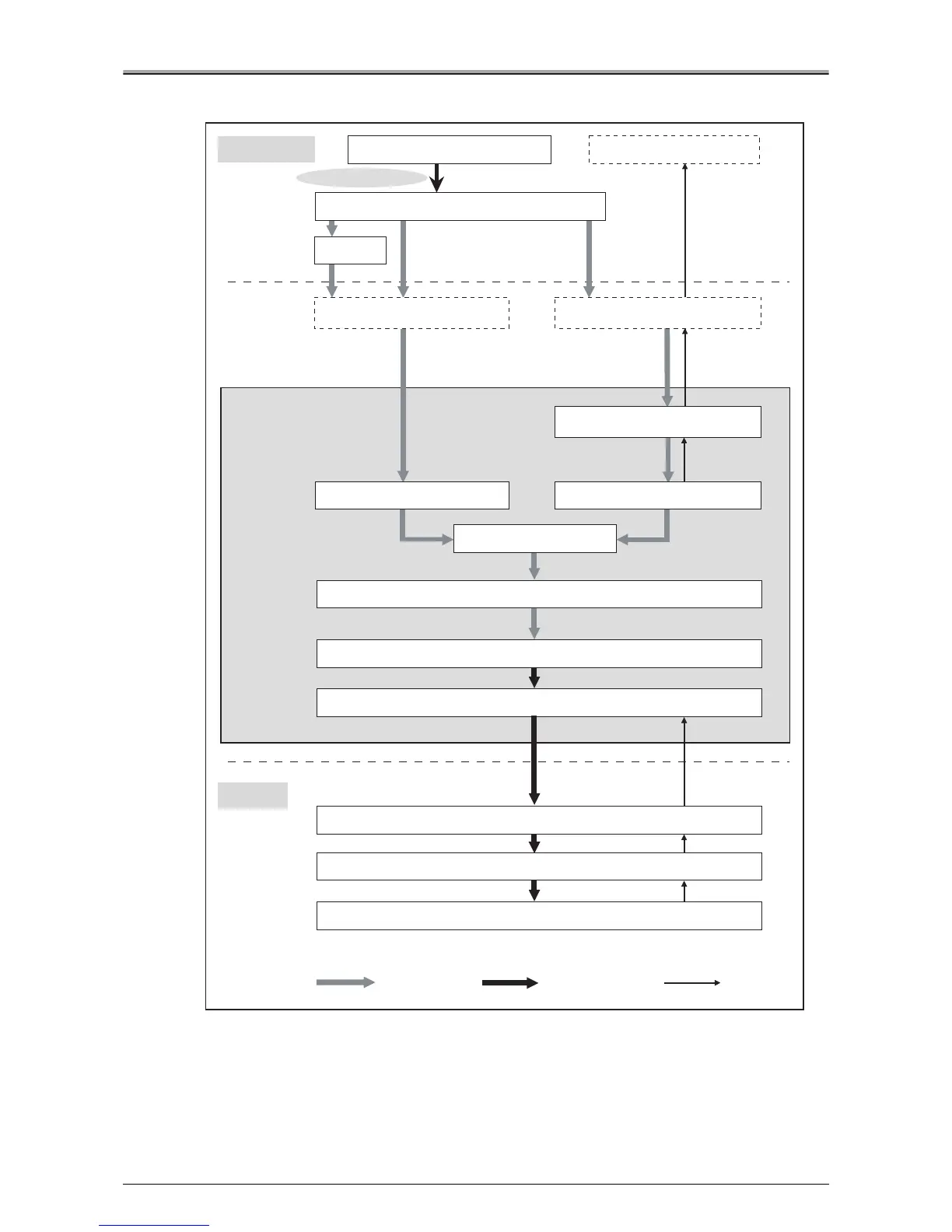

Data flow
Computer
Copier
Interface
Print Controller
Application
Parallel I/F
Input Buffer
Hard Disk (Option)
PDL Processing ( Rasterization ) / Interpreter
Page Memory
PCI bus
E-RDH memory
ISA bus
Printer Driver
Spooler
Print Commands
Browser HTML
Ethernet Network I/F
( TCP/IP, IPX/SPX, AppleTalk )
Network Controller
Parallel I/F
( IEEE 1284 )
Print Engine ( Print )
PDL command
Rasterized image data
Printer status
