Effects selection and routing Using effects in Programs
223
Effects selection and routing
The insert effects, master effects, and total effects have the
same structure in all modes, but the routing settings will
determine how the oscillators of a Program, timbres of a
Combination, or tracks of a Song will be sent to each insert
effect, master effect or total effect. In the pages that follow,
we will explain how you can make routing settings and
effect settings in each mode.
Using effects in Programs
Routing to IFX, outputs, and buses

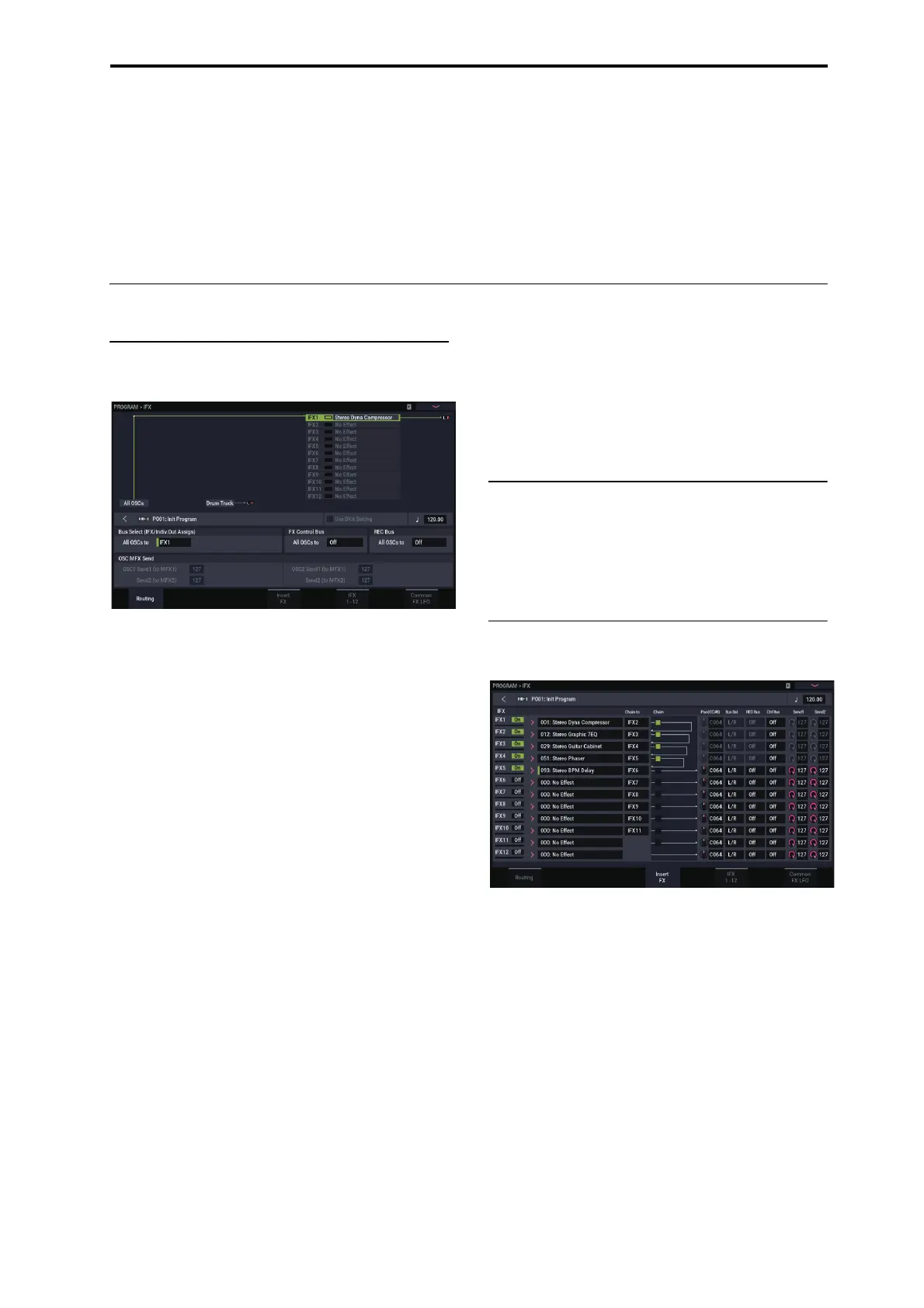

1. Go to the PROGRAM > IFX– Routing page.
2. Use Bus Select (IFX/Indiv. Out Assign) to specify the
bus to which the oscillator output will be sent. If you
want the oscillator output to be input to insert effect 1,
choose IFX1.
L/R:
The output will not be sent to the total effects. After
passing through the total effect, the sound will be sent to
Audio Outputs (main) L/MONO and R.
IFX1–12:
The output will be sent to insert effect IFX 1–
12.
1–4, 1/2–3/4:
The output will be sent to Audio Outputs
(individual) 1–4. It will not be sent to the insert effects,
the master effects, or the total effects.
Off:
The output will not be sent to Audio Outputs (main)
L/MONO, R, or to (individual) 1–4. Choose this if you
want the signal to be series-connected to the master
effects at the send levels specified by “Send 1 (MFX1)”
and “Send 2 (MFX2).”
3. OSC MFX Send specifies the send level from each
oscillator to the master effects.
This can be set only when “Bus Select (IFX/Indiv.Out
Assign)” is either L/R or Off.
If “Bus Select (IFX/Indiv.Out Assign)” is set to IFX1–12,
the send level to the master effects is set by
Send1
and
Send2
(Insert FX page) after the signal passes through
the insert effects.
4. “FX Control Bus (All OSCs to)” sends the oscillator 1
and 2 output to the FX Control bus. Use this if you
want the audio input to the effect to be controlled by a
different sound.
You can use the two FX Control buses to control effects
freely.
5. REC Bus sends the oscillator 1 and 2 output to the
REC buses.
In the Audio Input/Sampling page, you can set the
Sampling Setup
Source Bus
to a REC bus, and sample
the signal being sent to the REC bus. Normally you will
turn this Off, since you will usually set
Source Bus
to
L/R when sampling the output of oscillator 1 and 2.
Drum Track routing
The Drum Track routing is controlled separately from the
main Program. The options are very similar to those for the
main Program, as described above. The Drum Track routing
parameters are on the Program ARP/DRUM Scene Common
Setup Drum Program Bus page.
Insert effects
1. Go to the Insert FX page.
2. Choose the effect type that you want to use for each
insert effect IFX1–12.
When you press the popup button, all effects will be
displayed, organized into nine categories. Use the pages
located at the left to select a category, and select an effect
from that category on the LCD screen.
You can use the “Copy Insert Effect” page menu
command to copy effect settings from another program
etc. Also, you can use “Swap Insert Effect” to exchange
(for example) IFX1 and IFX12.
3. Press the On/Off button to turn on the insert effect.
Each time you press the button, the insert effect will be
switched on/off. When Off, the result will be the same as
when 000: No Effect is selected. The input sound will be
output without change.
