Front and rear panels TouchView user interface
7

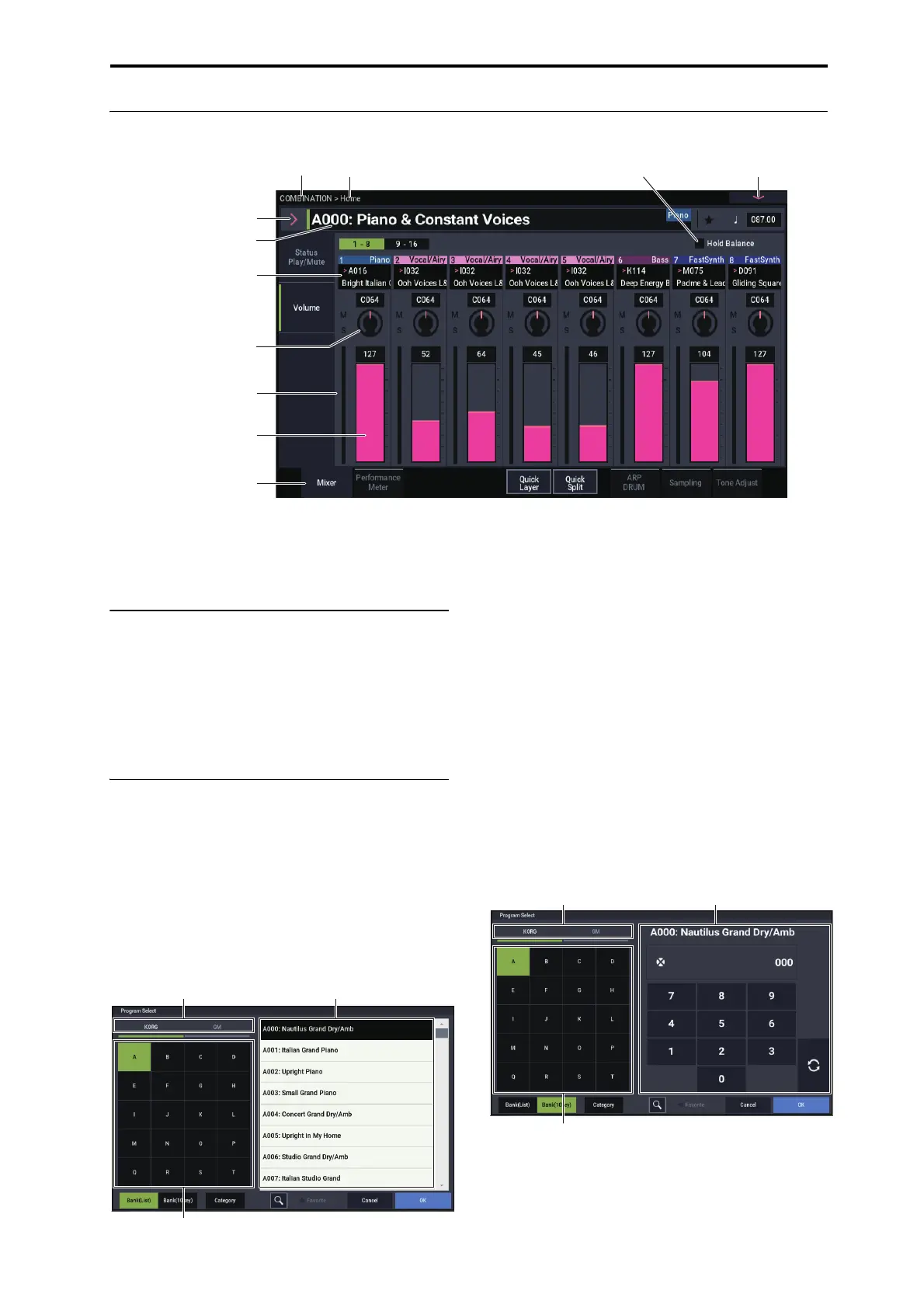

TouchView user interface
The NAUTILUS uses Korg’s TouchView graphical user
interface. By touching objects displayed in the LCD screen,
you can select pages, set parameter values, move sliders and
knobs, enter text, connect virtual patch cables, and more.
a: Current page
This is the current page for the selected mode.
To select a page, press the PAGE button, use the page
selector to choose a page group and then select the desired
page from the lower row of tabs.
The mode name > page group name is displayed on the top
left of the current page.
b: Popup button & menu
Press the desired value or item in the pop-up menu.
PROGRAM, COMBINATION selection
pop-up menu
This pop-up menu is used to select program and combination
sounds.
a: Bank (List)
The program and combination sounds are listed in banks.
a-1: Bank Select button
This button is used to select banks. This switches between
a-3: Sound list.
a-2: PROGRAM Bank Type button
Displays when selecting a PROGRAM sound.
This button switches between KORG format and GM format
bank lists.
a-3: Sound list
This is a list of sounds for the selected bank.
When using Program Select (in PROGRAM mode) or
Combination Select (in COMBINATION mode), the list
displays in a single column; and when using Timbre (Track)
Program Select and so on in SEQUENCER mode, this list
displays in two columns.
Note: When in bank (list) display mode, the sounds will not
switch until you select an item from the list.
b: Bank (10Key)
h: Page tab
a: Current page
d: Edit cell
b: Category popup button
b: Popup button
e: Knob
f: Slider
i: Page menu buttonCheck-boxMode name Page Group name
