Quick Layer/Split Quick Layer example: adding strings to a piano sound
37
Writing the results
1. When you’ve finished editing your layered sound,
press the Write Layered Combi button to save it as a
combination.

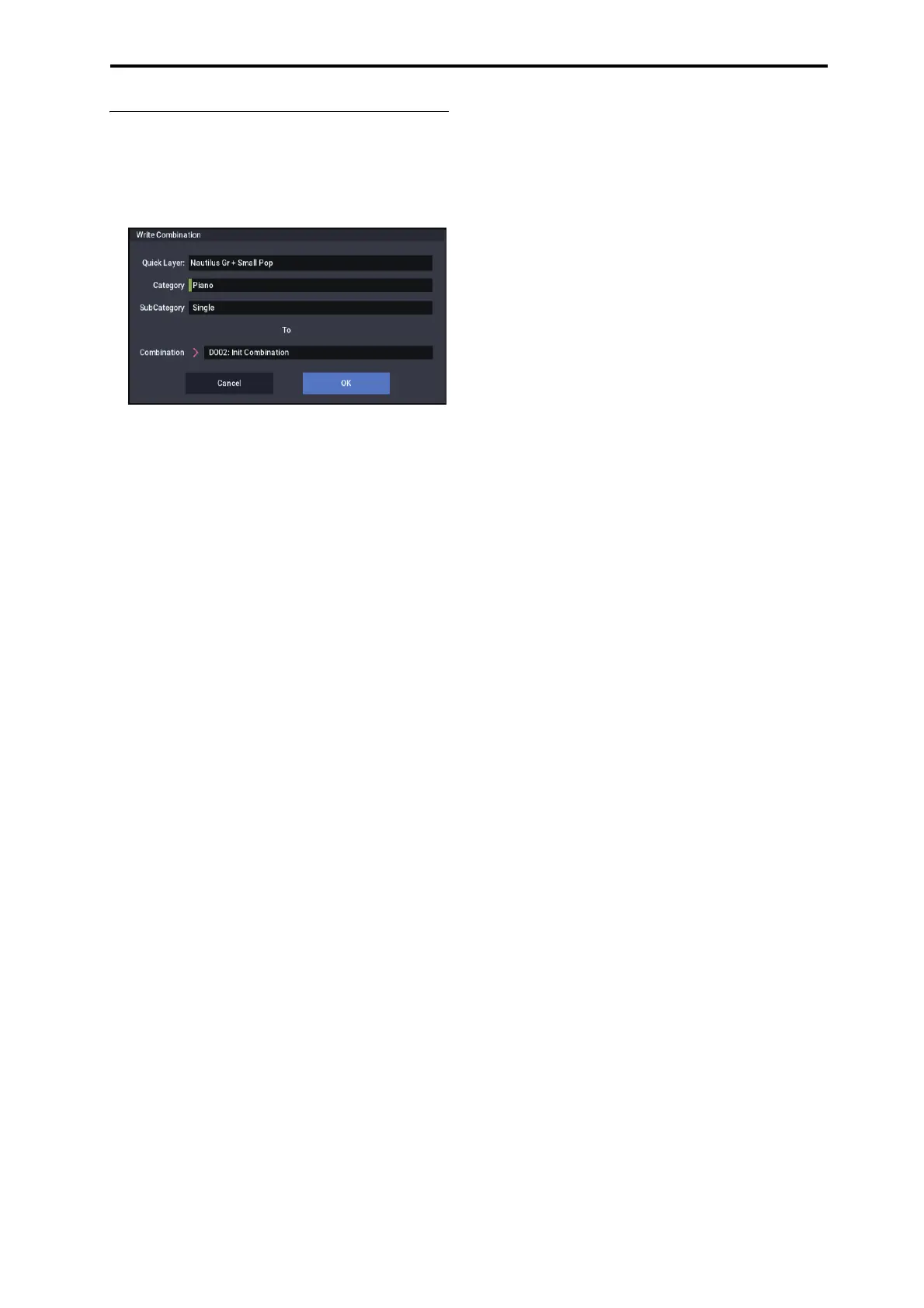

The Write Combination dialog box appears.
2. Press the popup button next to Combination to bring
up the save location dialog, and select a location to
save the edited Combination.
3. Set the name and category as desired.
The system automatically creates a new name based on
the names of the two original sounds. You can edit this
name as desired.
4. Press the OK button to write the Combination.
A confirmation message appears. Press the OK button
once again to complete the Write operation.You’ll enter
COMBINATION mode, with the new Combination
selected.
For more information, see “Writing Programs and
Combinations” on page 205.
If you press the Cancel button, the save operation is
canceled.

Korg NAUTILUS 88 Specifications

General

MIDI	In, Out, Thru
Keyboard	88-key RH3 (Real Weighted Hammer Action 3)
Sound Engines	9 sound engines
Effects	12 insert effects, 2 master effects
Display	8-inch (800 x 480 pixels) TouchView display
Sequencer	16-track MIDI sequencer
Sampling	Open Sampling System
User Memory	Approx. 60 GB SSD
External Storage	USB Flash Drive
Controllers	Joystick
Audio Outputs	L/MONO, R
Audio Inputs	L/MONO, R (1/4" jacks)
USB	Type A
Pedal Inputs	Damper, Assignable
Weight	23.1 kg / 50.93 lbs
Dimensions	1, 437 x 387 x 139 mm / 56.57" x 15.24" x 5.47"
Power Supply	AC adapter (included)
