Effect
Parameters
4
Combination Effects: Serial
Effects 38 and 39 use mono input–stereo output chorus/flangers in series with stereo delays.
38: Chorus–Delay
39: Flanger–Delay
For effects 38 and 39, dynamic modulation (16C) can be used to control the DRY:EFF balance.
Chorus, Flanger
LCD Parameter Range Description
17A
Delay Time (Cho.DT) 0–50 ms Chorus/Flanger delay time
Feedback (FB) –99…+99%
The amount of effected signal that is fed back into the effect.
Minus values invert the feedback signal phase
17B
Mod Depth (Cho.Mod) 0–99 Modulation depth
Mod Speed (M.SP) 1–99 Modulation speed
Delay
LCD Parameter Range Description
17C
Delay Time (Dly.DT) 0–450 ms Delay time (set in 2 ms steps)
Delay Feedback (FB) –99…+99%
The amount of delay signal that is fed back into the effect.
Minus values invert the feedback signal phase
Left
Chorus
Right
Mix
Mix
Chorus
Mod
Delay
Delay
Feedback
Feedback
Feedback
Feedback

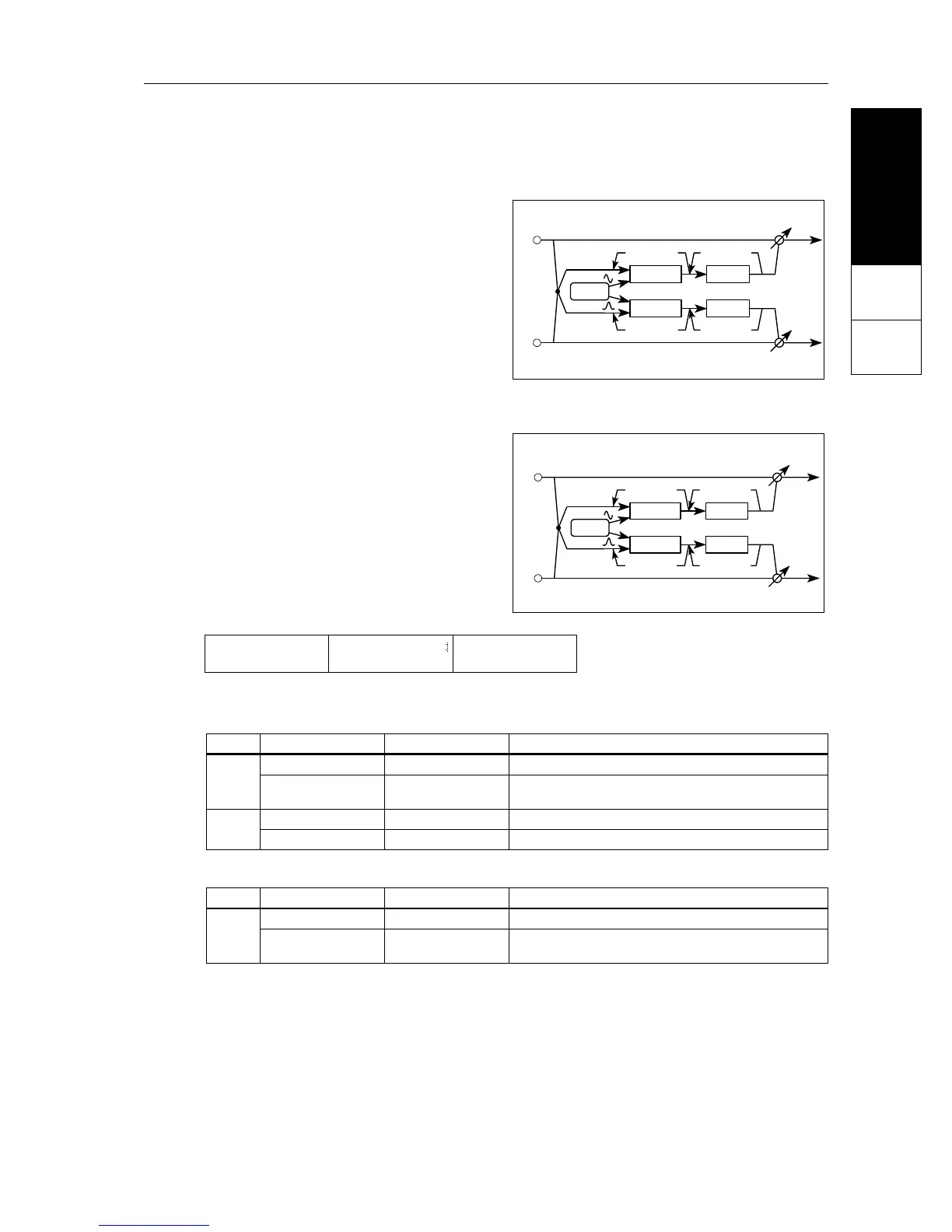

This effect consists of a chorus and delay in
series. The input signals are summed, then
fed to two chorus units. The modulation
signals fed to each chorus are 90 degrees out
of phase with each other. Feedback
parameters are available for both chorus and
delay.
This effect consists of a flanger and delay in
series. The input signals are summed, then
fed to two flanger units. The modulation
signals fed to each flanger are 90 degrees out
of phase with each other. Feedback
parameters are available for both flanger and
delay.
Left
Flanger
Right
Mix
Mix
Flanger
Mod
Delay
Delay
Feedback
Feedback
Feedback
Feedback
17A Chor-Dly ø
Cho.DT11ms FB+10
17A
17B
17C Chor-Dly
Dly.DT110 FB-10
17C
17B Chor-Dly ø
Cho.Mod50 M.SP30
ø
