Combined Effects: Parallel
Effects 40 to 47 are arranged in parallel. This means that two signals can be fed independently to
two separate effects. For Example, with effect 40 (Delay/Hall Reverb), the left channel feeds a
delay, while the right channel feeds a hall reverb.
For details about the individual effects used in these combined effects, refer to the descriptions for
effects 1 to 34.
Mono Delay/Reverb
40: Delay/Hall Reverb
41: Delay/Room Reverb
Delay
Hall
Delay
Flanger
PAN 3
PAN 4
L/MONO
R
A
B
C
D
FX 1
FX 2

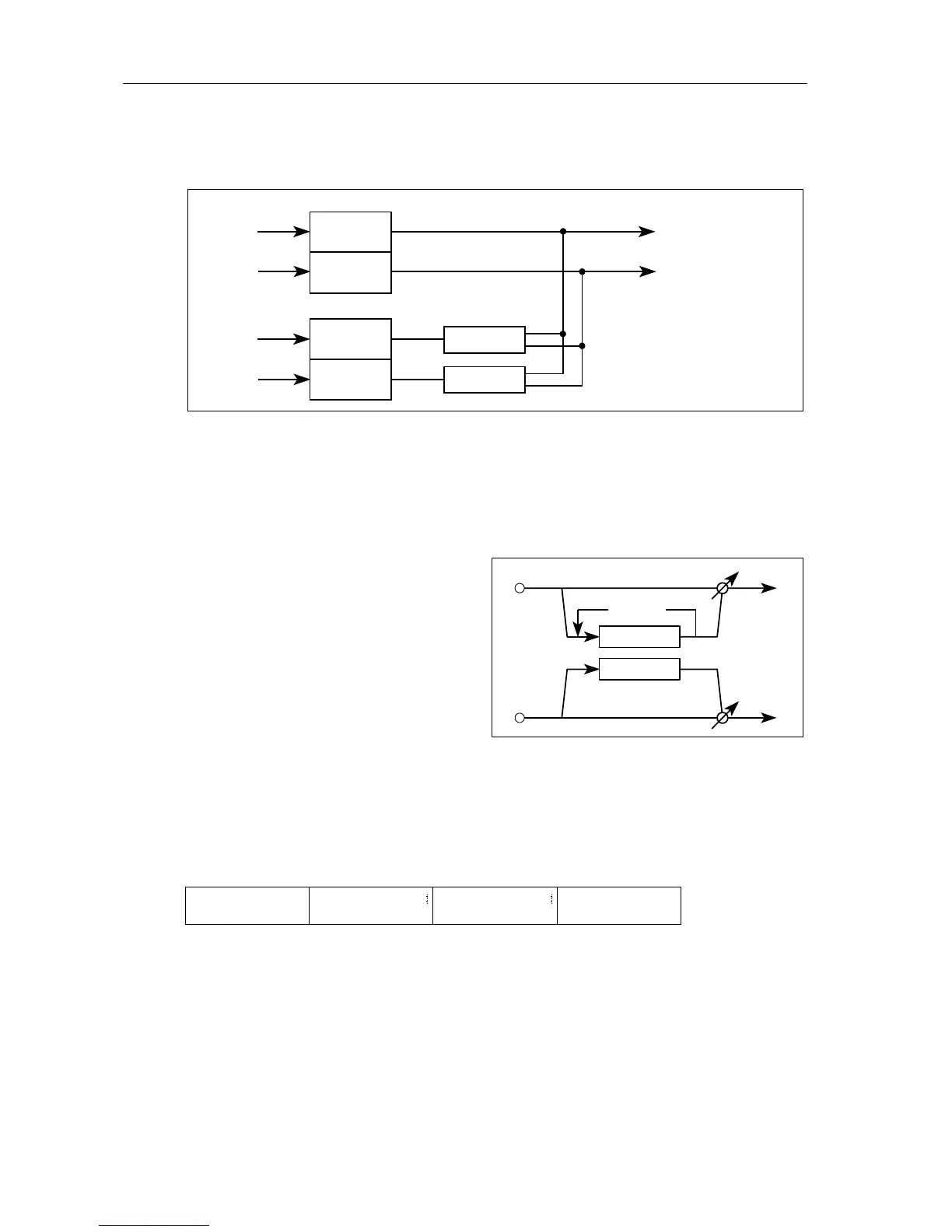

This effect consists of two independent
effects: delay on the left channel and hall
type reverb on the right.
Left
Delay
Right
Mix
Mix
Reverb
Feedback
This effect consists of two independent
effects: delay on the left channel and room
type reverb on the right.
17A Delay(L) ø
Time250ms FB+50
17A
17B
17D Hall(R)
P.Dly055ms
17D17C
17C Hall(R) ø
Time3.5s H.Dmp40
17B Delay(L) ø
H.Dmp10
ø
