Effect
Parameters
4
Mono Delay/Distortion, Overdrive
44: Delay/Distortion
45: Delay/Overdrive
Mono Delay/Rotary
47: Delay/Rotary Speaker
Delay
LCD Parameter Range Description
17A
Delay Time (Time) 0–500 ms Delay time
Feedback (FB) –99…+99%
The amount of delay signal that is fed back into the effect.
Minus values invert the feedback signal phase

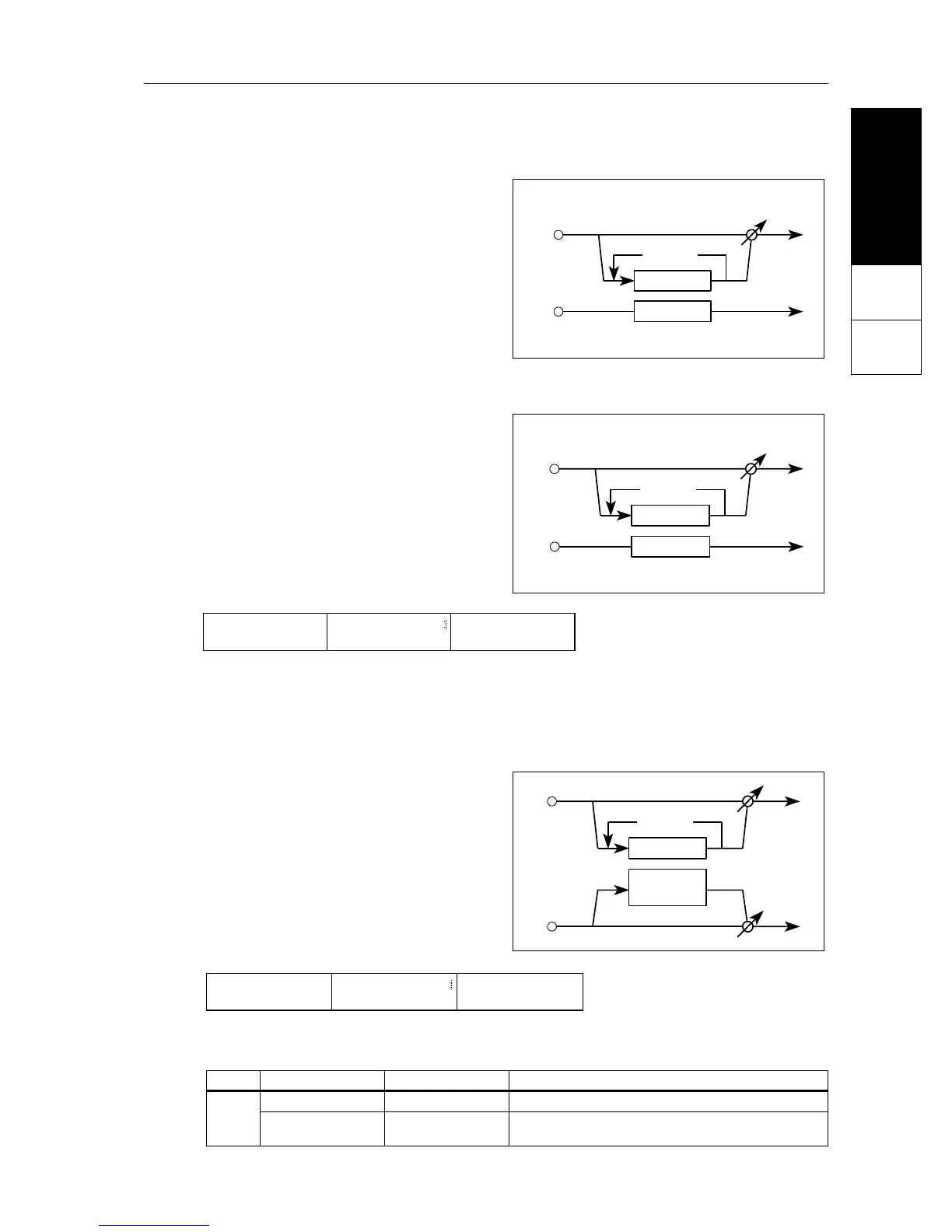

This effect consists of two effects: delay on
the left channel and distortion on the right.
Left
Delay
Mix
Right
Feedback
Distortion
This effect consists of two effects: delay on
the left channel and overdrive on the right.
Left
Delay
Mix
Right
Feedback
Overdrive
17A Delay(L) ø
Time250ms FB+40
17A
17B
17C
17C Dist(R)
H.Spot50 Level05
17B Dist(R) ø
Drive=111 Res=75
ø
This effect consists of two effects: delay on
the left channel and rotary speaker on the
right.
Left
Delay
Right
Mix
Mix
Rotary
Speaker
Feedback
17A Delay(L) ø
Time250ms FB+40
17A
17B
17C
17C Rot.SP(R)
Speed S=25 F=70
17B Rot.SP(L) ø
Acceleration=04
ø
