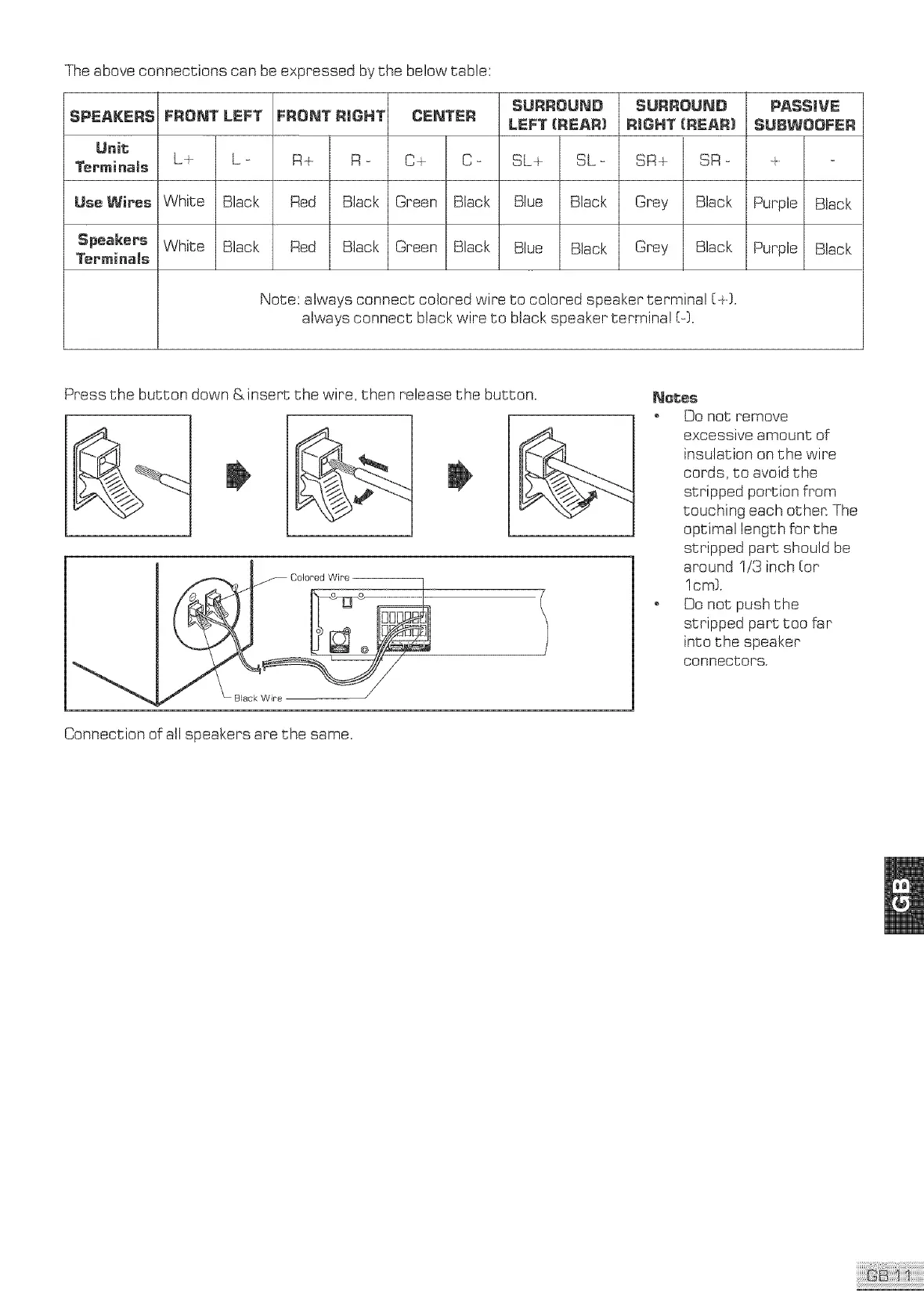

The above connections can be expressed by the below table:
SPEAKERS
Unit
Terminals
Use Wires
Speakers
Terminals
FRONT LEFT
L+ L-
White Black
White Black
FRONT RIGHT
R+ R-
Red Black
Red Black
CENTER
C_ C_
Green Black
Green Black
SURROUND
LEFT CREARJ
SL+ SL_
Blue Black
Btue Black
SURROUND
RIGHT (REAR_
SR+ SR
Grey Black
Grey Black
Note: always connect colored wire to colored speaker terminal [_}.
always connect black wire to black speaker terminal [-}.
PASSmVE
SUBWOOFER
Purple Black
Purple Black
Press the button down &insert the wire, then release the button.
Colored Wire
Black Wire
Netes
o Do net remove
excessive amount of
insulation on the wipe
cords, to avoid the
stripped portion from
touching each other. The
optimal length for the
stripped part should be
around 1/3 inch [or
lcm].
o Do not push the
stripped part too far
into the speaker
connectors.
Connection of all speakers are the same.
